Universal Thermal Protection Switch For Blender / Electric Fan Heaters

China Universal Thermal Protection Switch For Blender / Electric Fan Heaters supplier

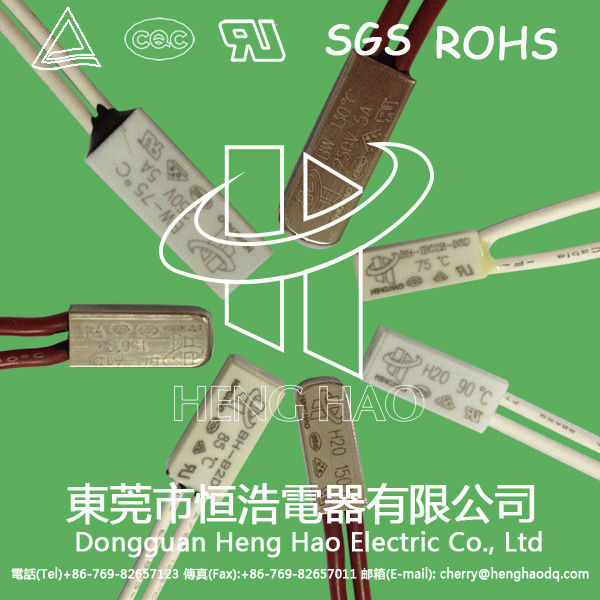

Large Image :  Universal Thermal Protection Switch For Blender / Electric Fan Heaters

Product Details:

Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: BW9700

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: US$0.18-0.3 per.pc
Packaging Details: 1000pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000000 PCS PER MONTH
Contact Now
Detailed Product Description

BW thermal cutout switch for blender,BW thermal protector for electric fan heaters





BW series thermostat / KSD9700 thermal protector / BW9700 temperature protector



1.       BW series thermostat’s Principle and structure
BW serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

2.       BW series thermal protector’s Specification

2.1. Switch type: normally closed, normally opened.

2.2. Operating Voltage / Current: AC250V / 5A; AC125V / 8A

2.3. Operating Temperature: 40~150℃ (one step for every 5°C)

2.4. Standard Tolerance: +-3°C / +-5°C / +-7°C

2.5. Reset temperature: operating temperature decrease by 15-45°C

2.6. Contact Closure resistance: ≤50mΩ

2.7. Insulation resistance: ≥100mΩ

2.8. Electric strength: AC1500V/1min free from phenomena of break down and flashover.

2.9. Service life: 10000 times

3.       BW series thermal protector’s Dimension

Model

Length

width

High

BW9700

20

7.3

3.8



4.       BW series temperature protector’s Application
BW series is applicable to chargeable battery, ballast, massager, motor, transformer, electric tools, heat electric appliance and instrument etc.


Code

Open temperature

Reset temperature

Code

Open Temperature

Reset Temperature

045

45+-4.5℃

≥33℃

105

105+-5℃

75+-15℃

050

50+-5℃

≥35℃

110

110+-5℃

75+-15℃

055

55+-5℃

42+-6℃

115

115+-5℃

80+-15℃

060

60+-5℃

45+-8℃

120

120+-5℃

85+-15℃

065

65+-5℃

48+-10℃

125

125+-5℃

85+-15℃

070

70+-5℃

50+-12℃

130

130+-5℃

90+-15℃

075

75+-5℃

53+-14℃

135

135+-5℃

95+-15℃

080

80+-5℃

55+-15℃

140

140+-5℃

100+-15℃

085

85+-5℃

60+-15℃

145

145+-5℃

100+-15℃

090

90+-5℃

65+-15℃

150

150+-5℃

105+-15℃

095

95+-5℃

70+-15℃

155

155+-5℃

110+-15℃

100

100+-5℃

70+-15℃








The product UL,CQC,VDE and RoHS certification approval.
