Automatically Reset Mini Thermal Switch For Electric Heating Appliances

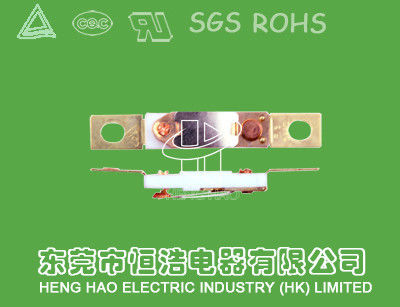

RS-03 ceramic thermal switch

1. RS-03 thermal protector’s Principle and structure

Quickly respond to the variation of temperature, and has the function of automatic reset. No current flows through bimetal so the influence of self-heating effect is avoided and it leads to a long service life with little change in temperature. Environmental friendly high-power sliver contact is adopted, being accord with the demands of safety approval for export.

1. RS-03 thermostat’s Specification
   1. Electrical rating and current: AC-250V 10A; AC-125V 16A
   2. Normally Closed, automatically reset
   3. Operating temperature range: 40-160°C (one step for every 5°C )
   4. Temperature tolerance: +-3°C, +-5°C
   5. Reset Temperature range: operating temperature decrease by 15~45°C
   6. Contact Closure resistance:≤50mΩ
   7. Insulation resistance:≥100mΩ
   8. Life cycles: 10000 times
2. RS-03 thermal protector’s Application

AMT thermostat is applicable to the thermal radiation control on various electricheating appliance including electric Hair Dryer, Electric Fan Heaters, Popcorn Machines, Electric Ovens, Dish Dryers, Electric heaters, dehumidifiers, stewpots etc.

1. rs-03 temperature switch’s Product Drawing
