SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A

SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A
SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A

Large Image :  SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A

Product Details:
Place of Origin: CHINA
Brand Name: SEKI
Certification: UL VED CQC KC
Model Number: ST-22
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: 1000pcs per carton
Payment Terms: TT FOB SZ, T/T
Supply Ability: 10000000pcs per month

SEKI ST-22 Bimetallic Thermal Protector Switch 250V 5A

Description
Product Name: ST-22 Bimetal Thermostat, Bi-metal SEKI ST-12 ST-22 Thermal Switch Protector, Thermal Protector, Thermostat/Thermal Protector Tolerance: Indicated Temp. ± 5℃, +/-5 C For Open Action(Optional +/-3 C Or Less), +/-5C, ±5℃
Part Number: ST-22 Life Time: 10000 Times
High Light:

Bimetallic Thermal Protector Switch

,

SEKI ST-22 Thermal Protector Switch

,

Bimetal Thermal Switch 250V 5A

SEKI ST-22 thermal protector switch, bimetallic thermostat fuse 250V 5A 50-150C UL CQC VED KC

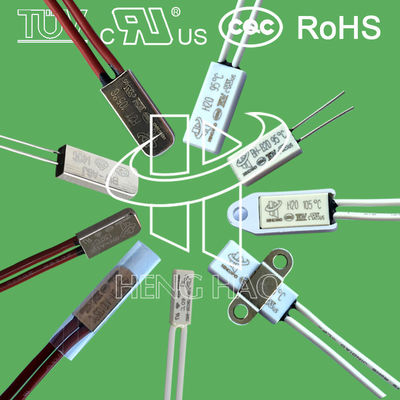

ST-22 Bimetal Thermostat / ST-22 thermal protector

SEKI's bimetal thermostats are overheat protection devices for electric appliances and they are reusable parts that are reset when equipment cools. If the fault still exists, the motor protectors continue to automatically protect the equipment.

There're two models in our bimetal thermostat, ST-12 & ST-22. ST-12 is used for overheat protection for hair dryer, electric fan heaters, popcorn machines, electric ovens, dish dryers and etc. ST-22 bimetal thermostat is used for overheat protection for electric motors, fluorescent ballasts, battery chargers, transformers, solenoids, heating pads, OA-machines and etc.

Motor Protector: Snap Action, Automatic Reset Bimetals, Moisture-Proof, Dust-Proof, Superior Heat Response
ST-22 motor protector features snap action, automatic reset, moisture/dust proof, and superior heat response and high grade thermoplastic insulation, which can be used for overheat protection of Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating Pads, OA-machines and etc.

Application
Overheat Protection for Electric Motors, Fluorescent Ballasts, Battery Chargers, Transformers, Solenoids, Heating pads, OA-Machines ETC.
Temperature Setting range (at no load): 70°C ~ 150°C
Tolerance ±5°C
ON-OFF Differential Temp (general): 30 ± 15K
Heat Endurance: Open temp. +50°C/continuity, 200°C/1 min.
Life test (Resistive Load): 8A/125V 10,000 cycles, 5A/250V 10,000 cycles
Contact Capacity: Min. Current 50mA/continuity, Max. Current 30A/5 cycles
Application view
