250V 10A Rated Bimetal Temperature Switch

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AMH thermostat’s Principle and structure

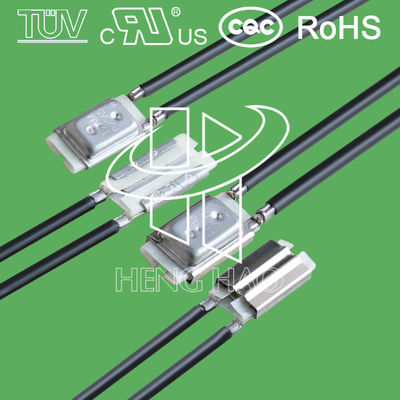

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

17AM thermal protector’s Specification

1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

3. Operating temperature range: 50-180°C

4. Temperature tolerance: ±2°C±3°C±5°C

5. Reset temperature: 10~45 degrees in off temperature decline.

6. Working times: Over 10000 times

7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

8. Trip off temperature in °C Code

9.Trip off temperature in °C Code

10. Product Drawing

17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commutator for fluorescent lamp, tansformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

17AM thermostat’s A/°C and A/T Graph
