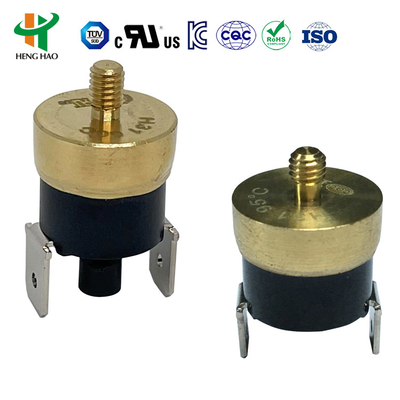

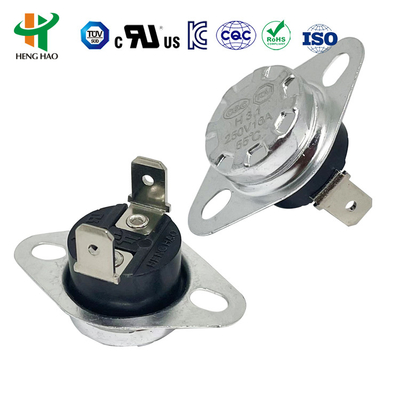

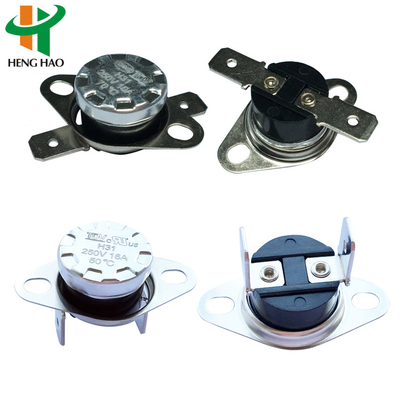

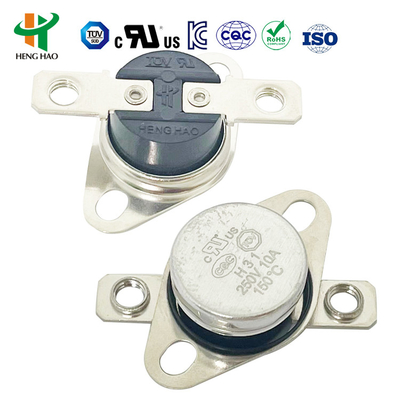

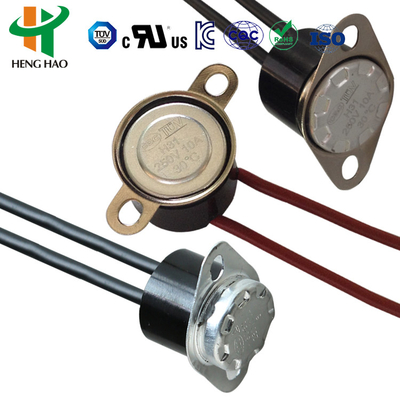

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan

Large Image :  KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000 PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

Automobile Cooling Fan KSD301 Bimetal Thermostat

,

Automobile Cooling Fan Temperature Controlled Thermostat

KSD301 Bimetal Thermostat for Automobile Cooling Fan
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan 0
Product Overview
The KSD301 bimetal thermostat is a temperature-controlled switch designed for automobile cooling fans and various household appliances. This thermal protector features reliable snap action, precise temperature control, and long service life.
Operating Principle
The thermostat utilizes a bimetal disc that snaps into action when sensing temperature changes. This movement activates internal contacts to open or close the electrical circuit.
Technical Specifications
  • Electrical Rating: AC 125V max 15A; AC250V 5A/10A/15A max 16A
  • Action Temperature Range: -10°C to 300°C
  • Temperature Differential: 10-25°C (customizable)
  • Temperature Deviation: ±3°C/±5°C/±10°C (customizable)
  • Circuit Resistance: ≤50mΩ (initial value)
  • Insulation Resistance: ≥100mΩ (DC500V Normal State)
  • Dielectric Strength: AC50Hz 1500V/min (no breakdown)
  • Life Cycle: ≥100,000 operations
  • Contact Configuration: Normally closed or open
  • Mounting Options: Movable or fixed bracket
  • Terminal Types: 187 series (4.8×0.5mm, 4.8×0.8mm) or 250 series (6.3×0.8mm)
  • Body Material: Plastic or ceramic
  • Sensor Face: Aluminum cap or copper head
Reset Types
Manual Reset: Requires button press to reconnect circuit after temperature drops approximately 20°C below trip point.
Auto Reset: Automatically reconnects circuit when temperature drops to reset point.
Standard Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
Applications
This thermostat is widely used in:
  • Automobile cooling systems
  • Coffee makers
  • Toasters
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
  • Various heating appliances
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and Temperature Range -10~300°C for Automobile Cooling Fan 1
Certifications: UL, CQC, VDE, RoHS compliant
