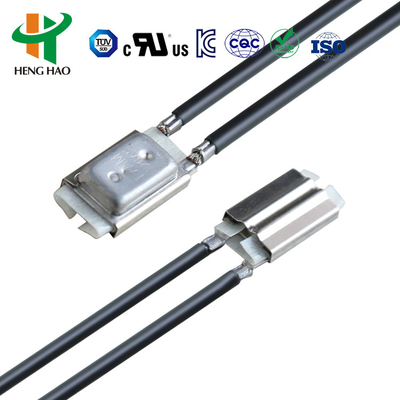

17AM Thermal Protector Thermostat with 50-150℃ Range Normally Closed or Open Auto or Manual Reset

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector - Compatible with KLIXON 17AM thermal protector

The 17AM is an excess-current thermal protector with compact design, featuring quick and accurate action. We can rivet different types of leads according to customers' requirements.

17AM XXX A/B 5 A,B,C,D...Z

• 17AMH: The number of product series
• XXX: Trip off temperature in °C Code

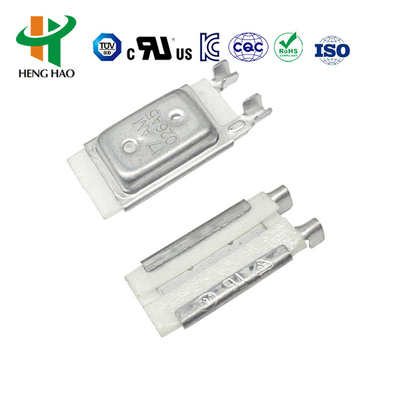

• A/B: A: Terminals in the same direction / B: Terminals in the opposite direction
• 5: OFF Temperature Tolerance Code

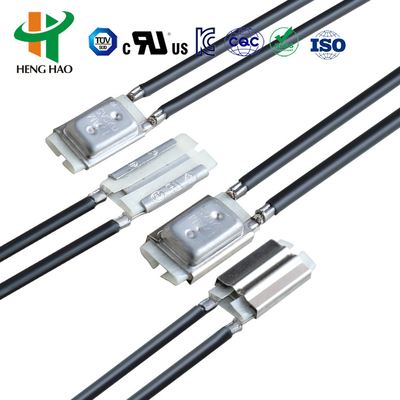

• A,B,C,D...Z: Different type of connecting wire

The 17AM thermal protector is suitable for various applications including:

• Motors
• Commentator for fluorescent lamp
• Transformers
• Laminator
• Lamps and lighting
• Cover sealing machine
• Various household appliances

The product has UL, CQC, VDE and RoHS certification approval.

Temperature sensing components consist of bimetallic strip. When the temperature reaches the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button.

Note: This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button (4~6 N force recommended). To ensure normal function, the distance between the reset button and the close cover should not be less than 20.4mm.
