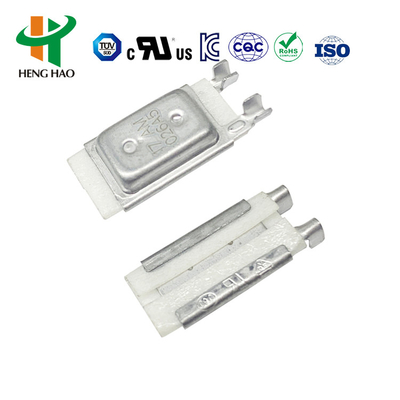

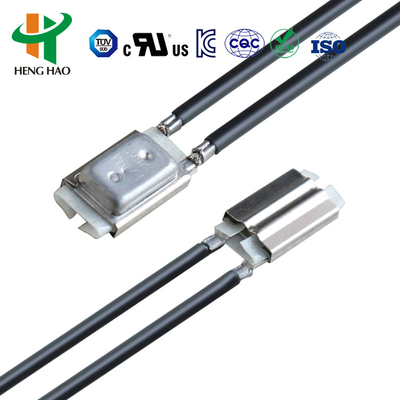

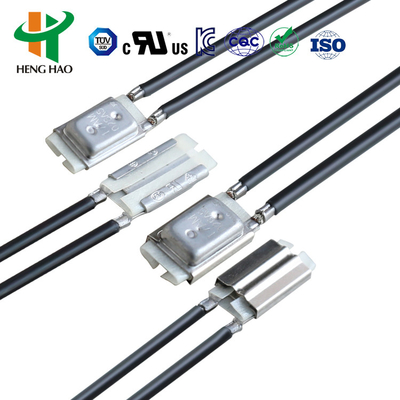

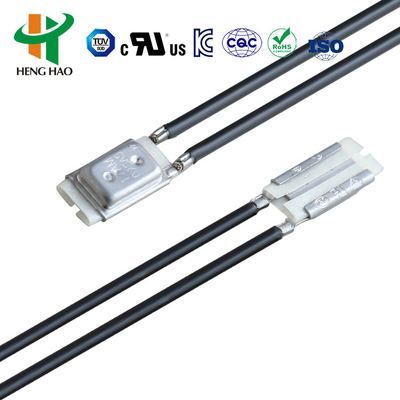

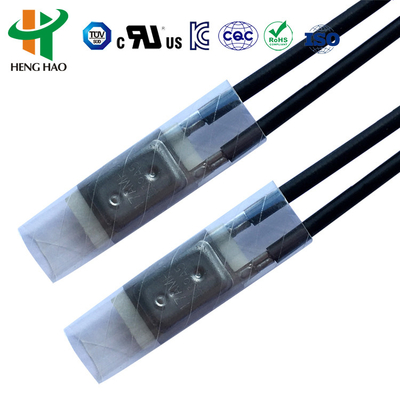

17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset

17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset
17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset
17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset

Large Image :  17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: 17AMH
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.35-0.5 PER PC
Packaging Details: 1000 pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

17AM035A5 Thermal Protector

,

8AM Thermal Protector

,

5AP Thermal Protector

17AM026A5 Thermal Protector 5AP 8AM Bimetallic Thermostat 6AP 17AM035A5 Thermostat

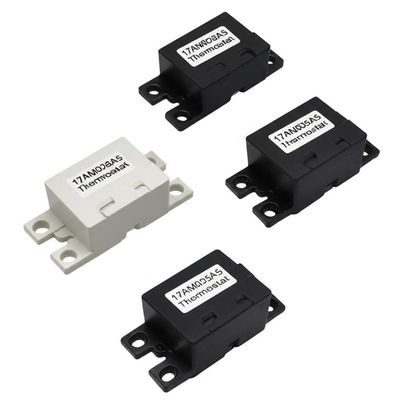

17AM Bimetallic Thermostat Thermal Protector with 0-250℃ Range Normally Closed or Open Auto Manual Reset 0
Product Overview

The 17AMH thermal protector is a compact, bimetallic thermostat designed for precise temperature control in various electrical applications. It serves as a direct replacement for KLIXON 17AM thermal protectors.

Key Features
  • Compact design with quick, accurate action
  • Customizable lead configurations available
  • Wide operating temperature range: 50-180°C
  • High contact life cycles (10,000+ at rated loads)
  • Multiple certifications including UL, CQC, VDE and RoHS
Technical Specifications
Electrical Ratings: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles
AC-125V 5A: >100,000 cycles
Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, or ±5°C
Reset Temperature: 10-45°C below trip temperature
Temperature Code System
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Applications

The 17AMH thermal protector is suitable for various applications including:

  • Electric motors
  • Fluorescent lamp commutators
  • Transformers
  • Laminators
  • Lighting systems
  • Cover sealing machines
  • Household appliances
Product Codes

The product code system follows this format: 17AMH XXX A/B 5 A,B,C,D...Z

  • 17AMH: Product series identifier
  • XXX: Trip temperature in °C code
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A,B,C,D...Z: Connecting wire type
Certifications

This product has UL, CQC, VDE and RoHS certification approval.
