Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range

Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range
Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range
Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range

Large Image :  Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000 PCS PER MONTH
Contact Now

Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

KSD303 bimetallic thermostat

,

Temperature Controlled bimetallic thermostat

Bimetallic Thermostat KSD301 Temperature Controller
Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range 0

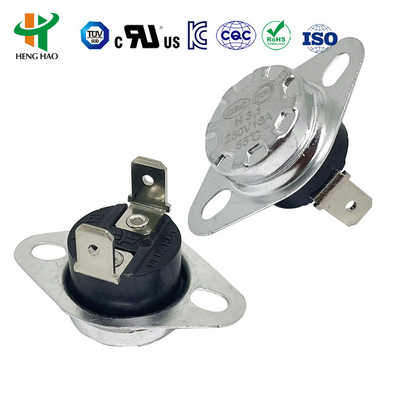

KSD301 Thermostat / Bimetal Thermal Protector
Principle and Structure
The KSD series thermostat operates on the principle of bimetallic discs that snap into action with temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and low radio interference.
Specifications
  • Electrical Rating: AC 125V max 15A; AC250V 5A 10A 15A max 16A
  • Action Temperature: -10~300°C
  • Recovery/Action Temp Difference: 10-25°C (customizable)
  • Temperature Deviation: ±3/±5/±10°C (customizable)
  • Circuit Resistance: ≤50mΩ (initial value)
  • Insulation Resistance: ≥100mΩ (DC500V Normal State)
  • Dielectric Strength: AC50Hz 1500V/min (no breakdown)
  • Life Cycle: ≥100,000 operations
  • Contact Configuration: Normally closed or open

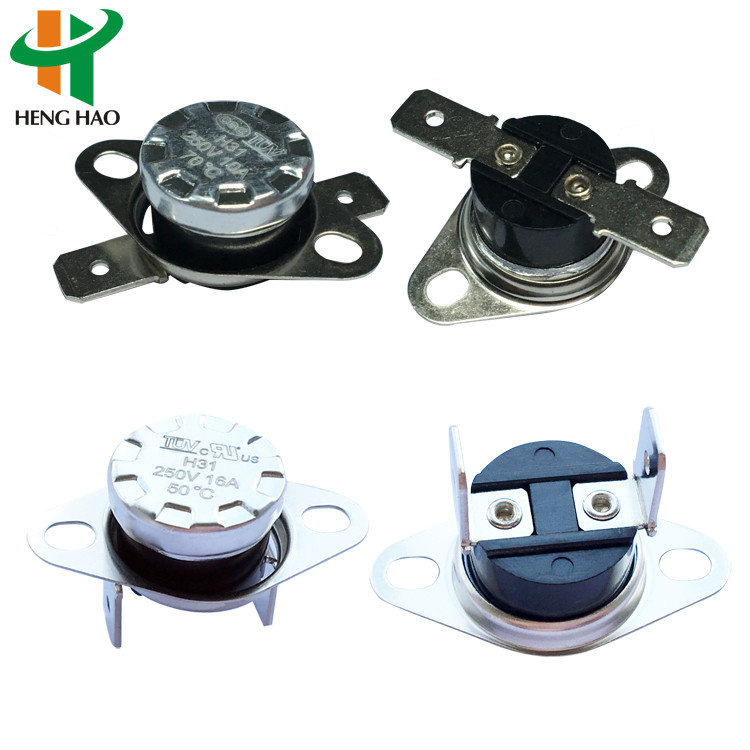

  • Mounting Options: Movable or fixed bracket

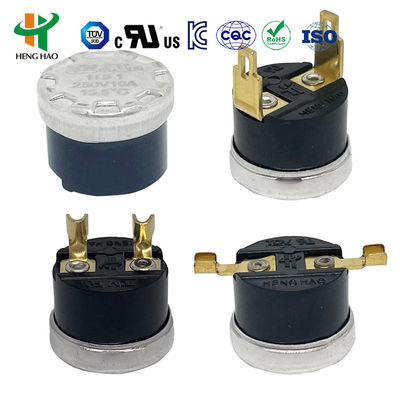

  • Terminal Types: 187 series (4.8×0.5mm/4.8×0.8mm) or 250 series (6.3×0.8mm)
  • Terminal Angle: 0-90° bend optional
  • Body Material: Plastic or ceramic

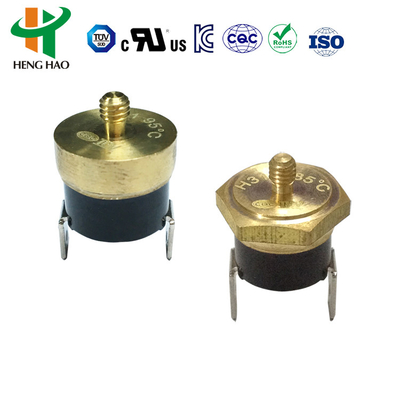

  • Sensor Face: Aluminum cap or copper head
Reset Types
Manual Reset: Requires button press to reconnect circuit after temperature drops ~20°C below trip point (4-6N force recommended).
Auto Reset: Automatically reconnects when temperature drops to reset point.
Applications
Ideal for temperature control in household appliances including coffee makers, toasters, laminators, electric kettles, steam irons, microwave ovens, water dispensers, and more.
Standard Temperature Settings (Auto Reset)
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20°C±5°C5°C±5°C95°C±5°C80°C±5°C205°C±5°C175°C±10°C
-15°C±5°C5°C±5°C100°C±5°C80°C±10°C210°C±5°C180°C±10°C
-10°C±5°C5°C±5°C105°C±5°C85°C±10°C215°C±5°C185°C±10°C
0°C±5°C-10°C±5°C110°C±5°C90°C±10°C220°C±5°C190°C±10°C
5°C±5°C-5°C±5°C115°C±5°C95°C±10°C225°C±5°C195°C±10°C
10°C±5°C0°C±5°C120°C±5°C100°C±10°C230°C±5°C200°C±10°C
15°C±5°C5°C±5°C125°C±5°C105°C±10°C235°C±5°C205°C±10°C
20°C±5°C5°C±5°C130°C±5°C110°C±10°C240°C±5°C210°C±10°C
25°C±5°C10°C±5°C135°C±5°C115°C±10°C245°C±5°C215°C±10°C
30°C±5°C15°C±5°C140°C±5°C120°C±10°C250°C±5°C220°C±10°C
Certifications: UL, CQC, VDE, RoHS compliant
Bimetallic Thermostat KSD301 Temperature Controller with 100000 Cycles 250V 16A and -10~300°C Action Range 1
