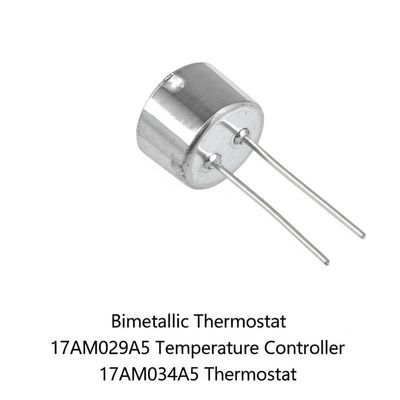

17AM Bimetallic Thermostat with 0-250℃ Temperature Range Normally Closed or Open Compact Design for Motor and Household Appliances

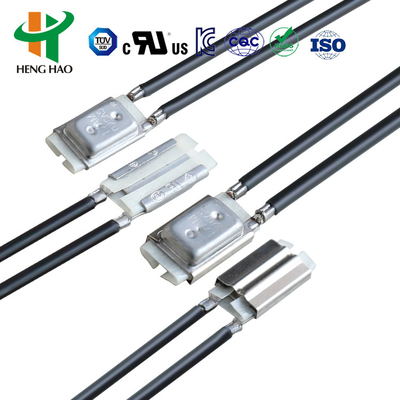

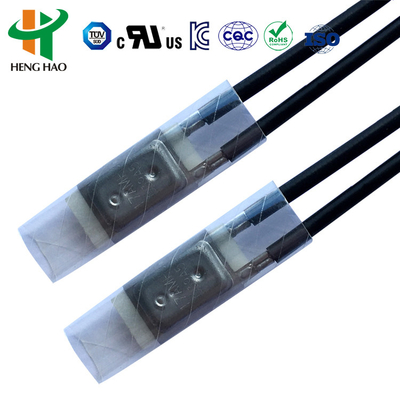

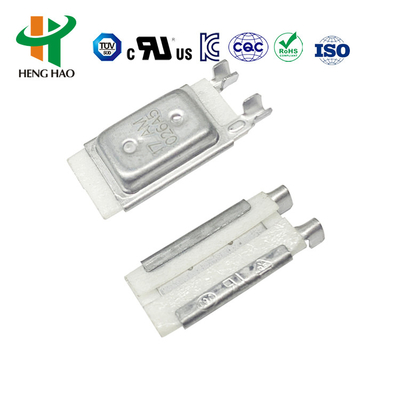

The 17AM series is an excess-current thermal protector with compact design, featuring quick and accurate action. Different types of leads can be riveted according to customer requirements.

• Compact and reliable bimetallic thermostat design
• Quick and accurate temperature response
• Customizable lead configurations
• High cycle life for extended durability

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact Life Cycles:
  • AC-125V 15A, AC-250V 10A: >10,000 cycles
  • AC-125V 5A: >100,000 cycles
• Operating Temperature Range: 50-180°C
• Temperature Tolerance: ±2°C, ±3°C, ±5°C
• Reset Temperature: 10-45°C below trip temperature
• Working Times: Over 10,000 operations

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip temperature in °C code
• A/B: Terminal direction (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type

The 17AM thermal protector is suitable for various applications including:

• Motors
• Fluorescent lamp ballasts
• Transformers
• Laminators
• Lighting systems
• Cover sealing machines
• Household appliances

This product has UL, CQC, VDE and RoHS certification approval.

For more technical details, please visit our website: www.thermostat-cn.com or www.ksdhao.com/en/
