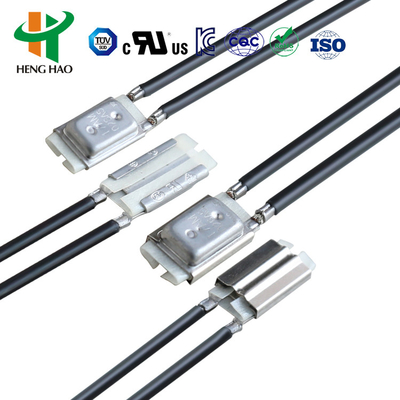

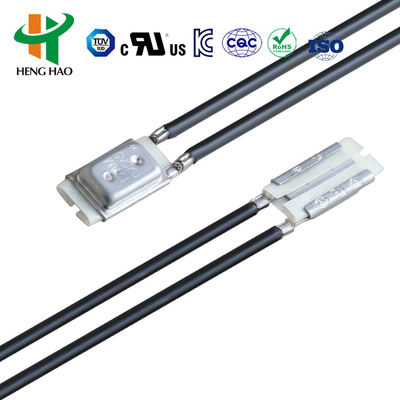

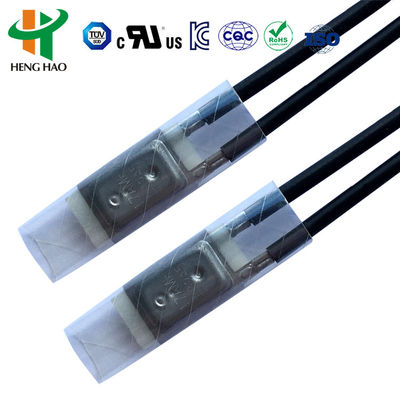

17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5 17AM+PTC

17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC
17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC
17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC

Large Image :  17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5 17AM+PTC

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: 17AM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15~0.2/PCS
Packaging Details: 2000pcs/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 1000000PCS per month

17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5 17AM+PTC

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Metal
High Light:

17AM035A5 Thermal Protector

,

auto reset thermal fuse

,

17AM033A5 Thermal Protector

17AMH Thermal protector / 17AMH Thermostat / 17AM temperature protector / instead of KLIXON 17AM thermal protector

17AM is an excess-current thermal protector with compact design, Quick and accurate action, we can rivet different types of leads according to customers' requirements.

2. 17AM thermal protector’s Specification

2.1. Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A

2.2. Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 Cycles; AC-125V 5A more than 100,000 Cycles

2.3. Operating temperature range: 50-180°C

2.4. Temperature tolerance: ±2°C±3°C±5°C

2.5. Reset temperature: 10~45 degrees in off temperature decline.

2.6. Working times: Over 10000 times

2.7. Code syste

17AM XXX A / B 5 A,B,C,D………..Z

(17AMH): The number of product series

(XXX): Trip off temperature in °C Code

(A / B): A: Terminals in the same direction / B: Terminals in the opposite direction

(5): OFF Temperature Tolerance Code

(A, B, C, D………..Z): Different type of connecting wire

2.8. Trip off temperature in °C Code

Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038

2.9. Product Drawing

17AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 017AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 117AM035A5 Thermal Protector Auto Reset Thermal Fuse 17AM033A5 17AM033A5  17AM+PTC 2

3. 17AM temperature protector’s Application

17AM thermal protector is applicable to all kinds of Motor, commentator for fluorescent lamp, transformer, Laminator, lamps and lighting, transformers, cover sealing machine & various of household appliances

4. 17AM thermostat’s A/°C and A/T Graph:



The product UL,CQC,VDE and RoHS certification approval.

Thermostat, thermal protector supplier, thermal protector, Thermostat supplier

Thermostat manufacturer

3.1. Manual reset type: Temperature sensing components consist of bimetallic strip. When the temperature reached the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. And then the contact points recover, reaching a purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset. (Kindly reminder: 1.This type of manual reset thermostat can reset when the temperature declines 20 °C after snap action by pressing the reset button. And 4~6 N will be advisable; please don’t use too much strength. 2. To ensure the normal function, the distance between the reset button and the close cover should not be less than 20.4mm. )
