Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector

Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector
Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector
Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector

Large Image :  Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.1~0.3/PCS
Packaging Details: 2000PCS/carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month
Contact Now

Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector

Description
Life Cycle: 10000 Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 50-150℃ Case: Large Metal Casing
Highlight:

KSD9700 Thermal Protector

,

BW9700 Thermal Fuse

,

BW9700 Thermal Protector

Auto Reset Thermal Fuse KW9700 Thermal Fuse BW9700 Thermal Protector KSD9700 BW-ABS
H20, H21 series universal and enhanced protectors with large metal casing are composed of thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, when the environment temperature increases to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device cools to safe operating temperature, the contact point automatically closes to restore normal operation.
H20, H21 Series Thermal Protector Specifications
Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 0 Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 1
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement.
Life times 10000 times
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
UL File no E487478
CQC certificate no CQC16002142880
TUV certificate no B160592241002
H20, H21 Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm, or according to customer's require
H21 Metal 18.5 7.3 3.8
H21 Metal 20 8 4 AC250V 20A

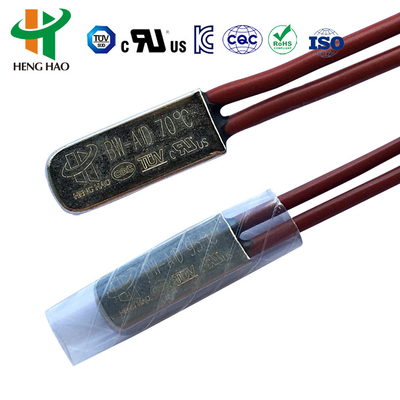

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer's require

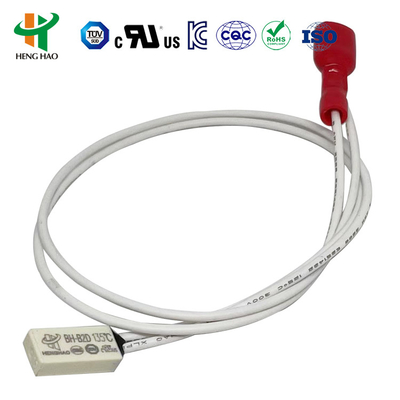

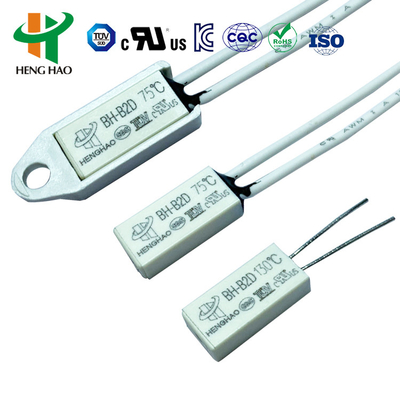

BH-B2D Plastic 15 7.1 3.8

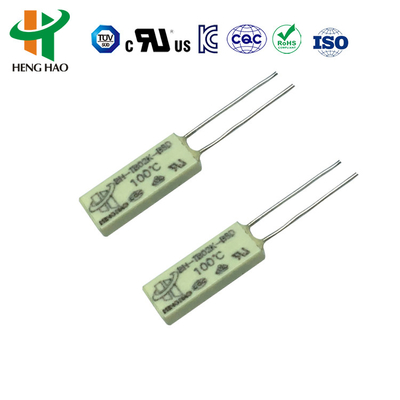

BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer's require
H20, H21 Series Temperature Protector Applications
H20, H21 series is applicable to chargeable batteries, ballasts, massagers, micro motors, transformers, electric tools, heat electric appliances and instruments.
Manual Reset Type
Temperature sensing components consist of bimetallic strip. When the temperature reaches the action temperature range, it will jump quickly and the movable disc disconnects. When the temperature declines to a fixed temperature point, the contact point cannot reset until reconnecting the circuit by pushing the reset button. The contact points then recover, achieving the purpose of connecting or disconnecting the circuit and restarting the circuit by manual reset.
  • This type of manual reset thermostat can reset when the temperature declines 20°C after snap action by pressing the reset button (4~6 N force recommended; avoid excessive strength)
  • To ensure normal function, the distance between the reset button and the close cover should not be less than 20.4mm
The product has UL, CQC, TUV and RoHS certification approval.
Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 2 Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 3 Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 4 Auto Reset Thermal Fuse with 50-150℃ Temperature Range 10000 Life Cycle and Large Metal Casing Thermal Protector 5
