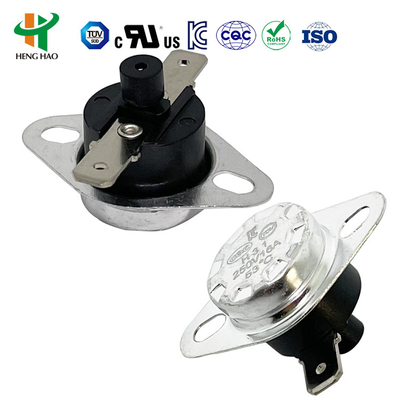

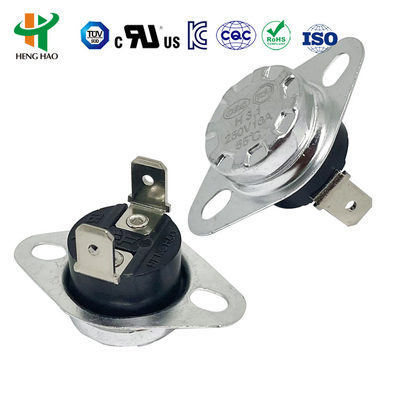

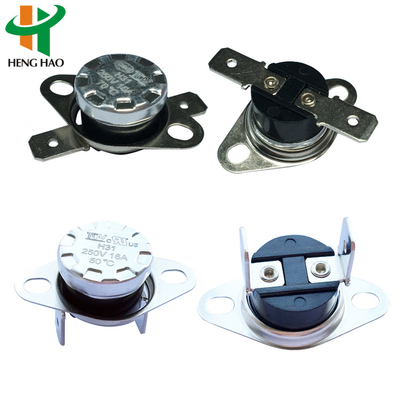

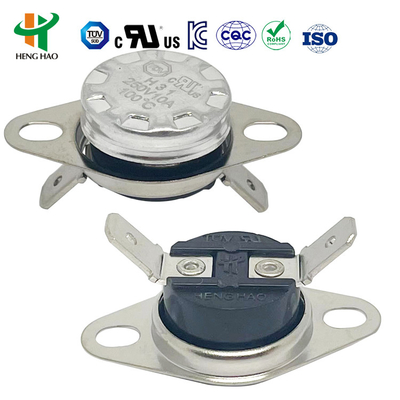

KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch

KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch
KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch
KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch

Large Image :  KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301auto reset thermal fuse

,

KSD301 thermal fuse

,

KSD301-R thermal fuse

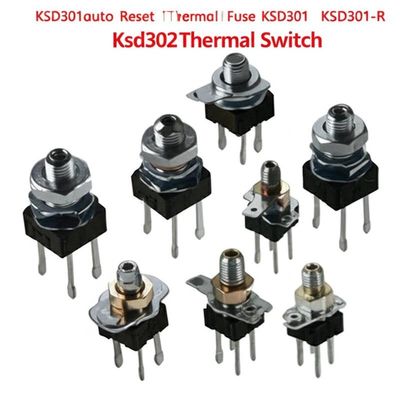

KSD301 Auto Reset Thermal Fuse / KSD302 Thermal Switch
The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates the internal contacts, ultimately controlling the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat with 0-250℃ Temperature Range 100000 Cycles and Normally Closed or Open Switch 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two types: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses a bimetallic strip that disconnects when reaching action temperature. Requires manual reset button press (4-6N force) after temperature drops 20°C from snap action point. Minimum 20.4mm clearance needed between reset button and cover.
Auto Reset Type: Uses bimetallic strip that automatically resets when temperature drops to specified point, restarting the circuit without manual intervention.
Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature specifications available according to client requirements.
Certifications: UL, CQC, TUV and RoHS approved.
