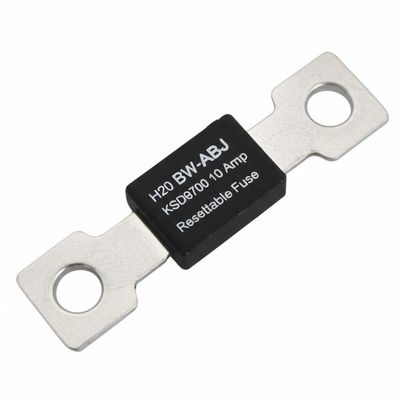

H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch

H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch
H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch
H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch

Large Image :  H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC KC
Model Number: BW-ABS
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: USD 0.15~0.3PCS
Packaging Details: 2000PCS
Delivery Time: 10~15PCS
Payment Terms: T/T
Supply Ability: 1000000PCS
Contact Now

H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 10A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Rese
Temperature Range: 50-150℃ Case: Plastic
Highlight:

H20 10 amp resettable fuse

,

BW-ABJ 10 amp resettable fuse

,

10 amp resettable fuse KSD9700

H20 BW-ABJ KSD9700 10 Amp Resettable Fuse
BW & BH series protectors offer reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The temperature and current-sensitive bimetal components change state to cut off or restore the circuit in response to abnormal conditions. BH series provides enhanced safety with no temperature effect lag during sudden current surges.
H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch 0

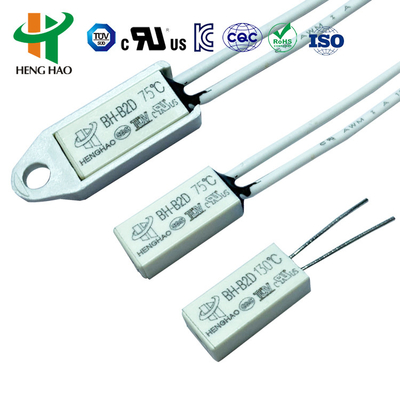

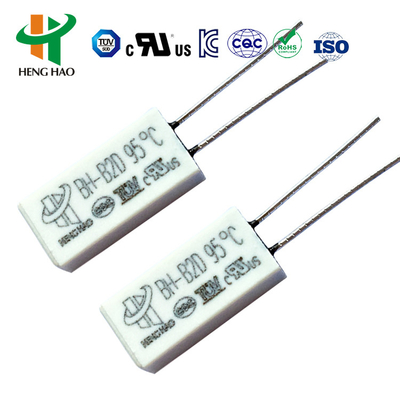

BH Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length 70mm (customizable)
Certifications UL E487478, CQC CQC16002142880, TUV B160592241002
BH Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5×8×4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm length (customizable)
H21 Metal 18.5×7.3×3.8 - -
H21 Metal 20×8×4 AC250V 20A #16 3135

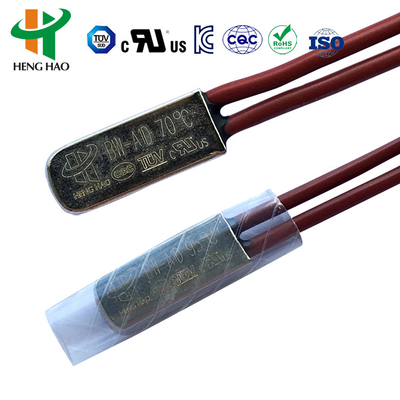

BH-A1D Metal 15×6.6×3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V Multiple options available
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications
BH series thermal protectors are widely used in:
  • 1.5 horsepower motors
  • Lighting devices and fluorescent lamp ballasts
  • Inverter welding machines and switch power supplies
  • Rechargeable battery packs
  • Portable power tools and electric appliances
  • Plastic coated motors (3.5MPa pressure-resistant models available)
BW Series Thermostat / KSD9700 Thermal Protector

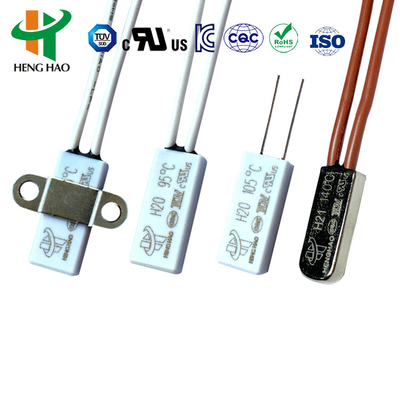

H20/H21 Series Principle and Structure
These universal and enhanced protectors feature large metal casings with thermal conductive properties. The design includes bimetallic components with silver alloy contact points, conductive brackets, insulation stands, and heat-resistant cables. During abnormal operation, rising temperatures trigger the bimetallic components to quickly open the circuit, automatically resetting when safe temperatures are restored.
H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch 1 H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch 2 H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch 3 H20 BW-ABJ KSD9700 10 Amp Resettable Fuse with 50-150℃ Range 100000 Cycles and Plastic Case Thermal Protection Switch 4
This product holds UL, CQC, TUV, and RoHS certifications.
