JUC-31F Temperature Controller Thermostat 16 Amp Resettable Fuse KSD-01F
Principle and Structure

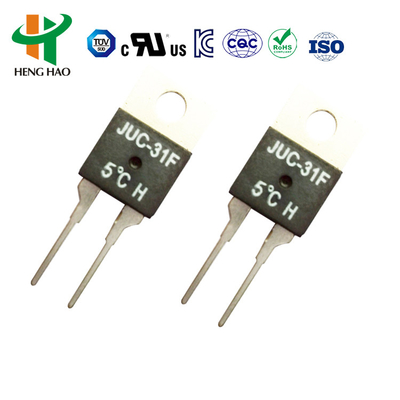

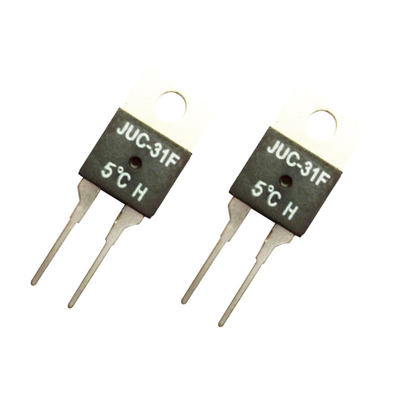

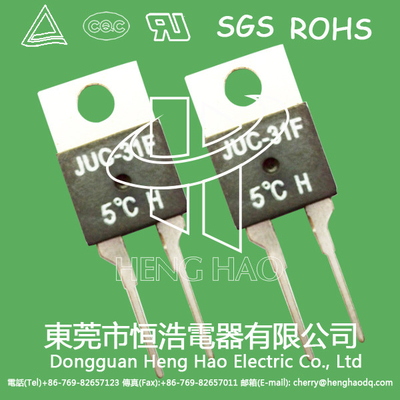

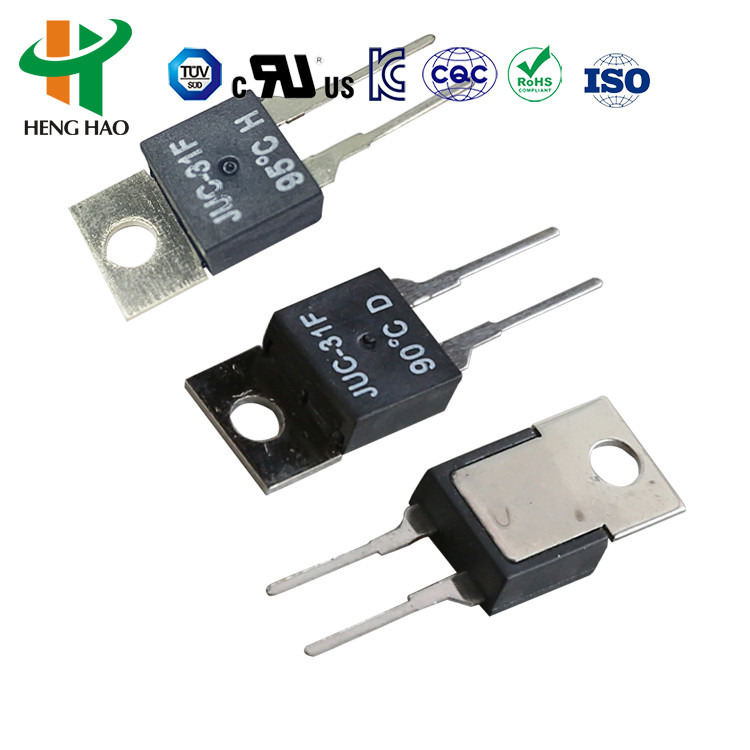

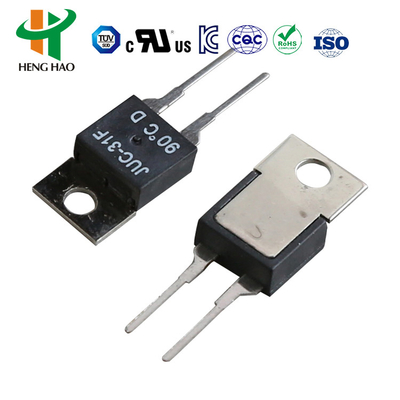

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat using international TO220/Y220 standard packaging. This product features high reliability, sensitive and accurate temperature response, compact size, lightweight construction, and easy installation. Ideal for PCB circuit boards, heat equipment, and power device installations.
Specifications
- Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
- Contact type: ID (closed) H (open)
- Overheating temperature: 250°C
- Contact resistance: < 50mΩ
- Insulation resistance: > 100 mΩ
- Dielectric withstand voltage: > 1500V
- Product life: > 10,000 cycles
- Weight: 1.7 g
- Action temperature deviations: ±5°C
| Operating temperature/°C |
Recovery temperature/°C |
Error |
Testing way |
| 0~99 |
5~35 |
±3°C |
1°C/min |
| 100~130 |
7~40 |
±5°C |
Applications
The JUC-31F thermostat is suitable for electric equipment, household appliances, thermal overload protection in circuit boards, communication power supplies, switching power supplies, UPS power supplies, medical power supplies, audio amplifier equipment, rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation, electronic equipment, automation equipment, and military/commercial product temperature control.
Product has UL, CQC, VDE and RoHS certification approval.
17AMH Thermal Protector / Thermostat
Principle and Structure
The 17AM is an excess-current thermal protector with compact design and quick, accurate action. Different types of leads can be riveted according to customer requirements.
Specifications
- Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
- Contact life cycles: AC-125V 15A, AC-250V 10A > 10,000 cycles; AC-125V 5A > 100,000 cycles
- Operating temperature range: 50-180°C
- Temperature tolerance: ±2°C/±3°C/±5°C
- Reset temperature: 10-45°C below off temperature
- Working times: Over 10,000 cycles
Code System
17AM XXX A/B 5 A,B,C,D...Z
(17AMH): Product series
(XXX): Trip off temperature in °C Code
(A/B): Terminal direction (A=same, B=opposite)
(5): OFF Temperature Tolerance Code
(A-Z): Connecting wire type
| Degrees °C |
Code |
Degrees °C |
Code |
Degrees °C |
Code |
Degrees °C |
Code |
| 55°C |
018 |
90°C |
025 |
125°C |
032 |
160°C |
039 |
| 60°C |
019 |
95°C |
026 |
130°C |
033 |
165°C |
040 |
| 65°C |
020 |
100°C |
027 |
135°C |
034 |
170°C |
041 |
| 70°C |
021 |
105°C |
028 |
140°C |
035 |
175°C |
042 |
| 75°C |
022 |
110°C |
029 |
145°C |
036 |
180°C |
043 |
| 80°C |
023 |
115°C |
030 |
150°C |
037 |
|
|
| 85°C |
024 |
120°C |
031 |
155°C |
038 |
|
|
Applications
The 17AM thermal protector is suitable for various motors, fluorescent lamp commutators, transformers, laminators, lamps and lighting, cover sealing machines, and various household appliances.
