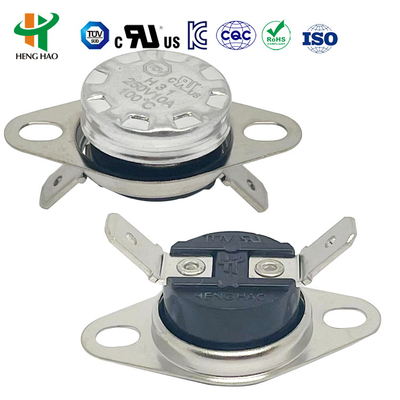

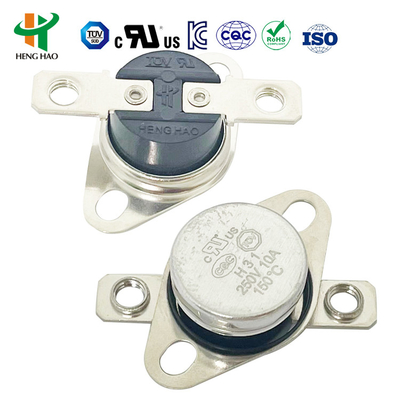

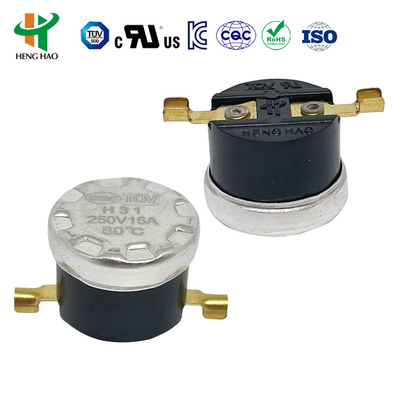

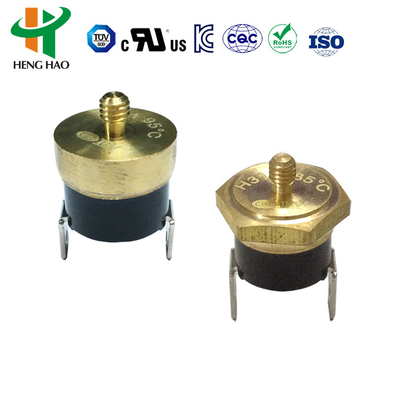

KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact
KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact
KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Large Image :  KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301 Auto Reset Thermal Fuse

,

KSD302 Auto Reset Thermal Fuse

,

Temperature Controlled Switch auto reset fuse

Temperature Controlled Switch Auto Reset Thermal Fuse KSD301 KSD302
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 1
KSD301 Auto Reset vs Manual Reset Types

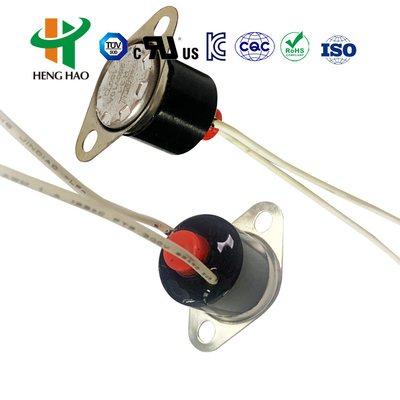

Manual Reset Type: Uses bimetallic strip temperature sensing. Requires manual reset button press after temperature drops 20°C from trip point. Reset force should be 4-6N. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets when temperature drops to specified point without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
(Additional temperature settings available - full range from -20℃ to 300℃)
Custom temperature settings available according to client requirements
Product holds UL, CQC, TUV and RoHS certification approvals.
KSD301 Bimetal Thermostat Temperature Controlled Switch with 0-250℃ Range 100000 Cycles and Normally Closed Contact 2
