KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications

KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications
KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications
KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications

Large Image :  KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

TB02-BB8D thermal fuse

,

auto reset thermal fuse

,

KSD9700 thermal fuse

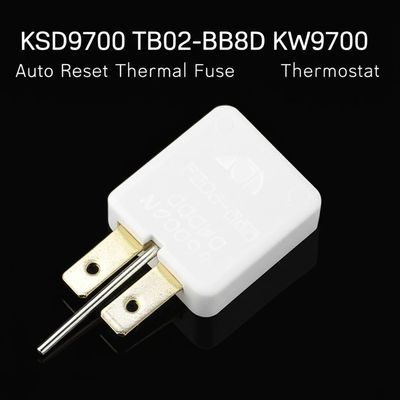

KSD9700 TB02-BB8D KW9700 Auto Reset Thermal Fuse Thermostat

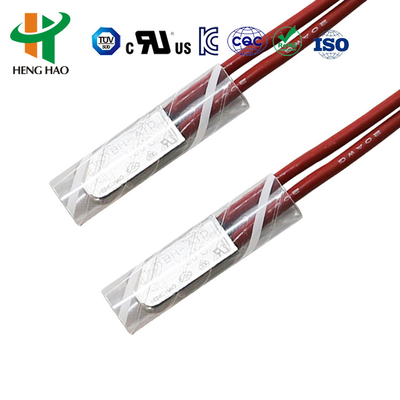

The BW & BH series thermal protectors offer reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The temperature and current-sensitive bimetal changes state to cut off or switch on the circuit when detecting over-temperature or over-current conditions. BH series provides enhanced safety with no temperature effect lag during sudden current surges.
KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications 0
BH Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length 70mm (customizable)
Certifications UL E487478, CQC16002142880, TUV B160592241002
BH Series Dimensions

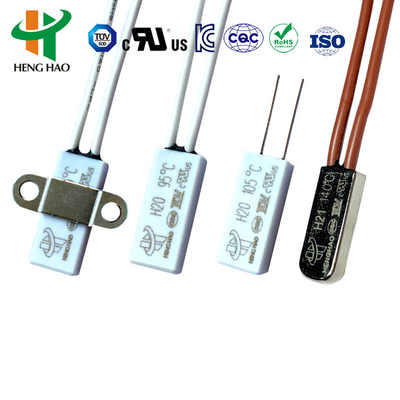

Model Case Dimensions (mm) Voltage & Current Lead Wire

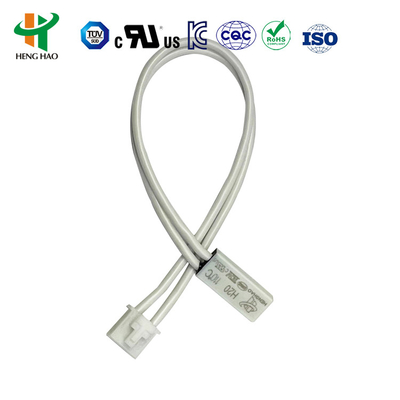

H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 - -
H21 Metal 20 × 8 × 4 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
BH-B2D Plastic 15 × 7.1 × 3.8 - -

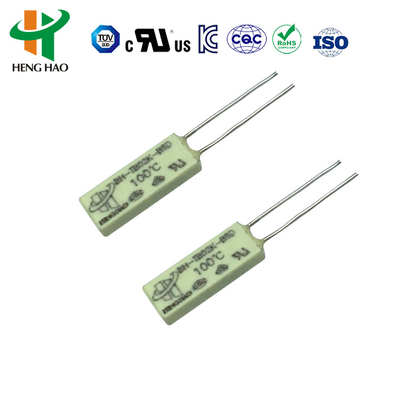

BH-TB02B-B8D Plastic 15 × 5.2 × 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications
BH series thermal protectors serve as effective security devices for:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Various electric appliances
Enforced types withstand 3.5MPa pressure for plastic-coated motor installation.
H20/H21 Series Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C (customizable)
Life times 10000 cycles
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
Certifications UL E487478, CQC16002142880, TUV B160592241002
KSD9700 Auto Reset Thermal Fuse Thermostat with 0-250℃ Temperature Range and Bakelite Case for Normally Closed or Normally Open Applications 1
Certifications: UL, CQC, TUV and RoHS compliant.
