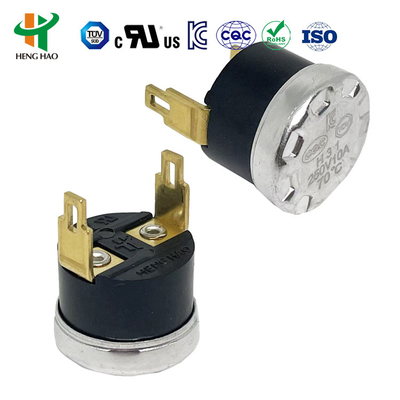

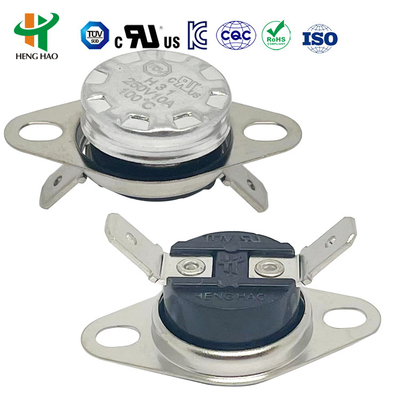

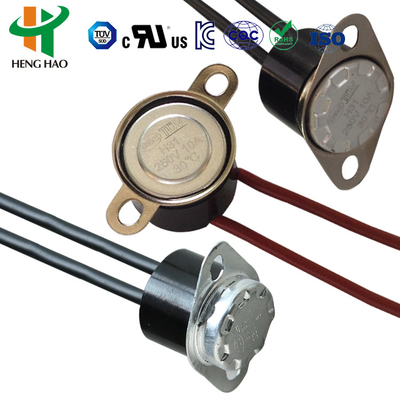

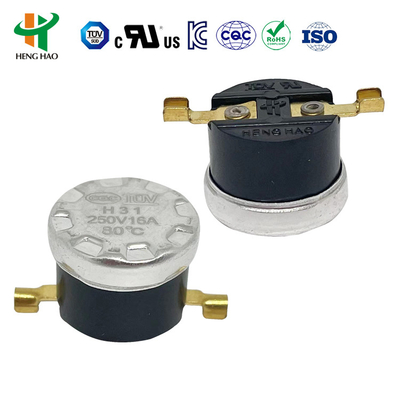

KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301-R thermal fuse

,

KSD301 Thermal Switch

,

KSD301 thermal switch

KSD301-R Thermal Fuse KSD301 Thermal Switch Temperature Switch
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close the circuit. Key characteristics include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open

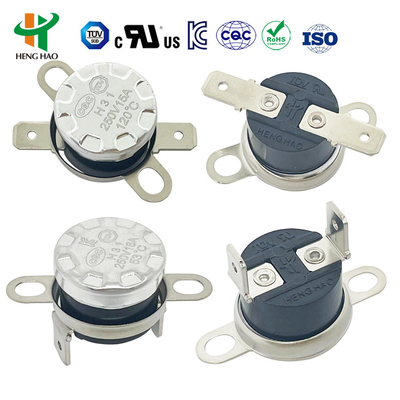

Mounting bracket Two types: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House Plastic or ceramic

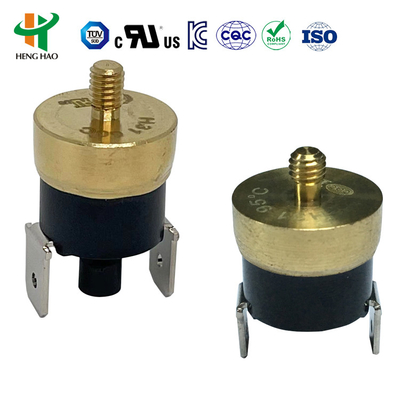

Temperature sensor face Aluminum cap or copper head
KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type
Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it quickly disconnects. The contact point cannot reset until the circuit is reconnected by pushing the reset button when temperature declines to a fixed point.
Note: 1. This type can reset when temperature declines 20°C after snap action by pressing the reset button (4~6 N force recommended). 2. For normal function, maintain at least 20.4mm distance between reset button and close cover.
Auto Reset Type
Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it quickly disconnects. The contact point automatically resets when temperature declines to a fixed point.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom temperature settings available according to client's request
Product certifications: UL, CQC, TUV and RoHS approved
KSD301 Thermal Switch Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 2
