KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications

KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications
KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications
KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications

Large Image :  KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 auto reset thermal fuse

,

KSD301 Bimetallic Thermostat

,

KSD301 temperature controller

KSD301 Auto Reset Thermal Fuse KSD301-R Bimetallic Thermostat
The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open

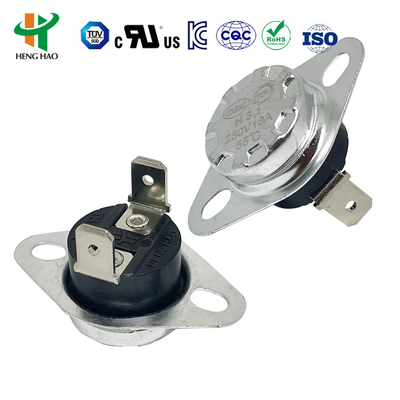

Mounting Bracket Movable or immovable options
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications 1
Reset Types Comparison

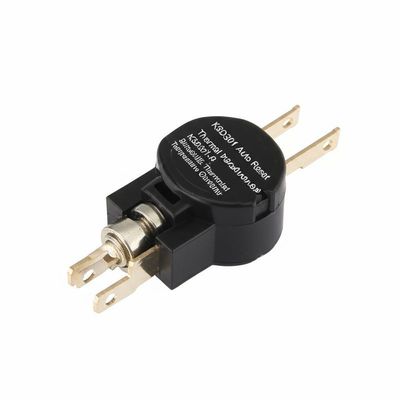

Manual Reset Type
When temperature reaches the action range, the bimetallic strip disconnects the circuit. Requires manual reset button press (4-6N force) after temperature drops 20°C from trip point. Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type
Automatically resets when temperature drops to specified recovery point without manual intervention.
Applications
Ideal for temperature control in household appliances including:
  • Coffee makers
  • Toasters
  • Laminators
  • Electric kettles
  • Steam irons
  • Microwave ovens
  • Water dispensers
  • Space heaters
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Custom temperature settings available upon request.
Certifications
This product holds UL, CQC, TUV and RoHS certifications.
KSD301 Bimetallic Thermostat with 100000 Cycles and Plastic or Ceramic Housing for Aluminum Cap or Copper Head Applications 2
