Auto Reset Thermal Protection Switch for Motor Fluorescent Lamp and Transformer with 10000 Cycles Life

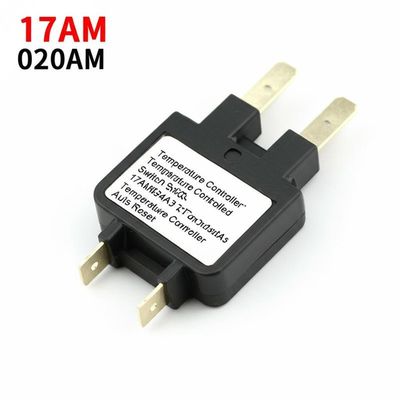

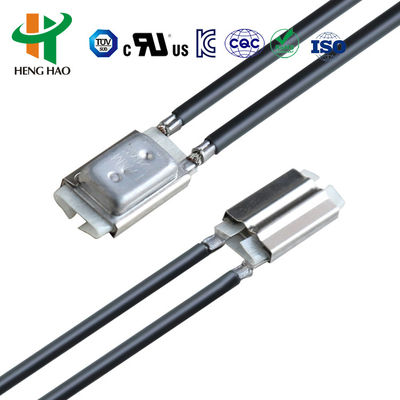

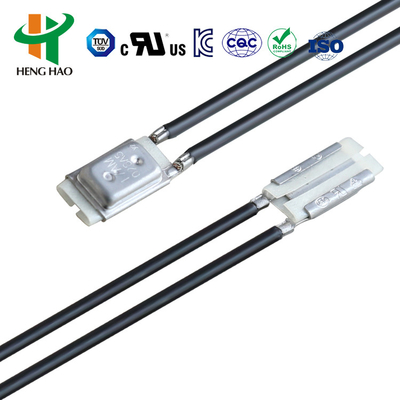

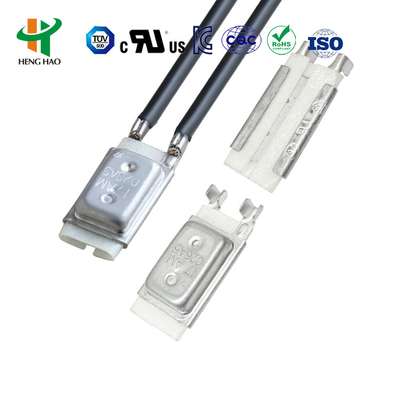

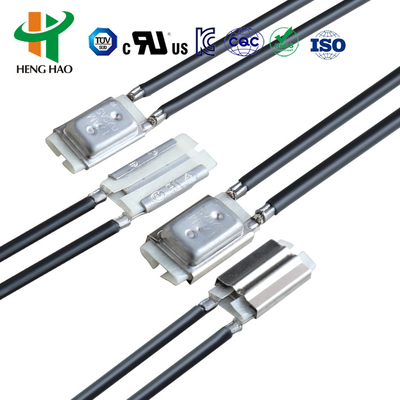

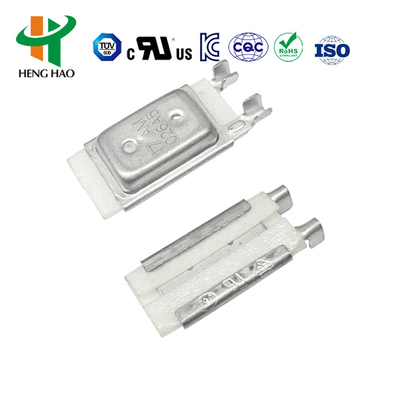

The 17AM is an excess-current thermal protector featuring compact design and quick, accurate action. Different types of leads can be riveted according to customer requirements.

• Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact life cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
• Operating temperature range: 50-180°C
• Temperature tolerance: ±2°C/±3°C/±5°C
• Reset temperature: 10-45°C below trip temperature
• Working times: Over 10,000 operations

17AM XXX A/B 5 A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip temperature in °C code
• A/B: A: Terminals same direction / B: Terminals opposite direction
• 5: OFF temperature tolerance code
• A,B,C,D...Z: Different connecting wire types

The thermal protection switch is typically located on A/C compressor housings to prevent compressor damage from overheating caused by internal friction. The switch senses compressor case temperature and interrupts the electrical circuit when temperature reaches predetermined levels.

Thermal protection switches guard against overload conditions. In these overload relays (also called "solder pot relays"), motor current passes through a small heater winding.

All types of motors, fluorescent lamp commutators, transformers, laminators, lighting equipment, cover sealing machines, and various household appliances.
