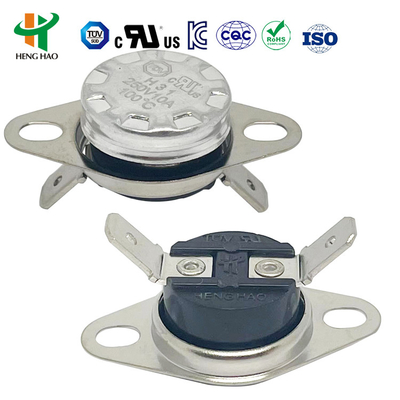

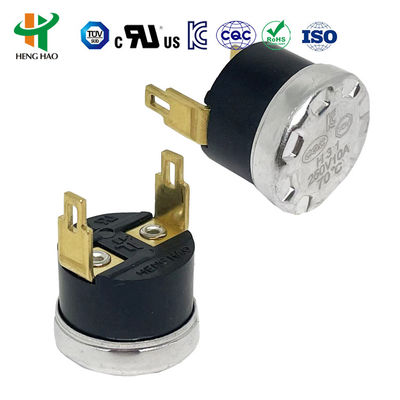

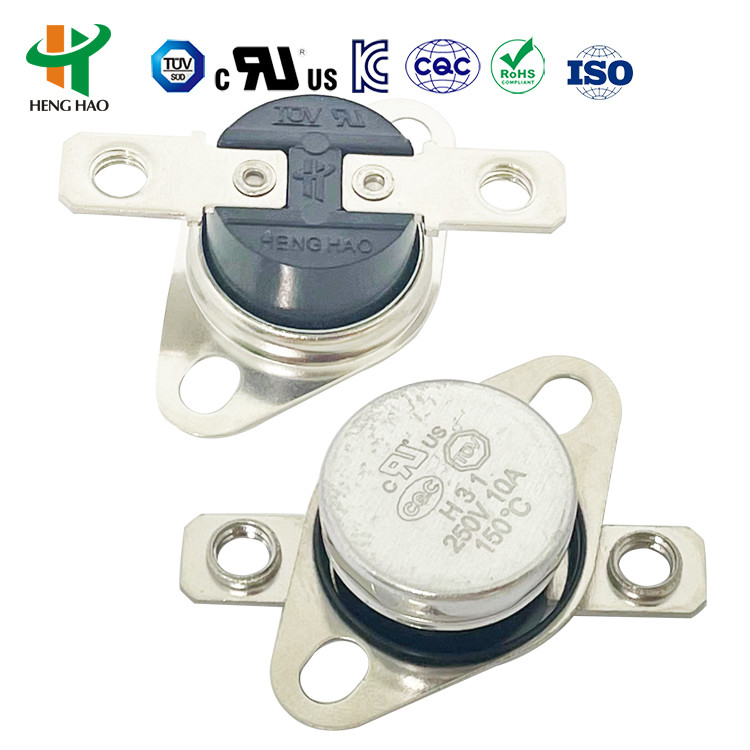

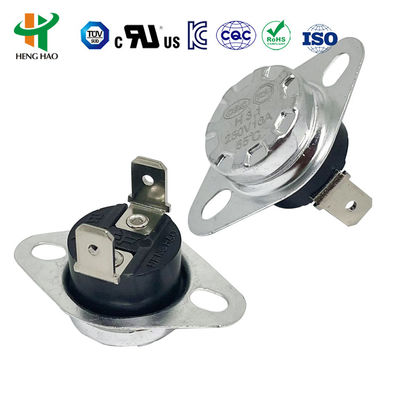

KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD303 thermal fuse

,

KSD301 thermal fuse

,

KSD302 thermal fuse

KSD301 KSD302 Thermal Fuse KSD303 Thermal Switch Temperature Switch
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Two types: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types

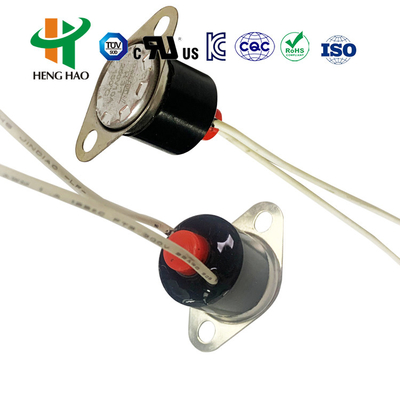

Manual Reset Type: Uses a bimetallic strip that disconnects at the action temperature. Requires manual reset button press (4-6N force) when temperature drops 20°C after snap action. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Uses a bimetallic strip that automatically reconnects when temperature drops to the reset point.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, steam irons, warmers, microwave ovens, and water dispensers.
Temperature Specifications
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Additional temperature ranges available or customizable to client requirements
This product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat Thermal Switch with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
