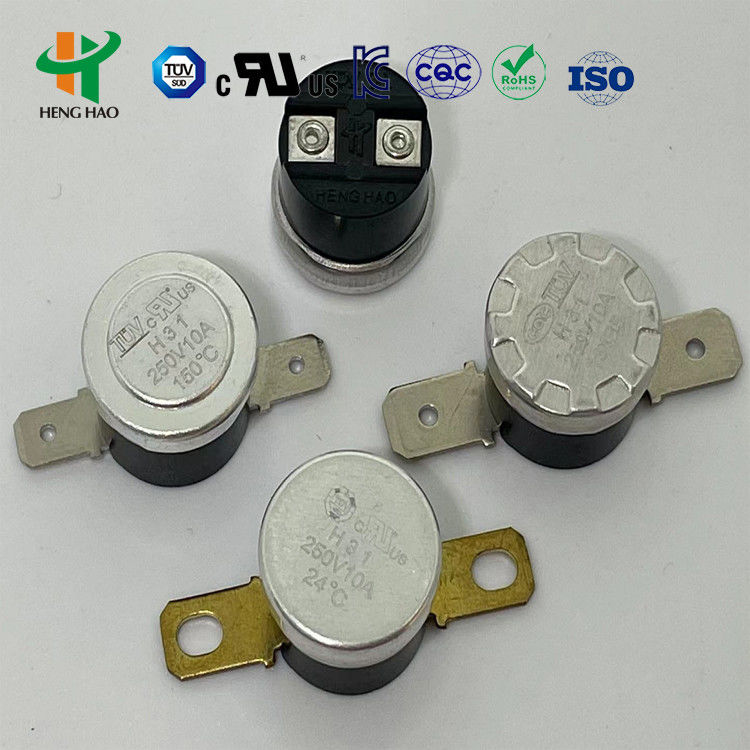

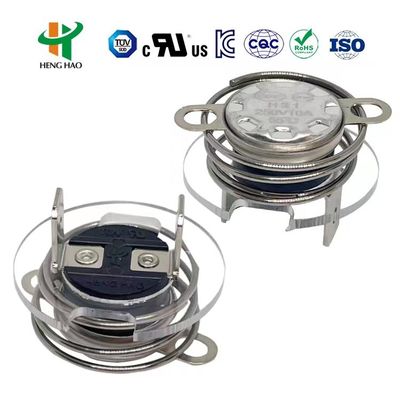

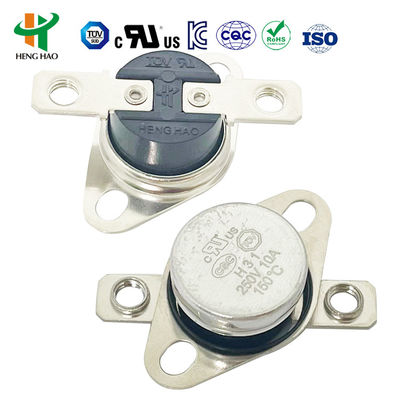

KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head

KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head
KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head
KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Large Image :  KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1
Packaging Details: 2100PCS/CARTON
Delivery Time: 5~8WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PER MONTH
Contact Now

KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 auto reset thermal fuse

,

ksd301 250v 16a thermal fuse

,

250v 16a auto reset thermal fuse

KSD301 250V 16A Auto Reset Thermal Fuse Temperature Switch
The KSD series thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, extended service life, and reduced radio interference.
KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head 0
Technical Specifications
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open

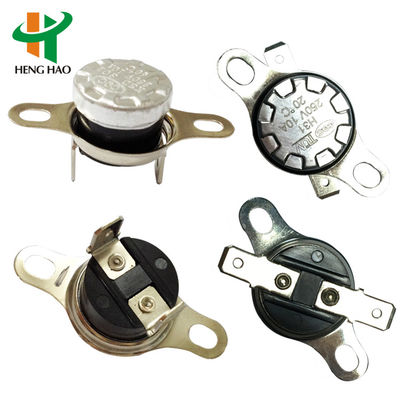

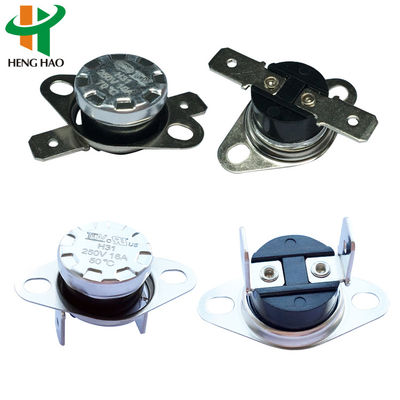

Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic

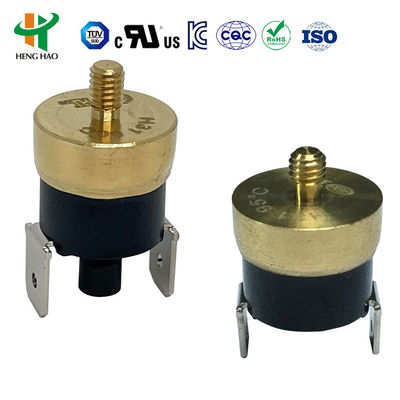

Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head 1
Auto Reset vs Manual Reset Types
Manual Reset Type: Uses a bimetallic strip that disconnects at the action temperature. Requires manual reset by pressing a button after temperature decreases by 20°C. Requires 4-6N force for reset.
Auto Reset Type: Uses a bimetallic strip that automatically reconnects when temperature decreases to the reset point.
Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, steam irons, warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Note: Custom temperature settings available according to client requirements.
This product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat Thermal Switch with Normally Closed or Open Contacts in Plastic or Ceramic Housing and Aluminum Cap or Copper Head 2
