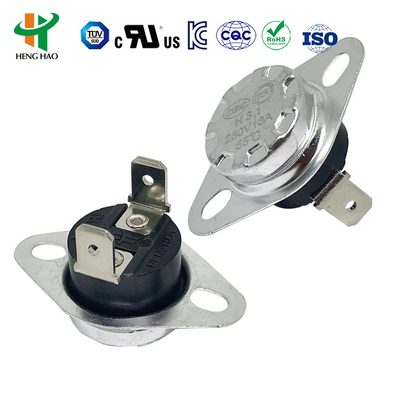

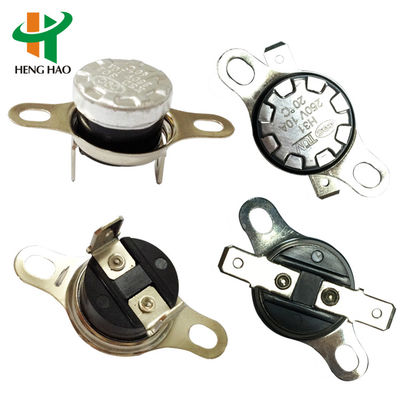

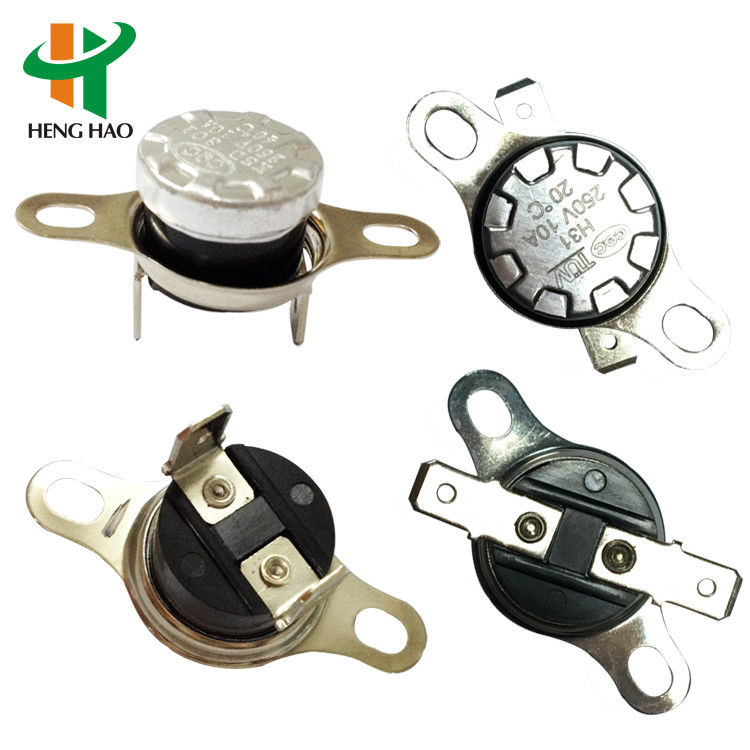

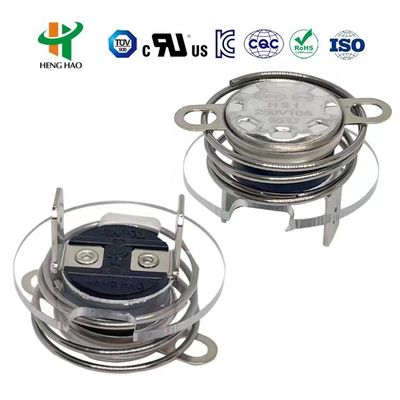

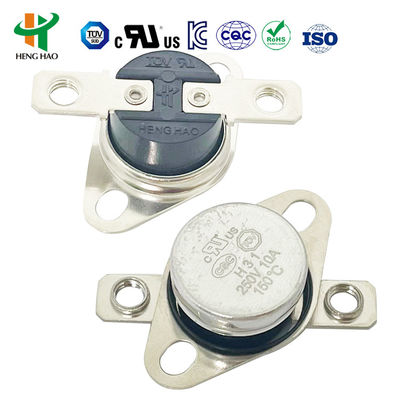

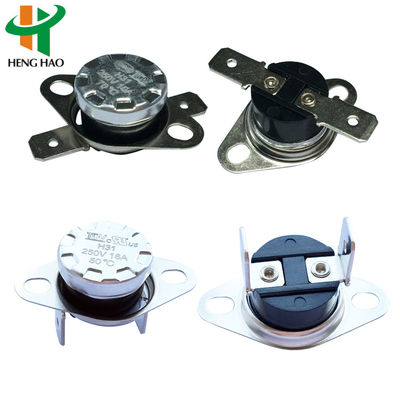

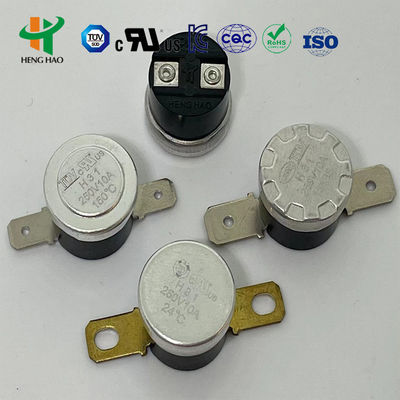

KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range

KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

ksd301 bimetal thermostat Temperature Controlled Switch

,

Auto Reset ksd301 bimetal thermostat

,

ksd301 bimetal thermostat Auto Reset

KSD301 Bimetal Thermostat Temperature Controlled Switch Auto Reset
The KSD301 Bimetal Thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, long service life, and reduced radio interference.
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
KSD301 Bimetal Thermostat Temperature Controlled Switch with 100000 Cycles 250V 16A and 0-250℃ Range 0
Reset Types Comparison
Manual Reset Type: Requires physical button press to reconnect circuit after temperature drops approximately 20°C below activation point. Reset force of 4-6N recommended.
Auto Reset Type: Automatically reconnects circuit when temperature drops to specified reset point without manual intervention.
Note: For manual reset models, maintain minimum 20.4mm clearance between reset button and cover for proper operation.
Temperature Settings Reference
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Custom temperature settings available upon request
Applications
Ideal for temperature control in household appliances including coffee makers, toasters, laminators, electric kettles, steam irons, microwave ovens, water dispensers, and heating equipment.
Certifications: UL, CQC, TUV and RoHS compliant.
