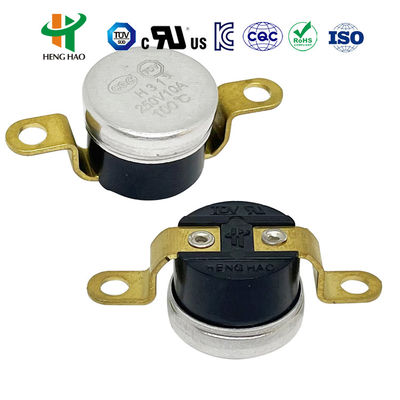

KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances

KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances
KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances
KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances

Large Image :  KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD201
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.15
Packaging Details: 2100PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 100000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

ksd301 thermostat Temperature Protector Controller Switch

,

Manual Reset ksd301 thermostat

,

Auto Reset ksd301 thermostat

KSD301 Thermostat Temperature Protector Controller Switch
Manual Reset & Auto Reset Thermal Fuse
The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and reduced radio interference.
KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open

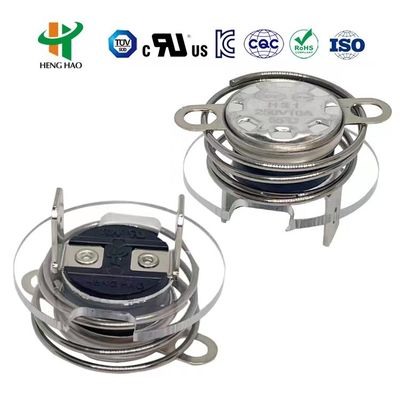

Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances 1

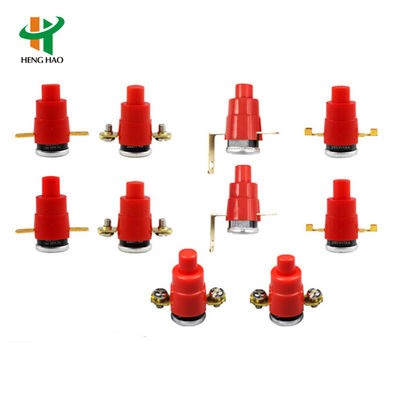

KSD301 Auto Reset vs Manual Reset Types

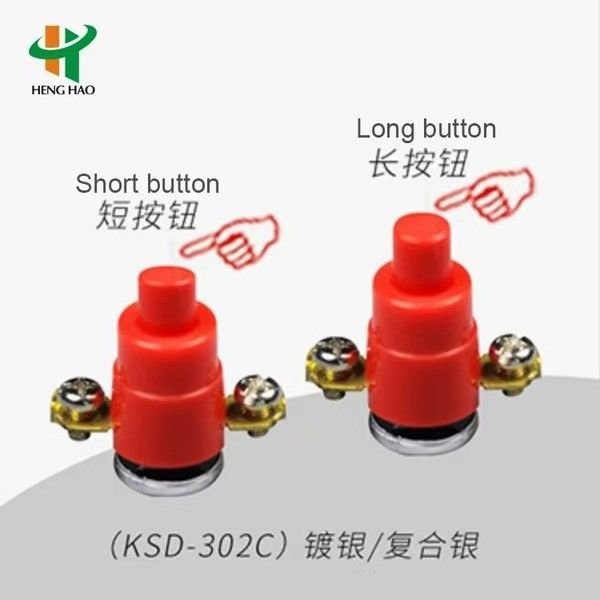

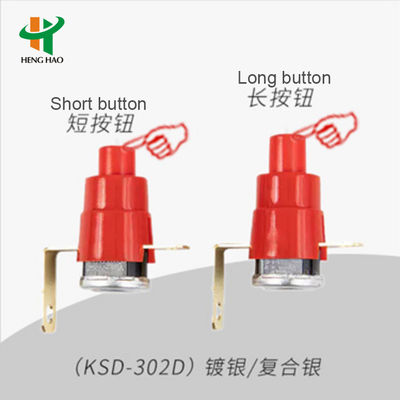

Manual Reset Type
Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it snaps quickly to disconnect. The contact point cannot reset automatically - circuit must be reconnected by pressing the reset button after temperature declines by approximately 20°C.
Note: 1. Apply 4~6 N force when resetting - excessive force may damage the mechanism. 2. For proper function, maintain at least 20.4mm clearance between reset button and cover.
Auto Reset Type
Uses similar bimetallic strip mechanism, but automatically resets and resumes operation when temperature declines to the specified reset point without manual intervention.
KSD301 Thermostat Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature settings available according to client requirements.
Certifications
This product has UL, CQC, TUV and RoHS certification approval.
KSD301 Bimetal Thermostat with Plastic or Ceramic Housing and Aluminum Cap or Copper Head for Household Electric Appliances 2
