17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range

17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range
17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range
17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range

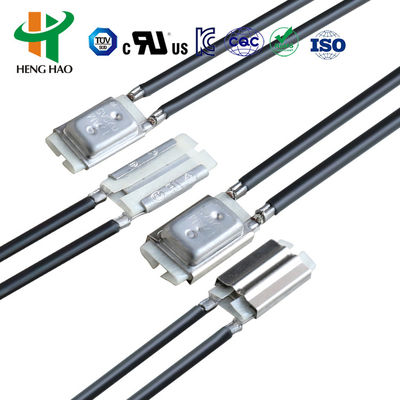

Large Image :  17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: 17AMH
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.35-0.5 PER PC
Packaging Details: 1000 pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000PCS PER MONTH
Contact Now

17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

17AM021A5 thermal fuse

,

17AM024A5 Thermal Protector

,

17AM023A5 Thermostat

17AM Series Thermal Protectors

High-performance thermal fuses and thermostats including models 17AM021A5, 17AM023A5, and 17AM024A5 with auto-reset functionality.

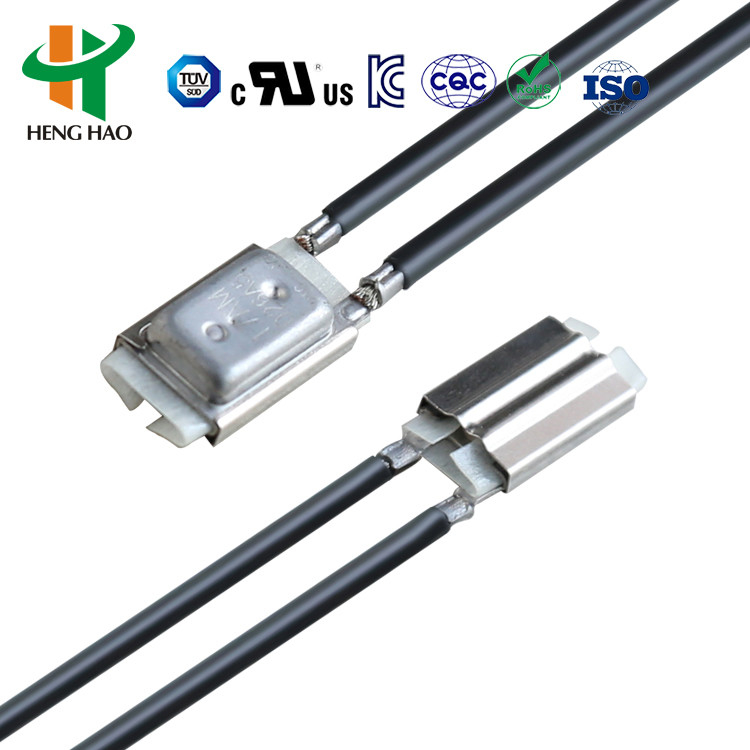

17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 0
Product Overview

The 17AMH thermal protector series offers reliable temperature protection for various industrial applications. These compact devices feature quick, accurate action with customizable lead configurations.

Key Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles: 10,000+ cycles at rated load
  • Operating Temperature: 50-180°C range
  • Temperature Tolerance: ±2°C to ±5°C
  • Reset Temperature: 10-45°C below trip point
  • Durability: 10,000+ working cycles
Temperature Code System
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Product Applications

The 17AM thermal protector is suitable for:

  • Electric motors and transformers
  • Fluorescent lamp commutators
  • Laminators and sealing machines
  • Lighting systems and fixtures
  • Various household appliances
Certifications

This product series carries UL, CQC, VDE and RoHS certifications.

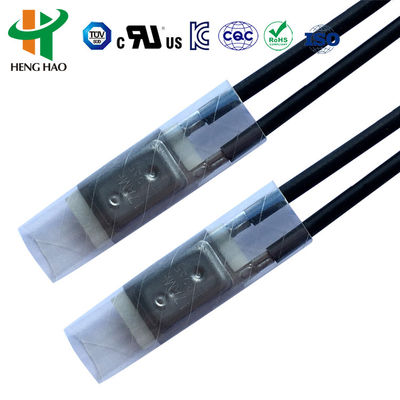

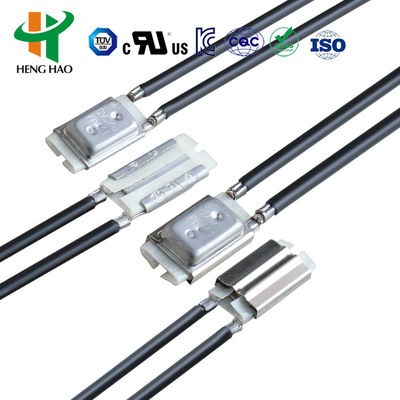

17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 1 17AM Thermal Protector and Thermostat with 250V 16A Rating 100000 Cycles and 0-250℃ Temperature Range 2
Note: Can be used as direct replacement for KLIXON 17AM thermal protectors.
