Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open

Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open
Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open
Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open

Large Image :  Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: BW9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.18-0.3 per.pc
Packaging Details: 1000pcs per carton
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ
Supply Ability: 1000000000 PCS PER MONTH
Contact Now

Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

Bimetallic Thermostat auto reset thermal fuse

,

BW9700 auto reset thermal fuse

,

9700 Series auto reset thermal fuse

KW9700 Auto Reset Thermal Fuse BW9700 9700 Series Bimetallic Thermostat BW-ABS BW-ABJ

The BW & BH series thermal protectors provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The bimetallic components respond to temperature and current changes, cutting off or restoring the circuit as needed.

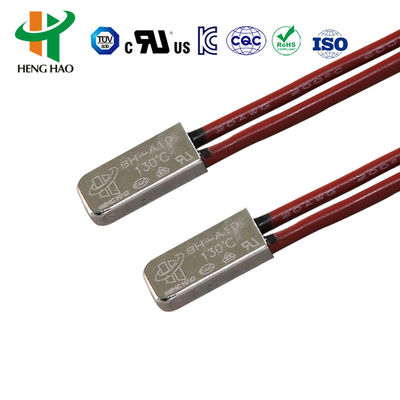

Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead Wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8 - -
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications

BH series thermal protectors are effective security devices used in:

  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Various electric appliances

Enforced types withstand up to 3.5MPa pressure for plastic-coated motor installation.

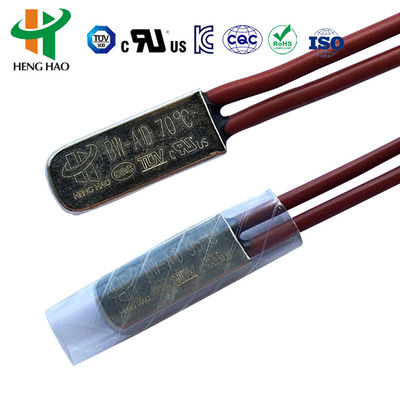

Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open 1
BW Series Thermostat / KSD9700 Thermal Protector
Principle and Structure

BW series universal and enhanced protectors feature large metal casings containing bimetallic components with silver alloy contact points. When temperature reaches the set value, the bimetallic components quickly open the circuit, automatically resetting when cooled to safe operating temperatures.

Specifications
  • Switch type: Normally closed or normally opened
  • Operating Voltage/Current: AC250V/5A; AC125V/8A
  • Operating Temperature: 40~150℃ (5°C increments)
  • Tolerance: ±3°C, ±5°C, or ±7°C
  • Reset temperature: 15-45°C below operating temperature
  • Contact resistance: ≤50mΩ
  • Insulation resistance: ≥100mΩ
  • Electric strength: AC1500V/1min (no breakdown or flashover)
  • Service life: 10000 cycles
Dimensions
Model Length (mm) Width (mm) Height (mm)
BW9700 20 7.3 3.8
Applications

BW series protectors are suitable for:

  • Rechargeable batteries
  • Ballasts
  • Massagers
  • Motors
  • Transformers
  • Electric tools
  • Heating appliances
  • Various instruments
Temperature Settings
Code Open Temperature Reset Temperature Code Open Temperature Reset Temperature
045 45±4.5℃ ≥33℃ 105 105±5℃ 75±15℃
050 50±5℃ ≥35℃ 110 110±5℃ 75±15℃
055 55±5℃ 42±6℃ 115 115±5℃ 80±15℃
060 60±5℃ 45±8℃ 120 120±5℃ 85±15℃
065 65±5℃ 48±10℃ 125 125±5℃ 85±15℃
070 70±5℃ 50±12℃ 130 130±5℃ 90±15℃
075 75±5℃ 53±14℃ 135 135±5℃ 95±15℃
080 80±5℃ 55±15℃ 140 140±5℃ 100±15℃
085 85±5℃ 60±15℃ 145 145±5℃ 100±15℃
090 90±5℃ 65±15℃ 150 150±5℃ 105±15℃
095 95±5℃ 70±15℃ 155 155±5℃ 110±15℃
100 100±5℃ 70±15℃

Certifications: UL, CQC, VDE, and RoHS compliant.

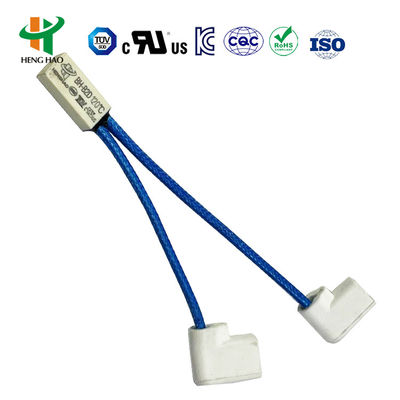

Auto Reset Thermal Fuse Bimetallic Thermostat with 0-250℃ Temperature Range 100000 Cycles Life Cycle Normally Closed or Normally Open 2
