KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts

KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts
KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts
KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts

Large Image :  KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ,T/T
Supply Ability: 1000000 PCS PER MONTH
Contact Now

KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

KSD301 Temperature Cutoff Switch Controller

,

KSD301 Temperature Switch Controller

,

KSD301 Temperature Controller

KSD301 Temperature Controller KSD301-G Temperature Cutoff Switch Controller
The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.

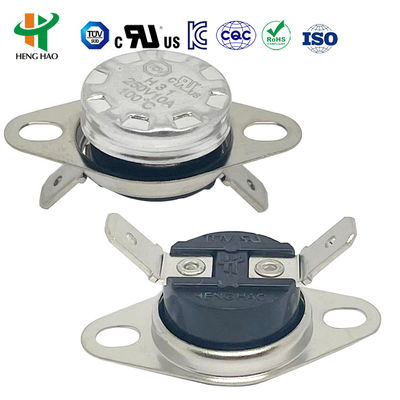

KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
Terminal Angle Bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head

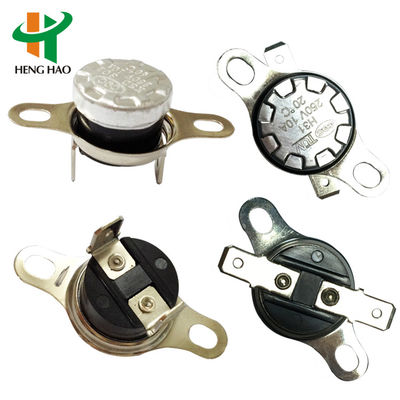

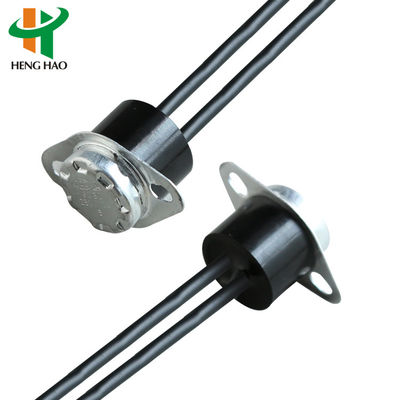

KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts 1 KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts 2
Auto Reset vs Manual Reset Types
Manual Reset Type
When temperature reaches the action range, the bimetallic strip snaps to disconnect. The circuit remains open until manually reset by pressing the reset button after temperature drops by 20°C. Requires 4~6N force for reset. Minimum 20.4mm clearance required between reset button and cover for proper operation.
Auto Reset Type
Automatically resets and reconnects the circuit when temperature drops to the specified reset point after initial disconnection.
Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Standard Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
Custom temperature settings available according to client requirements.
Certifications: UL, CQC, TUV, VDE and RoHS approved.

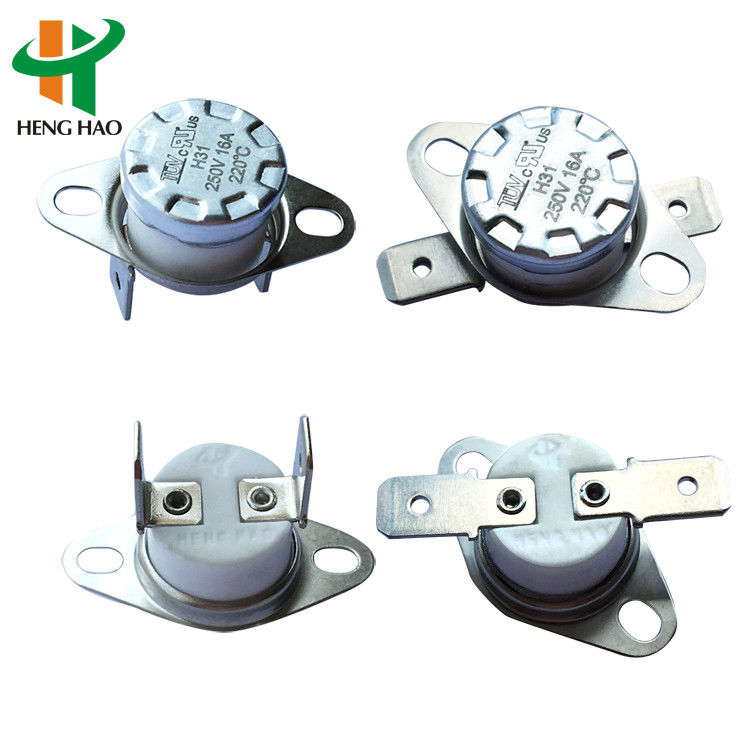

KSD301 Temperature Controller Bimetal Thermostat with 100000 Cycles 0-250℃ Range and Normally Closed/Open Contacts 3
