JUC-31F Thermostat Switch Normally Closed Or Normally Open Temperature Controlled

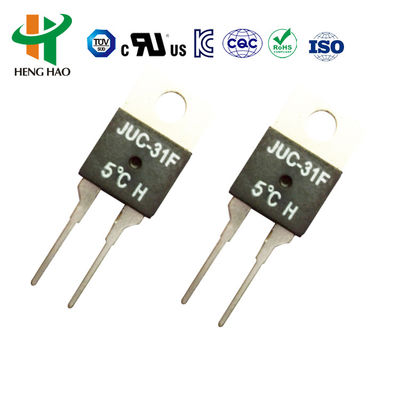

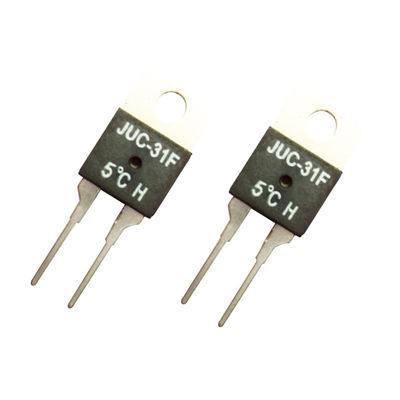

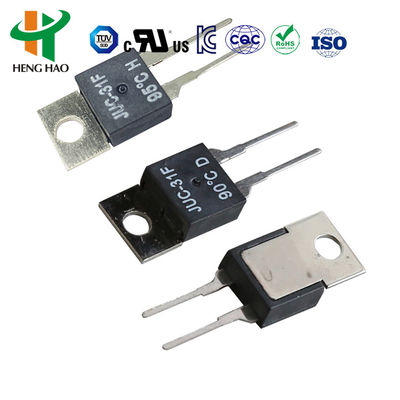

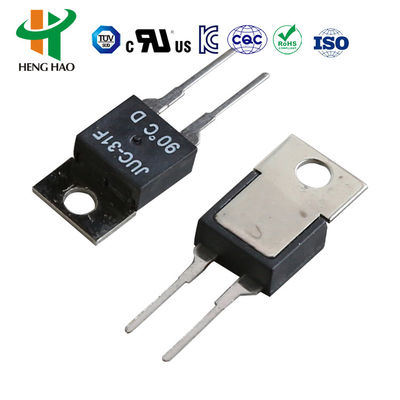

The JUC-31F thermostat is a touch-type plastic snap temperature sensor with international TO220/Y220 standard packaging. It features high reliability, sensitive and accurate temperature response, compact size, lightweight design, and easy installation, making it ideal for PCB circuit boards, heat equipment, and power devices.
JUC-31F Thermal Protector Specifications
- Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
- Contact type: ID (closed) or H (open)
- Overheating temperature: 250°C
- Contact resistance: <50mΩ
- Insulation resistance: >100 mΩ
- Dielectric withstand voltage: >1500V
- Product life: >10,000 cycles
- Weight: 1.7g
- Action temperature deviations: ±5°C
| Operating temperature (°C) |
Recovery temperature (°C) |
Error |
Testing method |
| 0-99 |
5-35 |
±3°C |
1°C/min |
| 100-130 |
7-40 |
±5°C |
JUC-31F Temperature Protector Applications
Ideal for electric equipment, household appliances, circuit board thermal overload protection, communication power supplies, UPS systems, medical power supplies, audio amplifier equipment, rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation, automation equipment, and military/commercial temperature control applications.
Product certifications: UL, CQC, VDE, and RoHS approved. Professional thermostat and thermal protector supplier.
17AMH Thermal Protector / Thermostat
The 17AMH is an excess-current thermal protector with compact design and quick, accurate action. Available with different lead configurations to meet customer requirements.
17AM Thermal Protector Specifications
- Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
- Contact life cycles: >10,000 cycles at rated load
- Operating temperature range: 50-180°C
- Temperature tolerance: ±2°C to ±5°C
- Reset temperature: 10-45°C below trip temperature
- Working cycles: Over 10,000 times
17AM Product Coding System
17AM XXX A/B 5 A,B,C,D...Z
(17AMH): Product series
(XXX): Trip temperature in °C
(A/B): Terminal orientation (same/opposite direction)
(5): OFF temperature tolerance code
(A-Z): Connecting wire type
