PT100 Thermistor Temperature Sensor with 0-250℃ Range 100000 Cycles and 250V 1A Rating

Large Image : PT100 Thermistor Temperature Sensor with 0-250℃ Range 100000 Cycles and 250V 1A Rating

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	NTC

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	USD 0.5~0.8PCS
Packaging Details:	2000PCS/CARTON
Delivery Time:	10~15WORKDAYS
Payment Terms:	T/T
Supply Ability:	100000000PCS PER MONTH

Contact Now

PT100 Thermistor Temperature Sensor with 0-250℃ Range 100000 Cycles and 250V 1A Rating

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 1A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	PT500 Temperature probe , PT100 Temperature probe , PT1000 Temperature probe

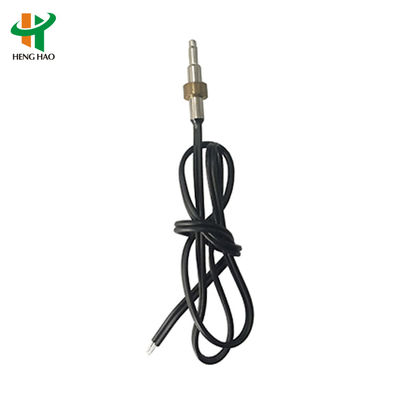

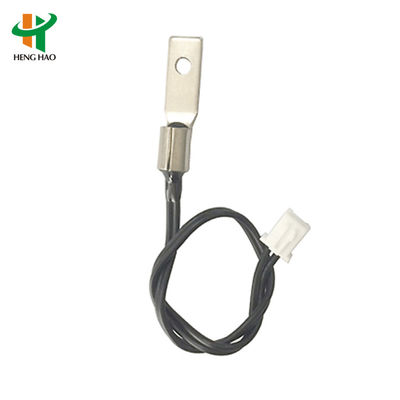

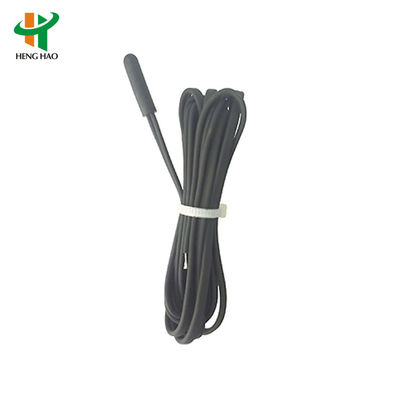

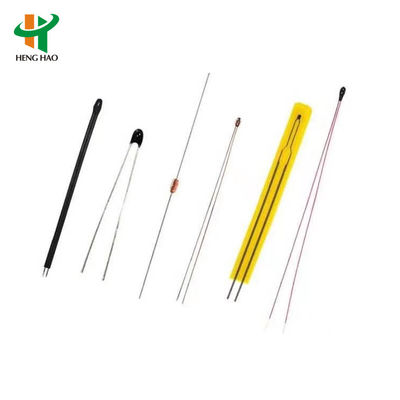

PT100 Thermistor PT500 PT1000 Temperature Sensor Temperature Probe

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25℃±0.05℃
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25℃±0.05℃
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫(dissipation coefficient)	≥0.8mw/℃	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-40℃~+250℃
Pn (rated power)	50mw	within working temperature

Case and head

Fork head, O ring head, drops of water head
Metal case, Thread copper case, injection head
Custom designs according to client's drawing

Lead wire

#24 30# 2651, UL4411 28#, double wired conductor
Custom options available according to client's request

Terminal

Can be riveted according to the requirements of various terminals

Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product options available
Strict protection of your private information and design ideas

FAQ

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

PT100/PT500/PT1000 Temperature Sensor Specifications

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe	4*30mm, or according to client's request to design
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC)
Dia	3mm~16mm
Terminal	Y type, Pin, XH2.54 or according to client's request
Level of protection	IP68
