KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Large Image :  KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301 Temperature Controlled Switch

,

KSD301 Thermostat Temperature Controlled Switch

,

KSD301-G Temperature Controlled Switch

KSD301 Thermostat Temperature Controlled Switch
The KSD301 thermostat operates on the principle of bimetal discs that snap into action when temperature changes occur. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, long service life, and low radio interference.
Product Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25 degrees (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open

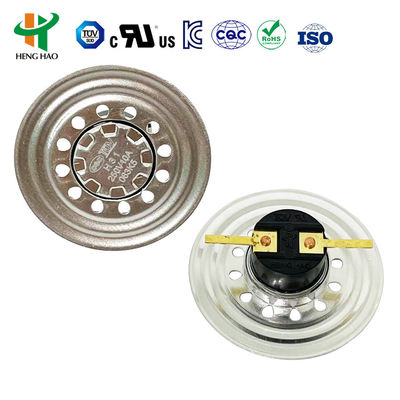

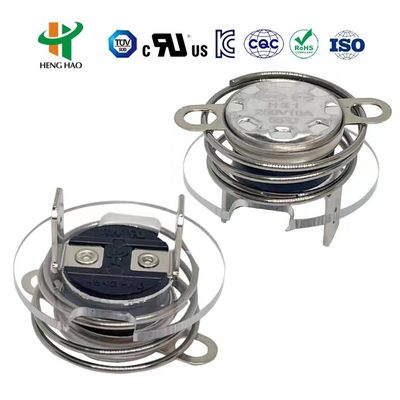

Mounting Bracket Movable or immovable options
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Housing Material Plastic or ceramic

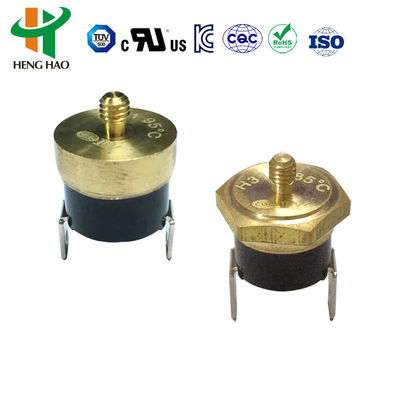

Temperature Sensor Face Aluminum cap or copper head
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 0
Reset Types Comparison

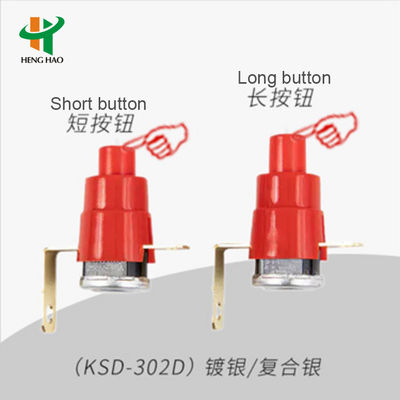

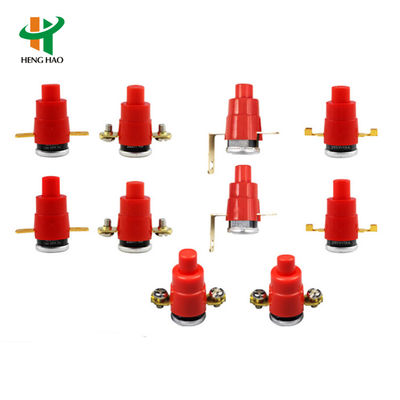

Manual Reset Type
Features bimetallic strip temperature sensing. When reaching action temperature, the circuit disconnects and requires manual reset via button press after temperature decreases by 20°C. Requires 4-6N force for reset.
Note: Ensure minimum 20.4mm clearance between reset button and cover for proper functionality.
Auto Reset Type
Similar bimetallic strip operation, but automatically resets when temperature decreases to specified point without manual intervention.
Applications
Widely used for temperature control in household appliances including:
  • Coffee pots
  • Automatic toasters
  • Laminators
  • Electric water pots
  • Steam guns
  • Steam irons
  • Wind warmers
  • Microwave ovens
  • Water dispensers
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
Custom temperature settings available per client requirements.
Certifications
UL, CQC, TUV and RoHS certified.
KSD301 Bimetal Thermostat with 100000 Cycles 250V 16A and 0-250℃ Temperature Range 1
