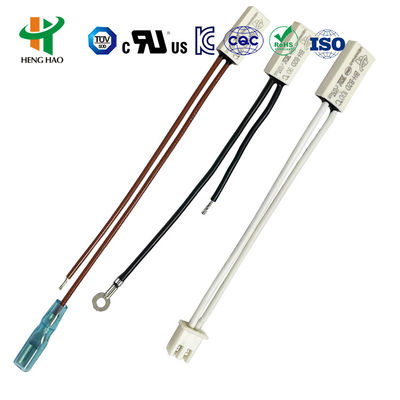

KSD9700 Temperature Controller Controlled Switch BW-ECP BW-ECM Bimetallic Thermostat
BW & BH series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.
KSD9700 Series Thermostat Specification
| Electrical Rating |
DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
| Open temperature |
(30~150)±5°C; 5°C a step |
| Reset temperature |
2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement. |
| Life times |
10000 times |
| Size |
L15mm W7.1mm H3.8mm |
| Lead wire |
#22 3266, end half tripping, length is 70mm, or according to customer's require |
| UL File no |
E487478 |
| CQC certificate no |
CQC16002142880 |
| TUV certificate no |
B160592241002 |
BH Series Thermal Protector Dimension
| Model |
Case |
Length(mm) |
Width(mm) |
High(mm) |
Vol.&Current |
Lead wire |

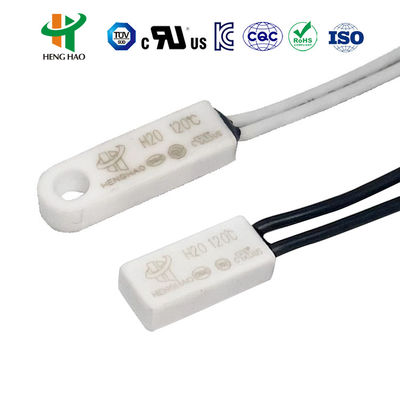

| H20 |
Plastic |
18.5 |
8 |
4 |
DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A |
#20 3135, end 5mm half tripping, length is 70mm, or according to customer's require |
| H21 |
Metal |
18.5 |
7.3 |
3.8 |
|
|
| H21 |
Metal |
20 |
8 |
4 |
AC250V 20A |
#16 3135 |

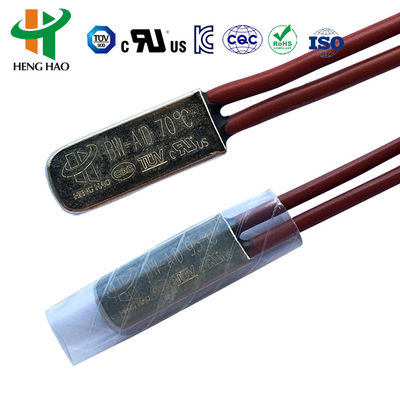

| BH-A1D |
Metal |
15 |
6.6 |
3.2 |
DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V |
#20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or according to customer's require |

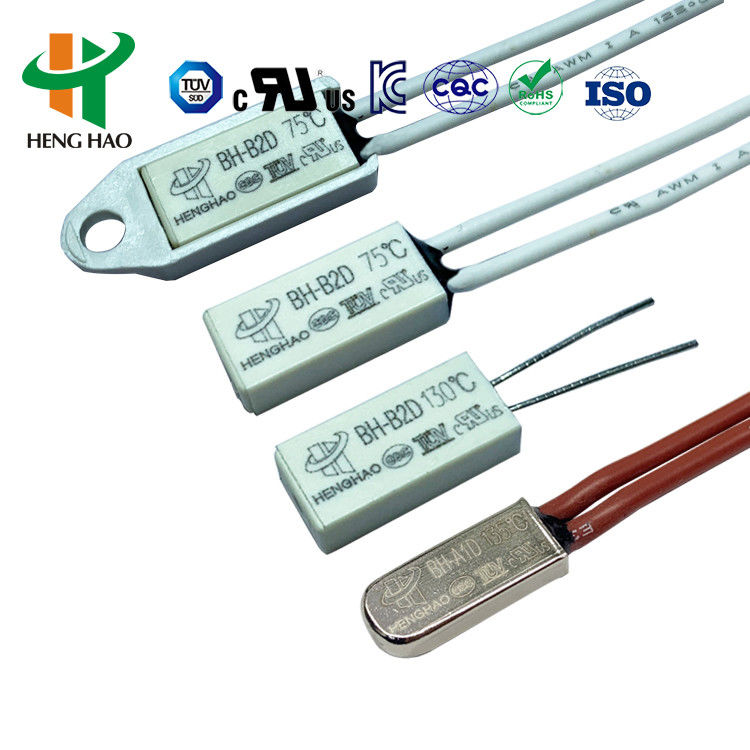

| BH-B2D |
Plastic |
15 |
7.1 |
3.8 |
|
|

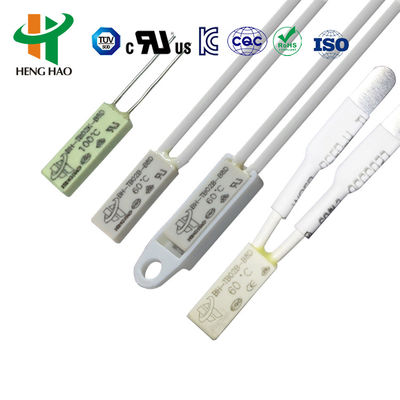

| BH-TB02B-B8D |
Plastic |
15 |
5.2 |
2.4 |
DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A |
3266-AWG24#, 3135-AWG24# or nickel strip normally, length is 70 mm or according to customer's require |
Temperature Code Reference
| Code |
Temperature |
Code |
Temperature |
| 30 |
30℃ |
100 |
100℃ |
| 35 |
35℃ |
105 |
105℃ |
| 40 |
40℃ |
110 |
110℃ |
| 45 |
45℃ |
115 |
115℃ |
| 50 |
50℃ |
120 |
120℃ |
| 55 |
55℃ |
125 |
125℃ |
| 60 |
60℃ |
130 |
130℃ |
| 70 |
70℃ |
135 |
135℃ |
| 75 |
75℃ |
140 |
140℃ |
| 80 |
80℃ |
145 |
145℃ |
| 85 |
85℃ |
150 |
150℃ |
| 90 |
90℃ |
|
|
Application and Instruction
BH series thermal protectors, effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.

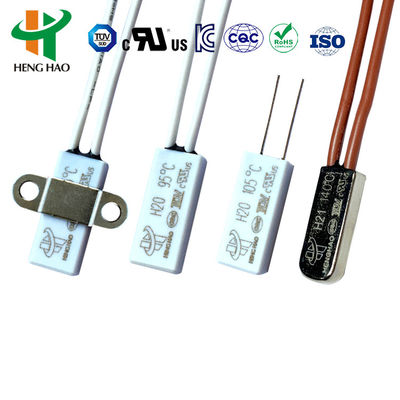

H20,H21 Series Thermostat Principle and Structure
H20,H21serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
The product UL, CQC, TUV and RoHS certification approval.
