KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector

KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector
KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector
KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector

Large Image :  KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: BH-TB02B-B8D
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.2~0.3PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 30-150℃ Case: Plastic
Highlight:

Bimetallic Thermostat Thermal Fuse

,

KW9700 Thermal Fuse

,

Auto Reset Thermal Fuse

KSD9700 Temperature Controlled Switch KW9700 Auto Reset Thermal Fuse Bimetallic Thermostat
The BW & BH series thermal protectors provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The bimetallic components respond to temperature and current changes, altering their state to either cut off or complete the circuit as needed for protection.

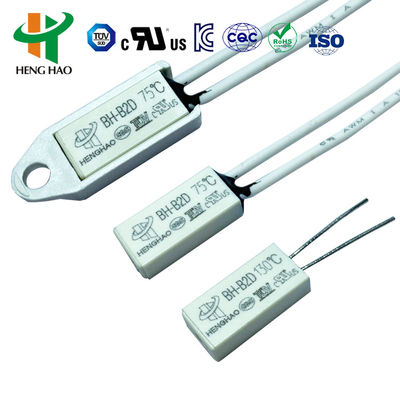

KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 times
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm, or according to customer's requirements
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length is 70mm, or custom
H21 Metal 18.5 7.3 3.8 - -
H21 Metal 20 8 4 AC250V 20A #16 3135

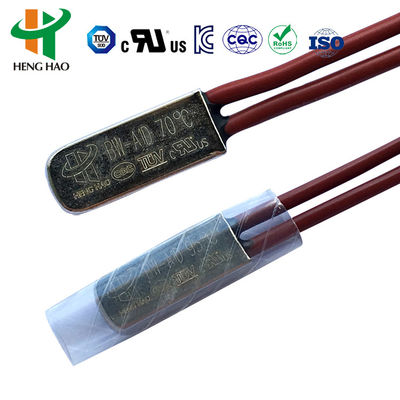

BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266,#22 3135, end 5mm half tripping, length is 70mm, or custom
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications
BH series thermal protectors serve as effective security devices for:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electric appliances
The enforced types (withstand pressure of 3.5MPa) are suitable for build-in installation in plastic coated motors.

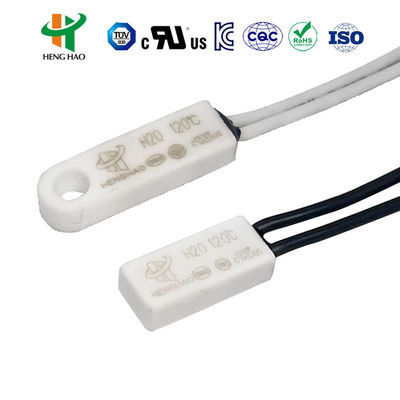

KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector 1
H20, H21 Series Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Contact Closure resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min free from phenomena of break down and flashover
H20, H21 Series Applications
These thermal protectors are suitable for:
  • Chargeable batteries
  • Ballasts
  • Massagers
  • Micro motors
  • Transformers
  • Electric tools
  • Heat electric appliances

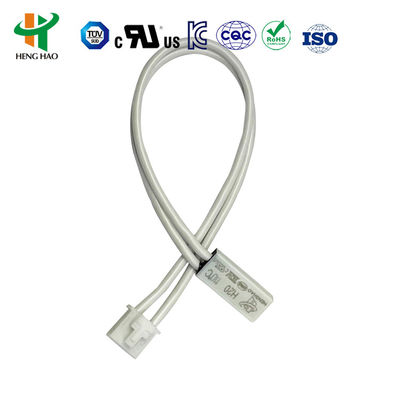

KSD9700 Bimetallic Thermostat with Normally Closed or Open Contacts 10000 Cycles Auto Reset Thermal Protector 2
This product has UL, CQC, TUV and RoHS certification approval.
