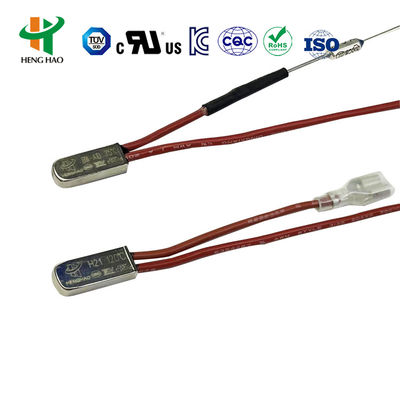

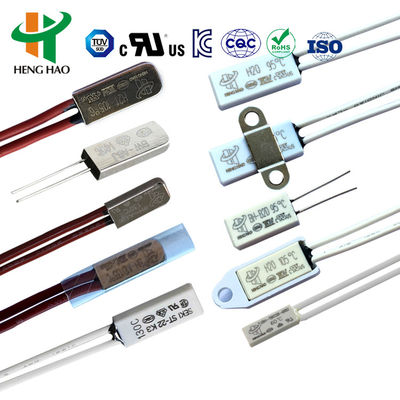

9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection

9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection
9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection
9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection

Large Image :  9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: BH-TB02B-B8D
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.12
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15
Payment Terms: D/P,T/T
Supply Ability: 10000000PER MONTH
Contact Now

9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

KSD9700 Temperature Protector Switch

,

9700K Temperature Protector Switch

,

BW9700 Temperature Protector Switch

9700K Thermostat KSD9700 Temperature Protector Switch BW9700 Temperature Controller
The BW & BH series thermostats provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The temperature and current-sensitive bimetallic components change state to cut off or restore the circuit when abnormal conditions occur. BH series protectors offer enhanced safety with no temperature effect lag during sudden current surges.
9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002

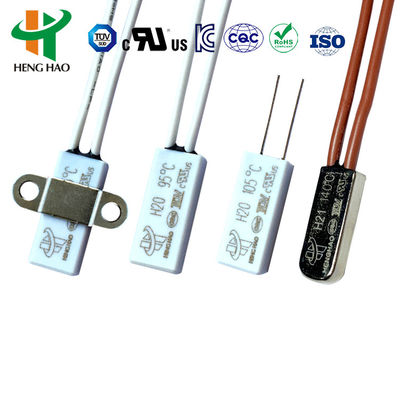

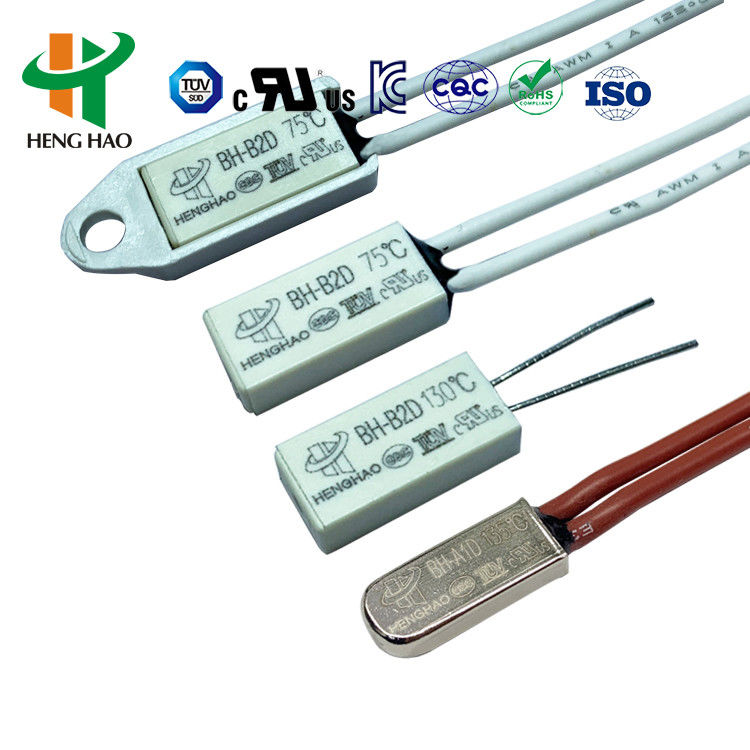

BH Series Thermal Protector Dimensions
Model Case Length(mm) Width(mm) Height(mm) Voltage & Current Lead wire
H20 Plastic 18.5 8 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 7.3 3.8 - -
H21 Metal 20 8 4 AC250V 20A #16 3135
BH-A1D Metal 15 6.6 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)
BH-B2D Plastic 15 7.1 3.8 - -
BH-TB02B-B8D Plastic 15 5.2 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications
BH series thermal protectors serve as effective security devices for:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Electric appliances
The 3.5MPa pressure-resistant models are suitable for plastic-coated motor installations.
9700K Thermostat Temperature Controller with 100000 Cycles Over-Current and Over-Temperature Protection 1
This product holds UL, CQC, TUV, and RoHS certifications.
