KSD301 Temperature Controller with 0-250℃ Range Normally Closed or Open UL CQC TUV RoHS Certified

Large Image : KSD301 Temperature Controller with 0-250℃ Range Normally Closed or Open UL CQC TUV RoHS Certified

Product Details:

Place of Origin:	DONGGUAN,CHINA
Brand Name:	HENGHAO
Certification:	UL CQC TUV ROHS
Model Number:	KSD301

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	US$0.2-0.3PER,PC
Packaging Details:	1650PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ,T/T
Supply Ability:	1000000 PCS PER MONTH

Contact Now

KSD301 Temperature Controller with 0-250℃ Range Normally Closed or Open UL CQC TUV RoHS Certified

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃
Highlight:	KSD302 Temperature Switch , KSD301 Temperature Switch , KSD301 Temperature Controller

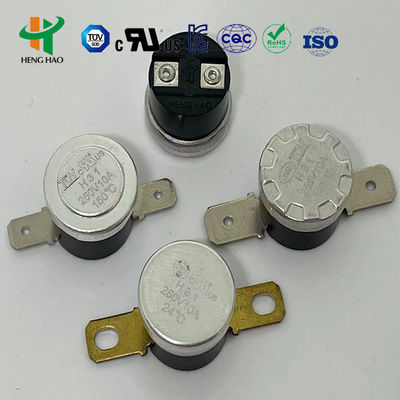

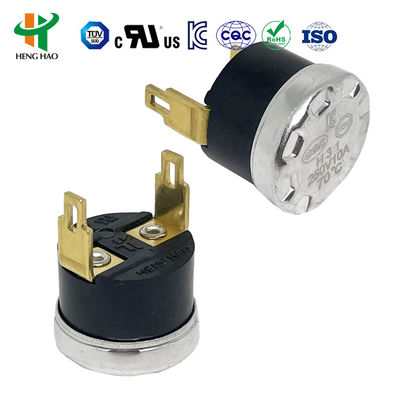

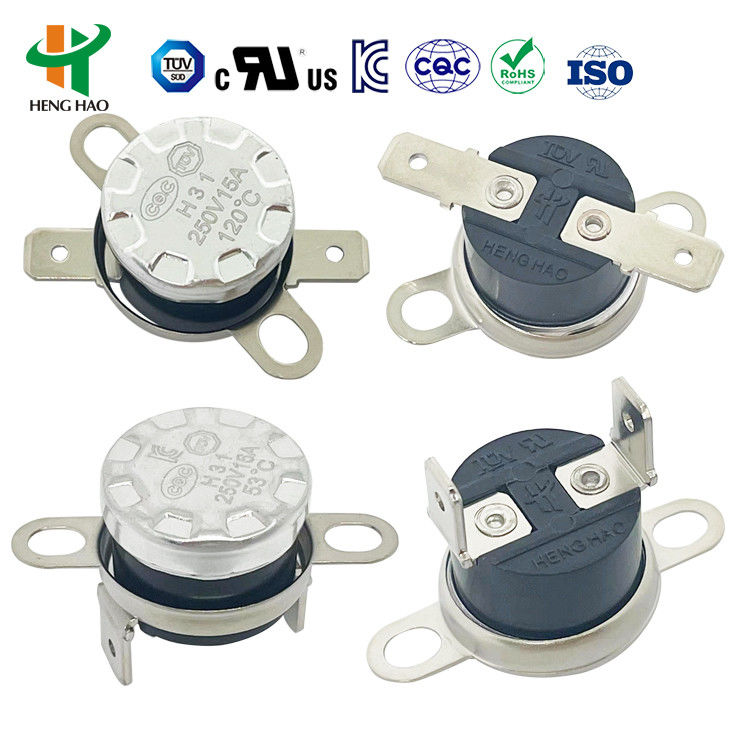

KSD301 Temperature Controller / KSD302 Temperature Switch

The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended service life, and reduced radio interference.

Product Specifications

Parameter	Specification
Voltage & Current	AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature	0~250℃
Recovery/Action Temp Difference	0 to 25 degrees (customizable)
Temperature Deviation	±3/±5/±10°C (customizable)
Circuit Resistance	≤50mΩ (Initial value)
Insulation Resistance	AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle	≥100,000 operations
Contact Type	Normally closed or Normally open

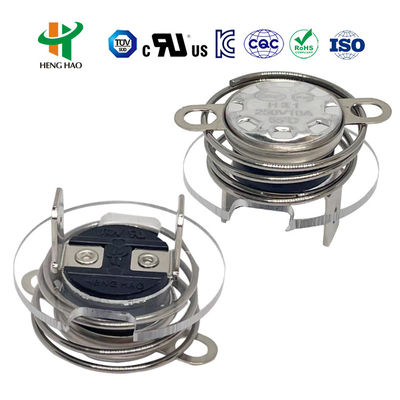

Mounting Bracket	Movable or immovable
Terminal Type	187 series (4.80.5mm, 4.80.8mm) or 250 series (6.3*0.8mm)
Terminal Angle	0~90°C (adjustable)
Housing Material	Plastic or ceramic

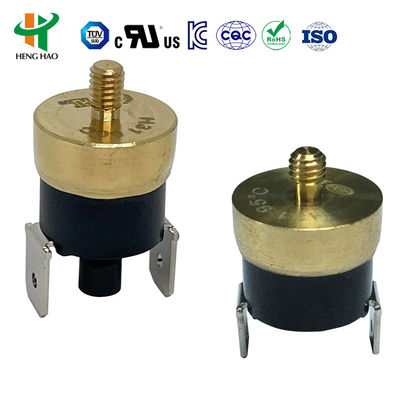

Temperature Sensor Face	Aluminum cap or copper head

Reset Types

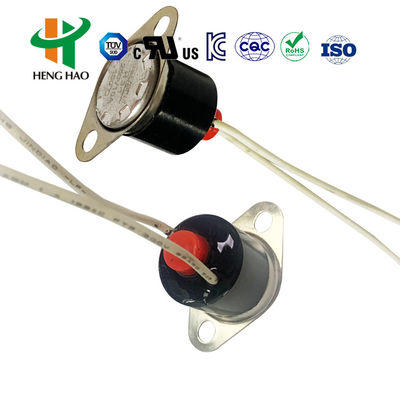

Manual Reset Type

When temperature reaches the action range, the bimetal strip snaps to disconnect. Requires manual reset button press (4-6N force recommended) after temperature drops 20°C. Minimum 20.4mm clearance required between reset button and cover.

Auto Reset Type

Automatically resets when temperature drops to specified point without manual intervention.

Applications

Widely used in household appliances including coffee makers, toasters, laminators, electric kettles, steam guns, irons, warmers, microwave ovens, and water dispensers.

Standard Temperature Settings (Auto Reset Type)

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃±5℃	5℃±5℃	95℃±5℃	80℃±5℃	205℃±5℃	175℃±10℃
-15℃±5℃	5℃±5℃	100℃±5℃	80℃±10℃	210℃±5℃	180℃±10℃
-10℃±5℃	5℃±5℃	105℃±5℃	85℃±10℃	215℃±5℃	185℃±10℃
0℃±5℃	-10℃±5℃	110℃±5℃	90℃±10℃	220℃±5℃	190℃±10℃
5℃±5℃	-5℃±5℃	115℃±5℃	95℃±10℃	225℃±5℃	195℃±10℃
10℃±5℃	0℃±5℃	120℃±5℃	100℃±10℃	230℃±5℃	200℃±10℃
15℃±5℃	5℃±5℃	125℃±5℃	105℃±10℃	235℃±5℃	205℃±10℃
20℃±5℃	5℃±5℃	130℃±5℃	110℃±10℃	240℃±5℃	210℃±10℃
25℃±5℃	10℃±5℃	135℃±5℃	115℃±10℃	245℃±5℃	215℃±10℃
30℃±5℃	15℃±5℃	140℃±5℃	120℃±10℃	250℃±5℃	220℃±10℃

Custom temperature settings available upon request

Certifications

UL, CQC, TUV, VDE, and RoHS certified
