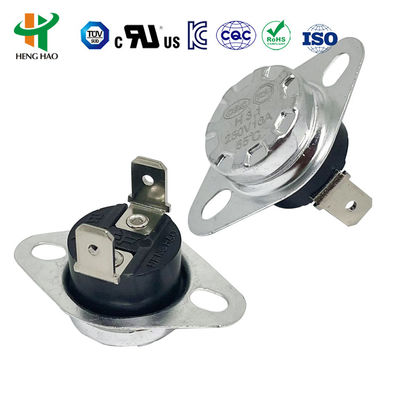

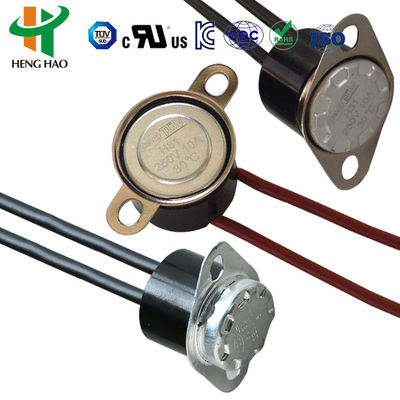

KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range

KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range
KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range
KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range

Large Image :  KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD201
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.15
Packaging Details: 2100PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 100000PCS PER MONTH
Contact Now

KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

Temperature Protector KSD301 Thermostat

,

Manual Reset KSD301 Thermostat

,

KSD301 Thermostat Temperature Protector

KSD301/KSD302 Thermostat Temperature Protector Controller Switch
The KSD series thermostat utilizes a bimetal disc mechanism that snaps into action with temperature changes. This snap action activates internal contacts to open or close circuits, featuring fixed working temperatures, reliable operation, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat with 250V 16A Rating 100000 Cycles and 0~250℃ Temperature Range 0
Technical Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery/Action Temp Difference 0 to 25°C (customizable)
Temperature Deviation ±3/±5/±10°C (customizable)
Circuit Resistance ≤50mΩ (Initial value)
Insulation Resistance AC50Hz 1500V/min, no breakdown (Normal State)
Life Cycle ≥100,000 operations
Contact Type Normally closed or Normally open
Mounting Bracket Movable or immovable
Terminal Type 187 series (4.8*0.5mm/4.8*0.8mm) or 250 series (6.3*0.8mm)
Terminal Angle 0~90° adjustable
Housing Plastic or ceramic
Temperature Sensor Face Aluminum cap or copper head
Reset Types
Manual Reset Type: Requires physical reset button activation after temperature drops 20°C from trip point. Reset force: 4-6N. Minimum 20.4mm clearance required between reset button and cover.
Auto Reset Type: Automatically resets when temperature returns to specified level without manual intervention.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
(Complete temperature range table shown with similar formatting. Custom settings available per client request.)
Applications
  • Household appliances: coffee makers, toasters, electric kettles
  • Heating equipment: steam irons, warmers, water dispensers
  • Industrial devices: laminators, microwave ovens
Certifications: UL, CQC, TUV, RoHS compliant
