JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset

JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset
JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset

Large Image :  JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year

JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

ksd-01f bimetallic thermostat

,

JUC-31F thermal fuse

,

JUC-31F temperature controller

JUC-31F Temperature Controller / Thermal Fuse / Bimetallic Thermostat
Product Overview

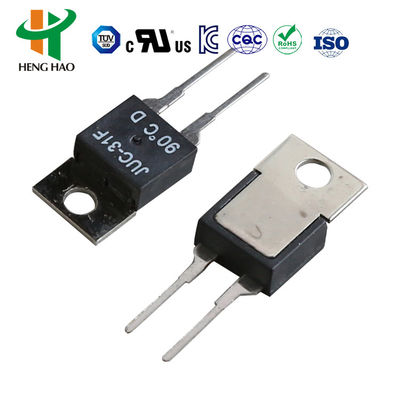

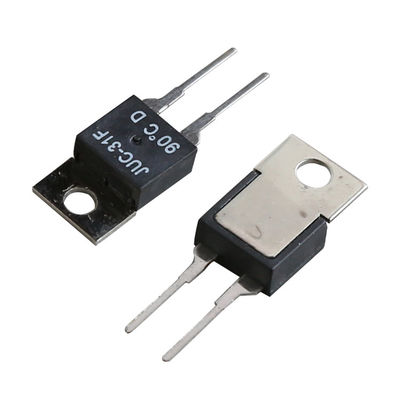

The JUC-31F is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This compact, reliable component offers sensitive and accurate temperature control with easy PCB installation.

JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset 0
Technical Specifications
  • Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
  • Contact type: ID (closed) / H (open)
  • Overheating temperature: 250°C
  • Contact resistance: < 50mΩ
  • Insulation resistance: > 100 mΩ
  • Dielectric withstand voltage: > 1500V
  • Product life: > 10,000 cycles
  • Weight: 1.7 g
  • Action temperature deviation: ±5°C
Operating Temperature (°C) Recovery Temperature (°C) Error Testing Method
0-99 5-35 ±3°C 1°C/min
100-130 7-40 ±5°C
Applications

Ideal for temperature control and protection in:

  • Electric equipment and household appliances
  • Circuit board thermal overload protection
  • Power supplies (communication, switching, UPS, medical, fire)
  • Audio amplifier equipment
  • Rechargeable devices and rectifiers
  • Welding equipment and aerospace instrumentation
  • Automation and military equipment

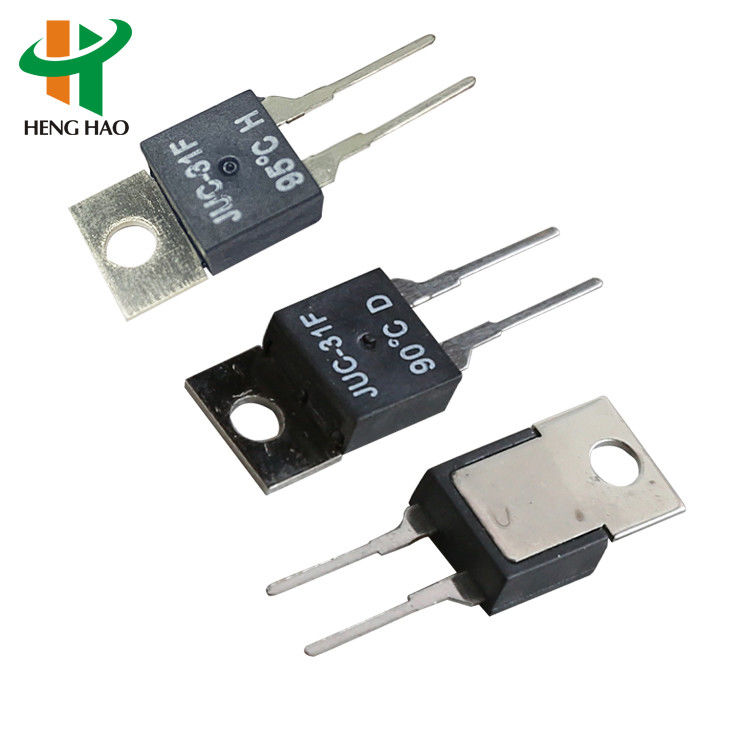

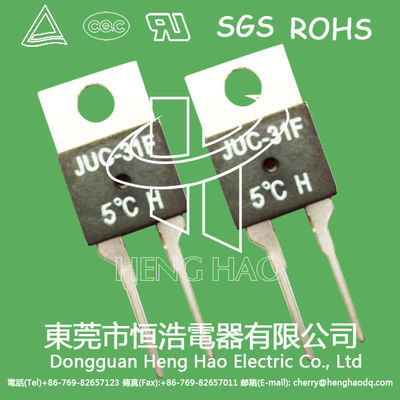

JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset 1 JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset 2 JUC-31F Thermal Protection Switch Bimetallic Thermostat with 0~150°C Temperature Range Normally Closed or Open Auto or Manual Reset 3
Certifications: UL, CQC, VDE, and RoHS compliant
17AMH Thermal Protector / Thermostat
Product Overview

The 17AMH series features a compact design with quick, accurate action. Custom lead configurations available to meet specific requirements.

Technical Specifications
  • Electrical rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact life cycles: 10,000+ cycles (AC-125V 15A, AC-250V 10A); 100,000+ cycles (AC-125V 5A)
  • Operating temperature: 50-180°C
  • Temperature tolerance: ±2°C/±3°C/±5°C
  • Reset temperature: 10-45°C below trip temperature
  • Working times: Over 10,000 cycles
Product Coding System

17AM XXX A/B 5 A,B,C,D...Z

  • 17AMH: Product series
  • XXX: Trip temperature in °C
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type
