KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection

KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection
KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection
KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection

Large Image :  KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection

Product Details:
Place of Origin: china
Brand Name: HENGHAO
Certification: ul tuv cqc kc
Model Number: ksd9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD 0.2~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 100000000PCS PER MONTH
Contact Now

KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

HCET-B Bimetallic Thermostat

,

KSD9700 Bimetallic Thermostat

,

HC25 Bimetallic Thermostat

KSD9700 HCET-B Bimetallic Thermostat HCET-A HC25 Bimetallic Thermostat HCET-A5 Thermal Fuse
BW & BH series protectors offer reliable over-current and over-temperature protection. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The temperature and current-sensitive bimetallic components change state to cut off or restore the circuit when abnormal conditions occur. BH series provides enhanced safety with immediate response to sudden current surges.

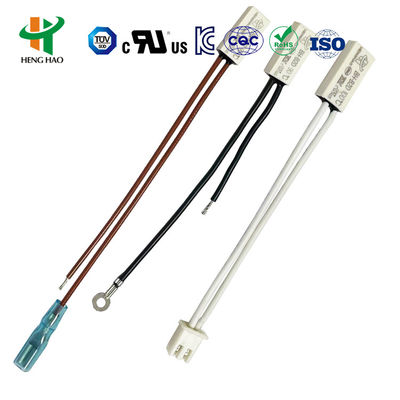

KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance) or custom specifications available
Life times 10,000 cycles
Size L15mm × W7.1mm × H3.8mm
Lead wire #22 3266, end half tripping, 70mm length (custom options available)
Certifications UL E487478 | CQC16002142880 | TUV B160592241002
BH Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm length (custom options available)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135
BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V Multiple options available

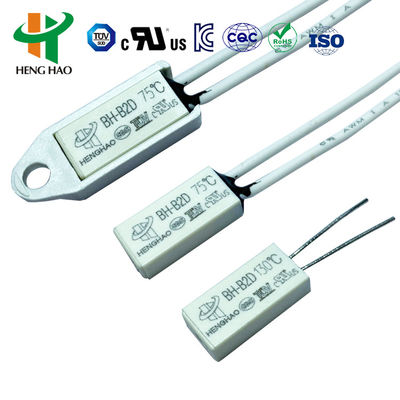

BH-B2D Plastic 15 × 7.1 × 3.8 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip

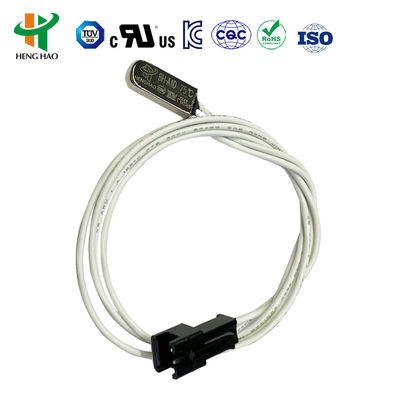

KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection 1
BH Series Thermostat Applications
These reliable security protectors are widely used in:
  • 1.5HP motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electrical equipment
The 3.5MPa pressure-resistant models are ideal for plastic-coated motor installations.
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃

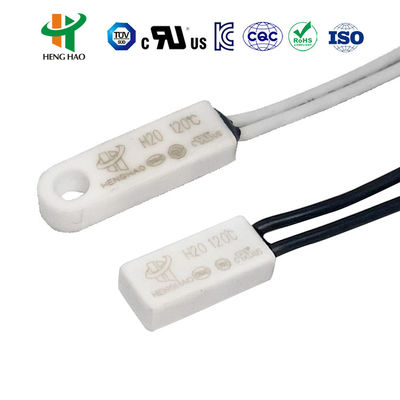

H20/H21 Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C steps
Reset temperature 2/3 of action temperature (±15°C tolerance)
Life times 10,000 cycles
Contact resistance ≤50mΩ
Insulation resistance ≥100mΩ
Electric strength AC1500V/1min (no breakdown or flashover)
H20/H21 Series Applications
These protectors are suitable for:
  • Rechargeable batteries
  • Ballasts
  • Massagers
  • Micro motors
  • Transformers
  • Electric tools
  • Heating appliances
KSD9700 Bimetallic Thermostat with 0-250℃ Temperature Range Bakelite Case and Normally Closed Contact for Thermal Protection 2
All products are UL, CQC, TUV and RoHS certified.
