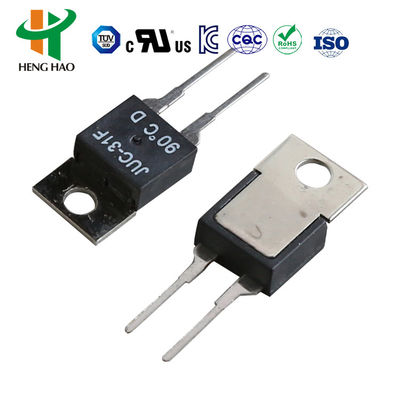

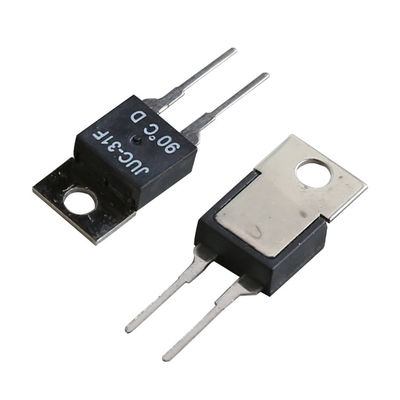

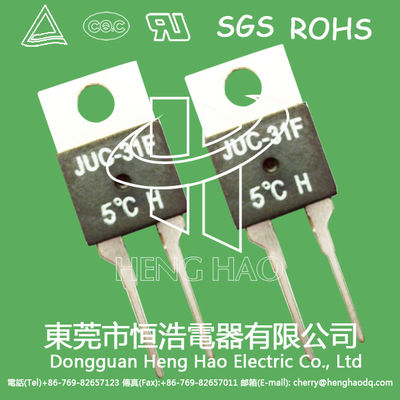

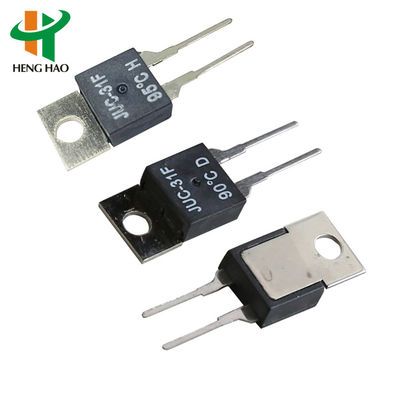

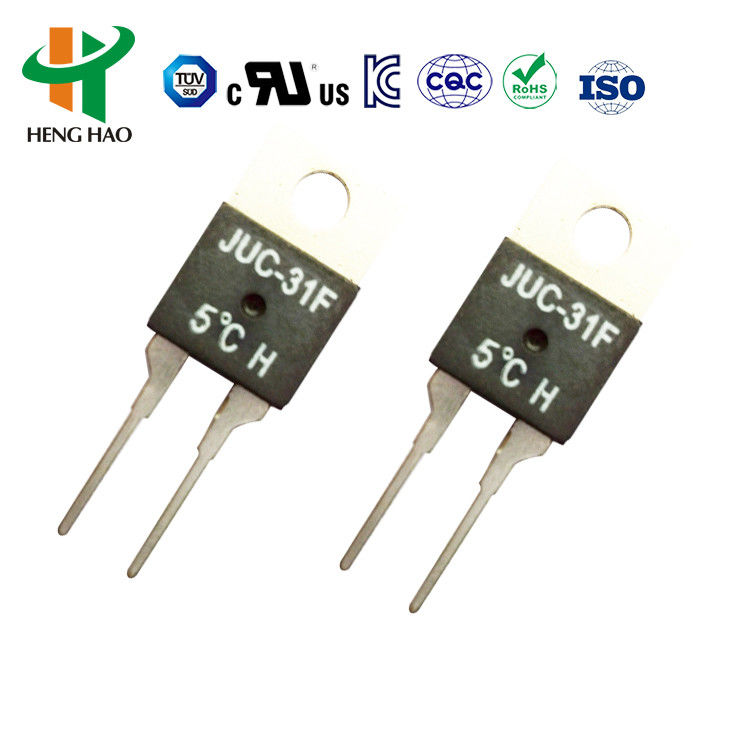

JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset

JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset

Large Image :  JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV
Model Number: KSD-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD0.25~0.35
Packaging Details: 2000pcs / carton
Delivery Time: 10~15 work days
Payment Terms: T/T
Supply Ability: 10000000PCS per month year
Contact Now

JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 10000 Cycles Voltage & Current: 250V 2A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0~150 Case: Bakelite
Highlight:

JUC-31F Temperature Controller

,

Ksd-O1f Thermal Fuse

,

Ksd-O1f Bimetallic Thermostat

JUC-31F Ksd-O1f Temperature Controller Thermal Fuse Bimetallic Thermostat
Product Overview

The JUC-31F thermostat is a touch-type plastic snap temperature thermostat featuring international TO220/Y220 standard packaging. This highly reliable component offers sensitive and accurate temperature control with compact dimensions and lightweight construction for easy installation on PCB circuit boards, heat equipment, and power devices.

Key Features
  • High reliability and precision temperature sensing
  • Compact size and lightweight design (1.7g)
  • Easy installation on various equipment
  • International standard packaging
Technical Specifications
Parameter Value
Contact Load AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
Contact Type ID (closed) H (open)
Operating Temperature Range 0-130°C
Recovery Temperature 5-40°C below operating temperature
Temperature Accuracy ±3°C (0-99°C), ±5°C (100-130°C)
Overheating Temperature 250°C
Contact Resistance <50mΩ
Insulation Resistance >100mΩ
Dielectric Withstand Voltage >1500V
Product Life >10,000 cycles
Applications

The JUC-31F thermostat is ideal for temperature control and protection in:

  • Electric equipment and household appliances
  • Circuit board thermal overload protection
  • Communication and switching power supplies
  • Medical power supplies and audio amplifier equipment
  • Rechargeable devices and welding equipment
  • Aerospace instrumentation and military applications
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset 0
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset 1
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset 2
JUC-31F Ksd-O1f Temperature Controller Thermal Fuse with 0~150 Temperature Range Normally Closed or Open Auto or Manual Reset 3
Certified: UL, CQC, VDE, and RoHS compliant. Professional thermal protector and thermostat supplier with manufacturing capabilities.
17AMH Thermal Protector / Thermostat
Product Overview

The 17AMH is an excess-current thermal protector with compact design and quick, accurate action. Available with various lead configurations to meet specific customer requirements.

Technical Specifications
Parameter Value
Electrical Rating AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles >10,000 cycles (AC-125V 15A, AC-250V 10A)
>100,000 cycles (AC-125V 5A)
Operating Temperature 50-180°C
Temperature Tolerance ±2°C, ±3°C, ±5°C
Reset Temperature 10-45°C below trip temperature
Product Coding System

17AMH XXX A/B 5 A,B,C,D...Z

  • 17AMH: Product series
  • XXX: Trip temperature in °C
  • A/B: Terminal direction (A=same, B=opposite)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type

Tag:

bimetal thermostat switch,

temperature protection switch,

bimetal thermal fuse
