BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch

BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch
BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch
BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch

Large Image :  BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: BH-TB02B-B8D
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.12
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15
Payment Terms: D/P,T/T
Supply Ability: 10000000PER MONTH
Contact Now

BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

KSD9700 Temperature Protector Switch

,

Temperature Protector Switch 250V 5A 9700K

,

250V 5A 9700K Bimetallic Thermostat

BW-ABS KSD9700 Temperature Protector Switch 250V 5A 9700K Bimetallic Thermostat
The BW & BH series temperature protectors provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality. The bimetallic components respond to temperature and current changes to either cut off or restore the circuit as needed.
BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch 0
BH Series Thermostat Specifications
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 times
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135

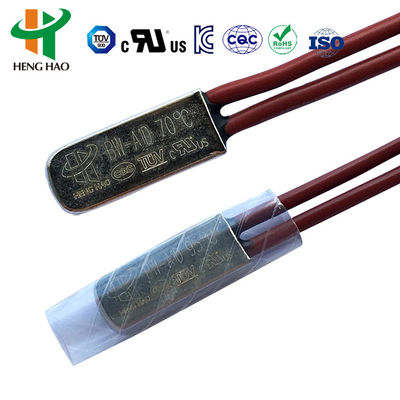

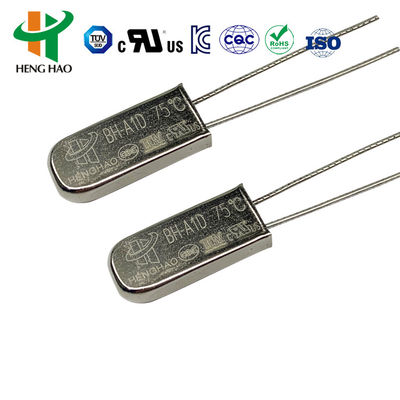

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135 (customizable)

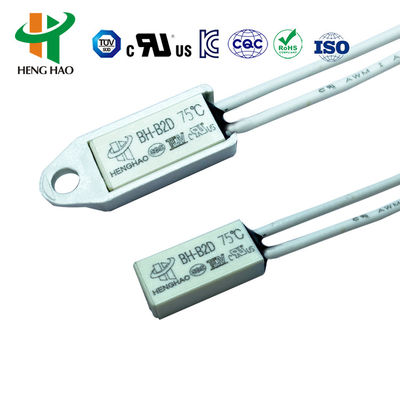

BH-B2D Plastic 15 × 7.1 × 3.8

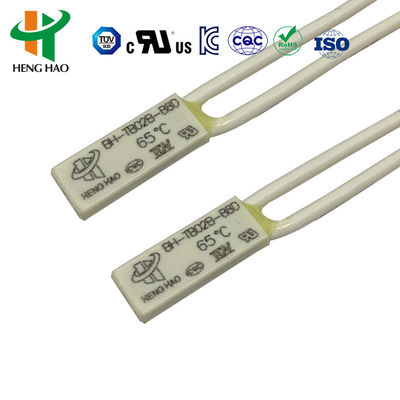

BH-TB02B-B8D Plastic 15 × 5.2 × 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications
BH series thermal protectors are effective security devices used in:
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electric appliances
Enforced types can withstand pressure up to 3.5MPa for build-in installation in plastic coated motors.
BW-ABS KSD9700 Bimetallic Thermostat 250V 16A 100000 Cycles 9700K Temperature Protector Switch 1
This product has UL, CQC, TUV and RoHS certification approval.
