Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open

Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open
Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open
Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open

Large Image :  Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

KW9700 Auto Reset Thermal Fuse Thermostat

,

TB02-BB8D Auto Reset Thermal Fuse Thermostat

,

250V 5A Thermostat

KW9700 TB02-BB8D Auto Reset Thermal Fuse Thermostat 250V 5A

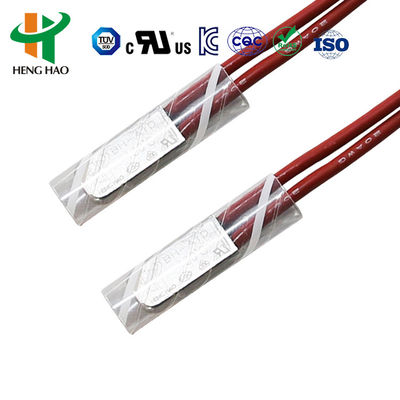

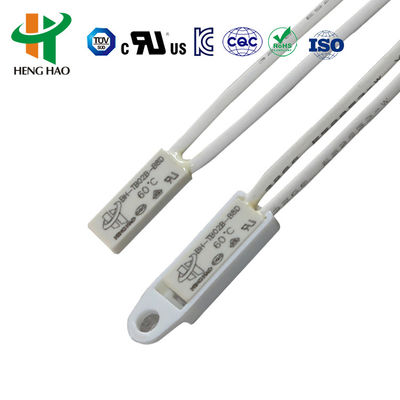

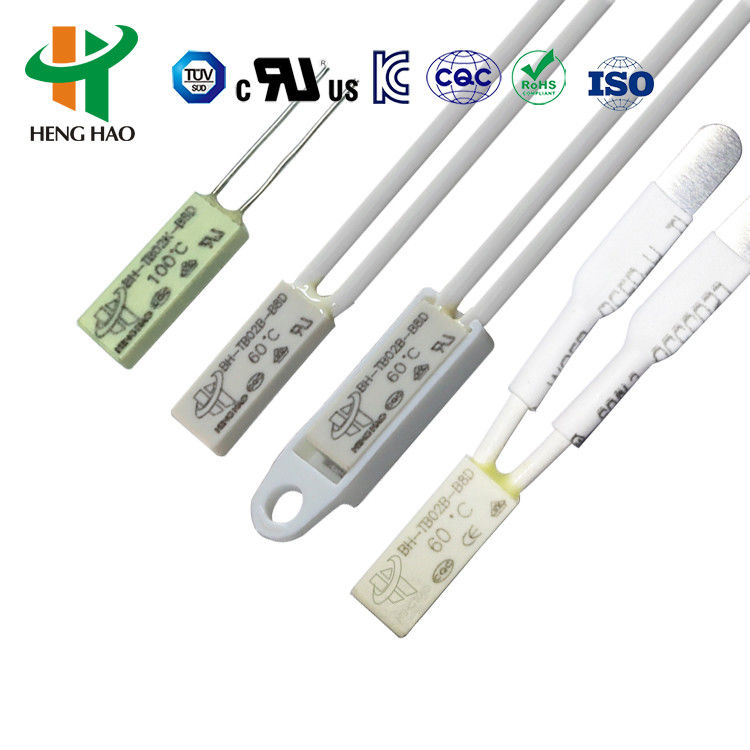

The KW9700 TB02-BB8D Auto Reset Thermal Fuse Thermostat is part of the BW & BH series, designed to provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, silent operation, and automatic reset functionality.
Key Features
  • Automatically resets after temperature normalizes
  • Sealed construction for durability
  • Low internal resistance
  • Noise-free operation
  • Quick response to temperature and current changes
  • Safer than standard protectors with no temperature lag during sudden current spikes

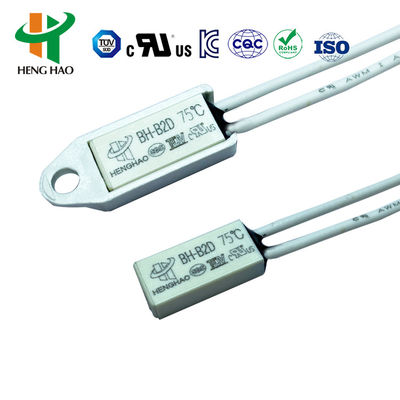

BH Series Specifications
Parameter Specification
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open Temperature (30~150)±5°C; 5°C steps
Reset Temperature 2/3 of action temperature (±15°C tolerance) or customized
Life Expectancy 10,000 cycles
Dimensions L15mm × W7.1mm × H3.8mm
Lead Wire #22 3266, 70mm length (customizable)
Certifications UL (E487478), CQC (CQC16002142880), TUV (B160592241002)
Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open 0

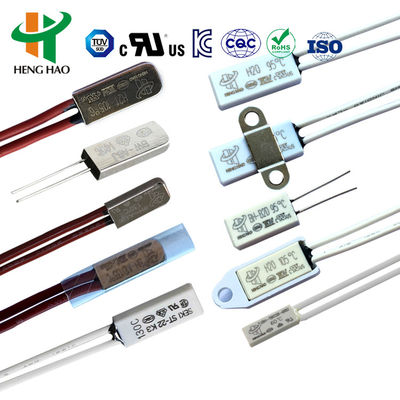

BH Series Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, 70mm length (customizable)
H21 Metal 18.5 × 7.3 × 3.8 AC250V 20A #16 3135

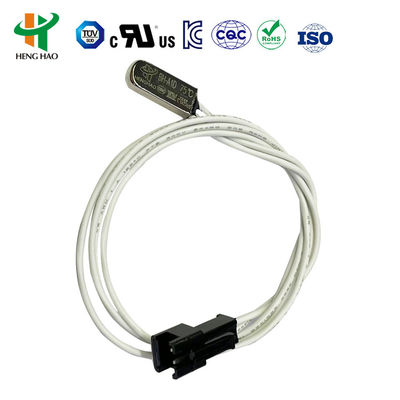

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V Multiple options available
Temperature Codes
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
Applications
The BH series thermal protectors are effective security devices used in:
  • 1.5 HP motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Portable power tools
  • Various electrical equipment
Enforced types can withstand pressures up to 3.5MPa, making them suitable for plastic-coated motor installations.
Auto Reset Thermal Fuse Thermostat with Over-Current and Over-Temperature Protection Normally Closed or Normally Open 1
Certifications: UL, CQC, TUV, and RoHS compliant.
