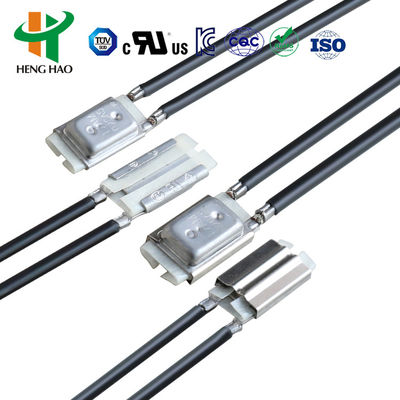

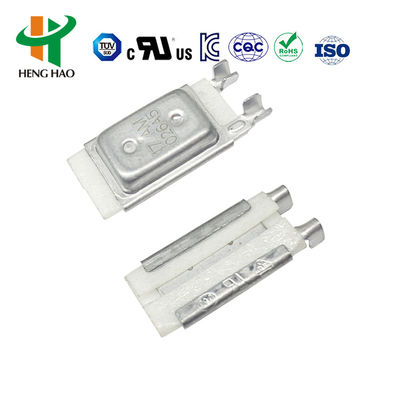

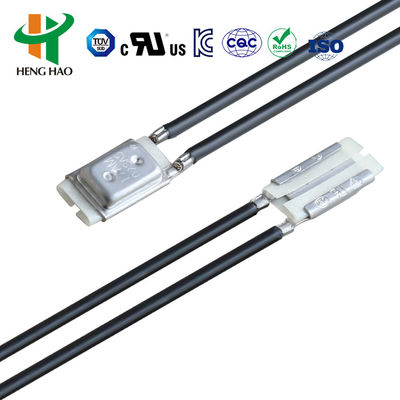

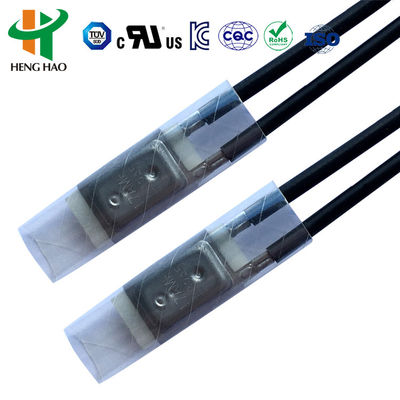

17AM 50-150℃ Temperature Controller Thermal Protector with Normally Closed or Open and Auto or Manual Reset

The 17AM thermal protector is an excess-current protector with compact design, quick and accurate action. It can be customized with different types of leads according to customer requirements.

• Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
• Contact Life Cycles:
  • AC-125V 15A, AC-250V 10A: >10,000 cycles
  • AC-125V 5A: >100,000 cycles
• Operating Temperature Range: 50-180°C
• Temperature Tolerance: ±2°C/±3°C/±5°C
• Reset Temperature: 10-45°C below trip temperature
• Working Times: Over 10,000 operations

17AM_XXX_A/B_5_A,B,C,D...Z

• 17AMH: Product series number
• XXX: Trip temperature in °C code
• A/B: Terminal direction (A=same, B=opposite)
• 5: OFF temperature tolerance code
• A-Z: Connecting wire type

The 17AM thermal protector is suitable for:

• Motors and commutators for fluorescent lamps
• Transformers and laminators
• Lamps and lighting equipment
• Cover sealing machines
• Various household appliances

UL, CQC, VDE and RoHS certified.

Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it will disconnect quickly. The contact point cannot reset automatically - it requires manual reset by pushing the reset button when temperature declines by 20°C.
