Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection

Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection
Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection
Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection

Large Image :  Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL TUV CQC
Model Number: bw-abs
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.1~0.5PCS
Packaging Details: 2000PCS /CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PCS PER MONTH
Contact Now

Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Bakelite
Highlight:

BW-ABS Auto Reset Thermal Fuse Thermostat

,

TB02-BB8D Auto Reset Thermal Fuse Thermostat

,

KW9700 Auto Reset Thermal Fuse Thermostat

BW-ABS TB02-BB8D KW9700 Auto Reset Thermal Fuse Thermostat BW-ABJ Temperature Controller
The BW & BH series thermal protectors provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The bimetal components respond to temperature and current changes, altering their state to either cut off or restore the circuit as needed.
Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection 0
BH Series Thermostat Specifications
Specification Details
Electrical Rating DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature (30~150)±5°C; 5°C a step
Reset temperature 2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times 10000 cycles
Size L15mm W7.1mm H3.8mm
Lead wire #22 3266, end half tripping, length is 70mm (customizable)
Certifications UL File no: E487478
CQC certificate no: CQC16002142880
TUV certificate no: B160592241002
BH Series Thermal Protector Dimensions
Model Case Dimensions (mm) Voltage & Current Lead Wire
H20 Plastic 18.5 × 8 × 4 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A #20 3135, end 5mm half tripping, length 70mm (customizable)
H21 Metal 18.5 × 7.3 × 3.8 - -
H21 Metal 20 × 8 × 4 AC250V 20A #16 3135

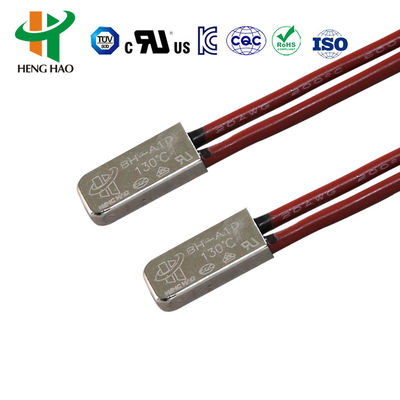

BH-A1D Metal 15 × 6.6 × 3.2 DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V #20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)

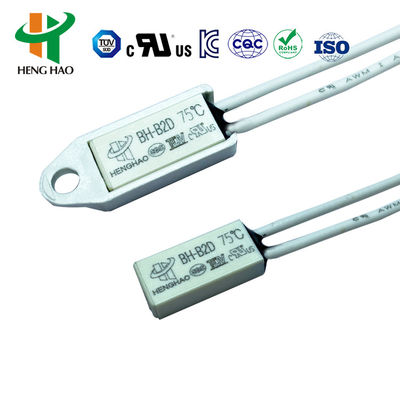

BH-B2D Plastic 15 × 7.1 × 3.8 - -

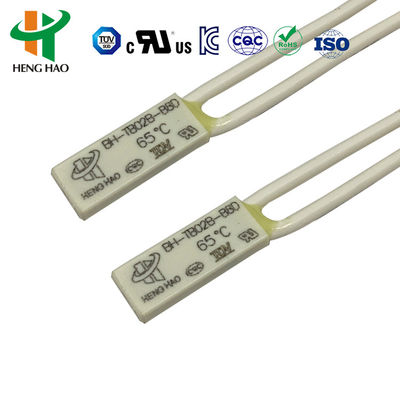

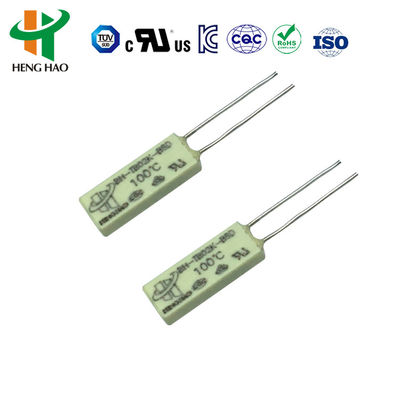

BH-TB02B-B8D Plastic 15 × 5.2 × 2.4 DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A 3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)
Temperature Code Reference
Code Temperature Code Temperature
30 30℃ 100 100℃
35 35℃ 105 105℃
40 40℃ 110 110℃
45 45℃ 115 115℃
50 50℃ 120 120℃
55 55℃ 125 125℃
60 60℃ 130 130℃
70 70℃ 135 135℃
75 75℃ 140 140℃
80 80℃ 145 145℃
85 85℃ 150 150℃
90 90℃
Applications
  • 1.5 horsepower motors
  • Lighting devices
  • Inverter welding machines
  • Switch power supplies
  • Rechargeable battery packs
  • Fluorescent lamp ballasts
  • Portable power tools
  • Electric appliances
H20/H21 Series Specifications
Contact Closure resistance: ≤50mΩ
Insulation resistance: ≥100mΩ
Electric strength: AC1500V/1min free from phenomena of break down and flashover
Auto Reset Thermal Fuse Thermostat with Normally Closed or Normally Open Function for Over-Current and Over-Temperature Protection 1
This product has UL, CQC, TUV and RoHS certification approval.
