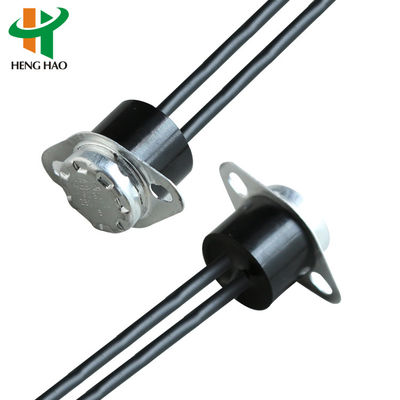

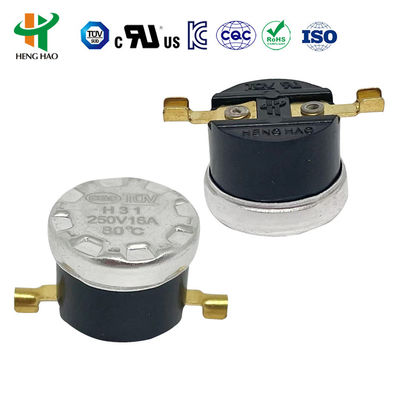

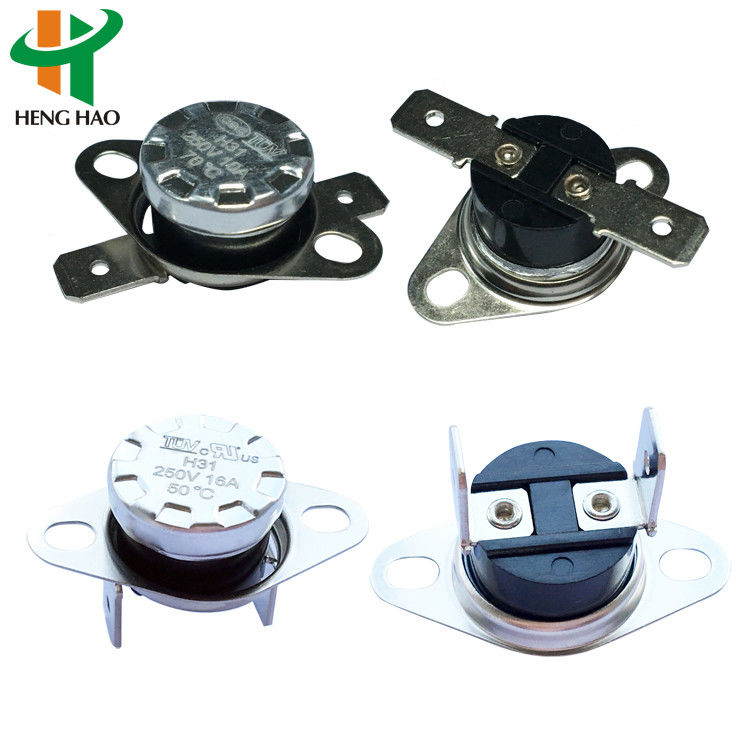

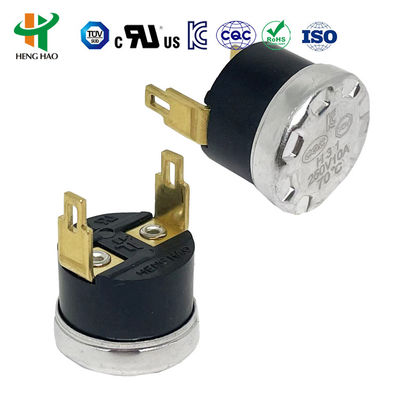

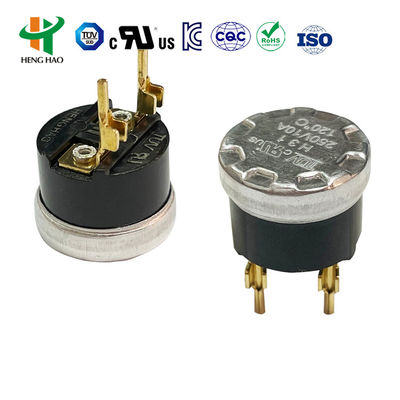

KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset

KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset
KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset
KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset

Large Image :  KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset

Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: HENGHAO
Certification: UL CQC TUV ROHS
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: US$0.2-0.3PER,PC
Packaging Details: 1650PCS PER CARTON
Delivery Time: 7-10 WORKING DAYS
Payment Terms: TT FOB SZ,T/T
Supply Ability: 1000000 PCS PER MONTH
Contact Now

KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃
Highlight:

ksd301 thermal switch

,

ksd301 250v 16a

,

ksd301 temperature switch

KSD301 Thermal Switch 250V 16A Temperature Switch Temperature Controller
The KSD series thermostat operates on the principle of bimetal discs that snap into action when sensing temperature changes. This snap action activates internal contacts to open or close the circuit. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended service life, and reduced radio interference.
KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset 0
Technical Specifications
Parameter Value
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
Terminal Angle Bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset 1
Reset Types
Manual Reset Type
Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it quickly disconnects. The contact point cannot reset automatically - the circuit must be reconnected by pressing the reset button when temperature declines by approximately 20°C. Requires 4~6N force for reset. Minimum 20.4mm clearance required between reset button and cover for proper operation.
Auto Reset Type
Similar operation to manual reset type, but automatically resets and restarts operation when temperature declines to the fixed reset point without manual intervention.
Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Standard Temperature Settings (Auto Reset Type)
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
The product has UL, CQC, TUV and RoHS certification approval.
KSD301 Thermal Switch Bimetal Thermostat with 0-250℃ Temperature Range Normally Closed or Open Auto or Manual Reset 2
