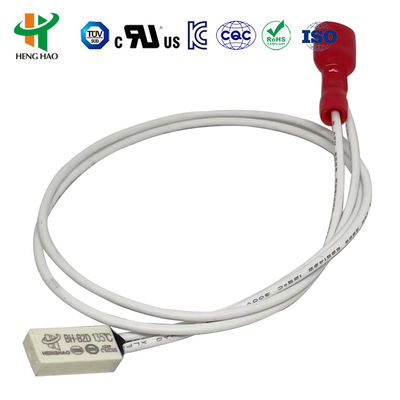

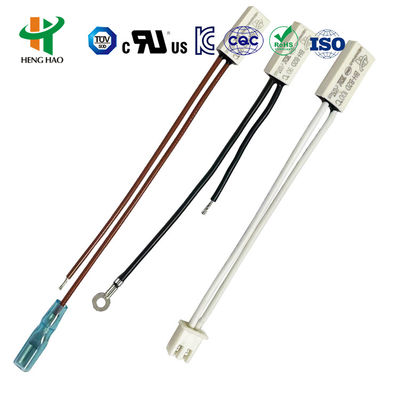

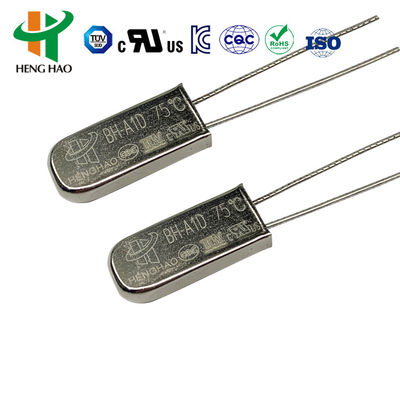

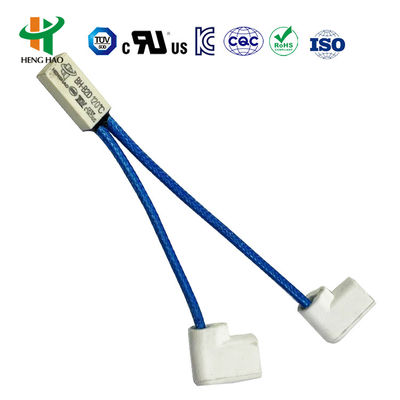

KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size

KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size
KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size
KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size

Large Image :  KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size

Product Details:
Place of Origin: Guangdong, China
Brand Name: HENGHAO
Certification: UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.30/pieces 1000-4999 pieces
Packaging Details: 2000PCS/CARTON
Delivery Time: 9WORKDAYS
Supply Ability: 5000000 Piece/Pieces per Month
Contact Now

KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size

Description
Type: Switch Snap Action Application: Motor, Power Supply
Supplier Type: Original Manufacturer Cross Reference: BW-A1D
Media Available: Datasheet, Photo Brand: Thermal Protector
Mounting Feature: Back Or Front Of Panel Size / Dimension: 18.5*7.5*3.8mm
Switch Function: ON-OFF Current Rating (Amps): 5A-10A
Voltage Rating - AC: 250V Voltage Rating - DC: 24V
Voltage: 24 ~ 240V Electrical Rating: 250v 5A~16A
Action Temperature Range: 40~150 Centigrade Life Cycle: 10000times
Size: 18.5*7.5*3.8mm Contact Type: Normally Closed Type
Switch Type: Temperature Switch Port: Any Port Form SHENZHEN
Highlight:

250v 10a ksd9700 thermostat

,

250v 10a ksd9700 temperature switch

,

250v 10a ksd9700 thermal switch

KW9700 Temperature Switch 250V10A KSD9700 Thermostat Auto Reset Thermal Fuse
BW Series Thermostat Principle and Structure
KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size 0

BW series universal and enhanced protectors with large metal casing consist of:

  • Thermal conductive metal casing
  • Bimetallic parts welded with silver alloy contact point
  • Conductive bracket
  • Insulation fixation stand
  • Fixed contact strip
  • Heat resistance cable

During abnormal operation, when environmental temperature increases to the set value, the bimetallic parts perform quick action to open the contact point and disconnect the circuit. When cooled to safe operating temperature, the contact point automatically closes to restore normal operation.

BW Series Thermal Protector Specifications
Switch type: Normally closed, normally opened
Operating Voltage/Current: AC250V/5A; AC125V/8A
Operating Temperature: 40~150℃ (increments of 5°C)
Standard Tolerance: ±3°C/±5°C/±7°C
Reset temperature: Operating temperature decrease by 15-45°C
Contact Closure resistance: ≤50mΩ
Insulation resistance: ≥100mΩ
Electric strength: AC1500V/1min (no breakdown or flashover)
Service life: 10,000 cycles
BW Series Temperature Protector Applications

Ideal for use in:

  • Rechargeable batteries
  • Ballasts
  • Massagers
  • Motors
  • Transformers
  • Electric tools
  • Heating appliances
  • Instruments
Temperature Specifications
Code Open Temperature Reset Temperature Code Open Temperature Reset Temperature
04545±4.5℃≥33℃105105±5℃75±15℃
05050±5℃≥35℃110110±5℃75±15℃
05555±5℃42±6℃115115±5℃80±15℃
06060±5℃45±8℃120120±5℃85±15℃
06565±5℃48±10℃125125±5℃85±15℃
07070±5℃50±12℃130130±5℃90±15℃
07575±5℃53±14℃135135±5℃95±15℃
08080±5℃55±15℃140140±5℃100±15℃
08585±5℃60±15℃145145±5℃100±15℃
09090±5℃65±15℃150150±5℃105±15℃
09595±5℃70±15℃155155±5℃110±15℃
100100±5℃70±15℃
KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size 1 KW9700 Auto Reset Temperature Switch 250V10A Thermostat with 40~150℃ Range and 18.5*7.5*3.8mm Size 2
