17AM035A5 250V 10A Thermostat Temperature Switch with 50-150℃ Range Bimetallic Strip for Motor Applications

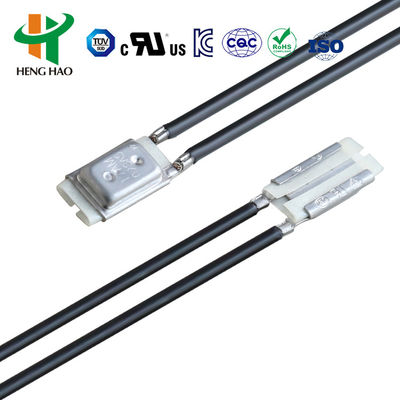

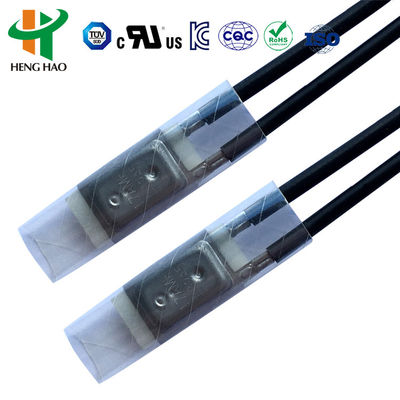

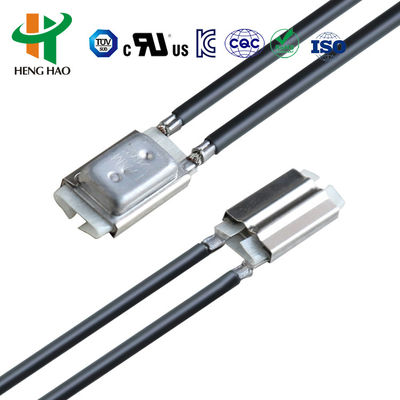

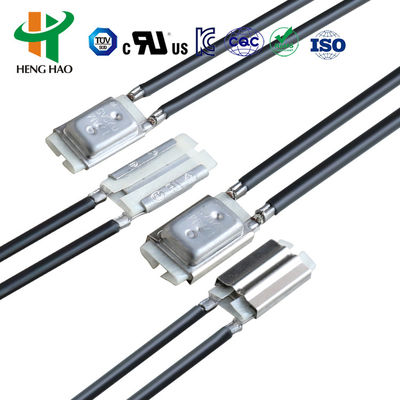

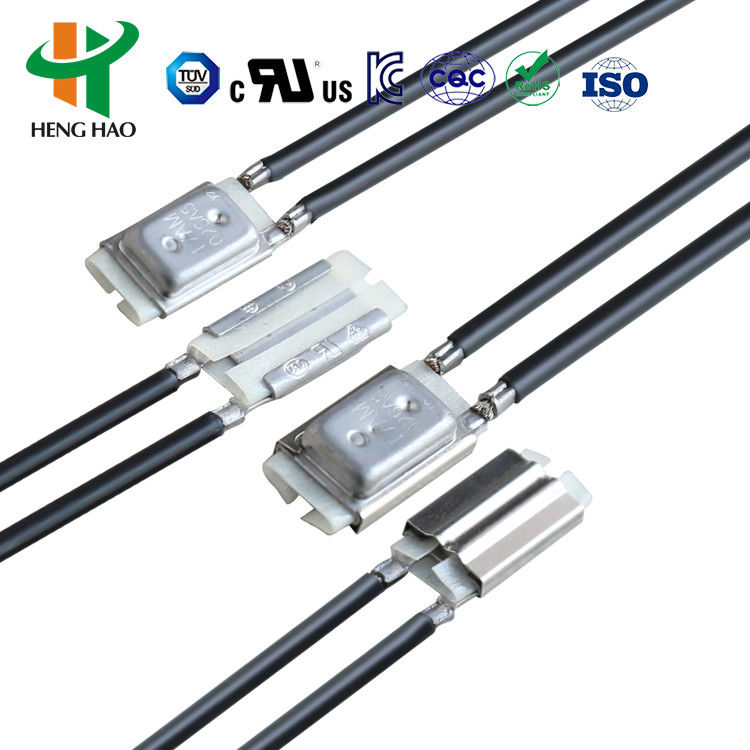

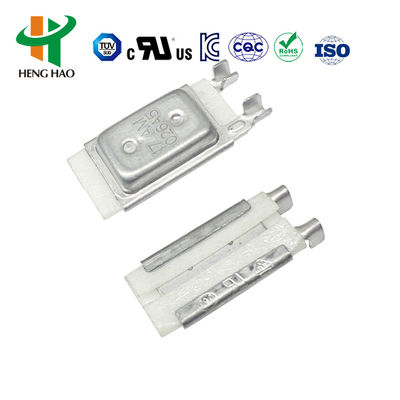

The 17AM is an excess-current thermal protector with compact design, featuring quick and accurate action. We can rivet different types of leads according to customers' requirements.

17AM XXX A/B 5 A,B,C,D...Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A/B): A: Terminals in same direction / B: Terminals in opposite direction
(5): OFF Temperature Tolerance Code
(A,B,C,D...Z): Different types of connecting wire

The 17AM thermal protector is suitable for various motors, fluorescent lamp commutators, transformers, laminators, lamps and lighting, cover sealing machines, and various household appliances.

Temperature sensing components consist of bimetallic strip. When temperature reaches the action range, it will jump quickly and disconnect. The contact point cannot reset until the circuit is reconnected by pushing the reset button when temperature declines to a fixed point.
