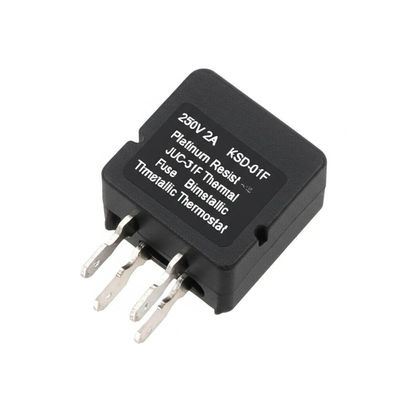

250V 2A KSD-01F Platinum Resisto JUC-31F Thermal Fuse Bimetallic Thermostat

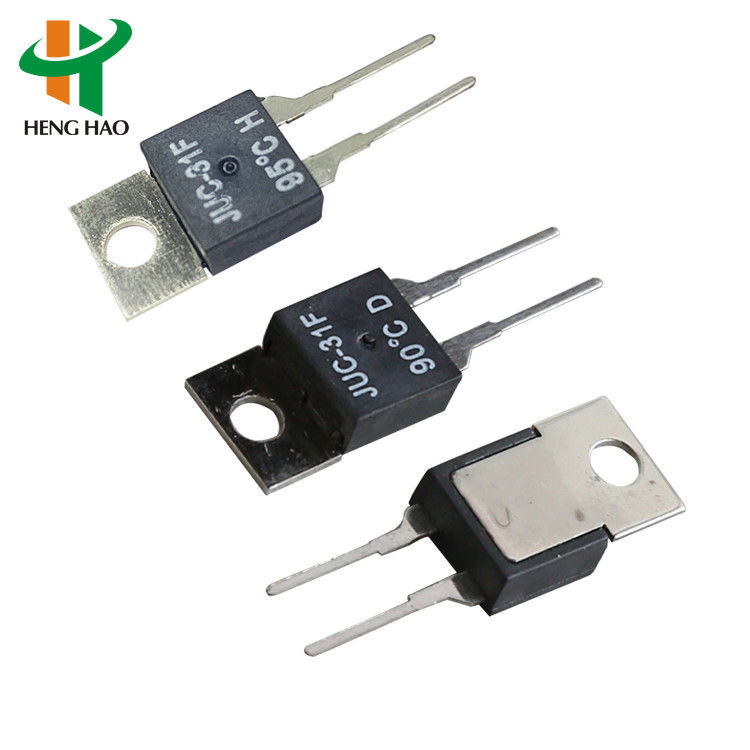

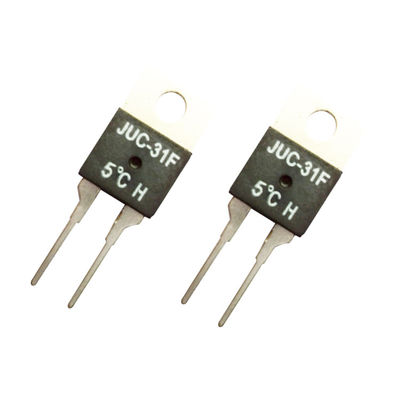

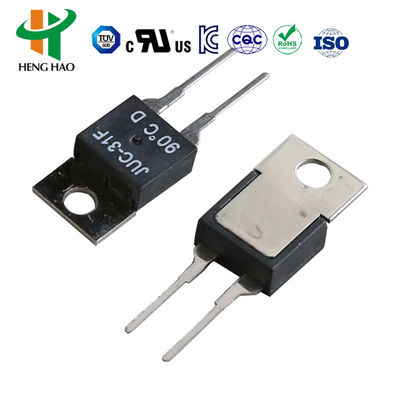

JUC-31F Thermostat Principle and Structure
This product is a touch-type plastic snap temperature thermostat sensor. It adopts the international TO220/Y220 standard package, featuring high reliability, sensitive and accurate operation, compact size, lightweight design, and easy installation. Ideal for PCB circuit boards, heat equipment, and power device applications.
JUC-31F Thermal Protector Specifications
- Contact load: AC 120V 1A; DC48V 1A; AC 220V 1.5A/3A; DC 24V 1.5A/3A
- Contact type: ID (closed) H (open)
- Overheating temperature: 250°C
- Contact resistance: less than 50mΩ
- Insulation resistance: more than 100 mΩ
- Dielectric withstand voltage: more than 1500V
- Product life: more than 10,000 cycles
- Weight: 1.7 g
- Action temperature deviations: ±5°C
| Operating temperature/°C |
Recovery temperature/°C |
Error |
Testing way |
| 0~99 |
5~35 |
±3°C |
1°C/min |
| 100~130 |
7~40 |
±5°C |
1°C/min |
JUC-31F Minimum Temperature Protector Applications
The JUC-31F thermostat is suitable for electric equipment, electric products, household appliances, temperature control protection, thermal overload protection in circuit boards, communication power supplies, switching power supplies, UPS power supplies, medical power supplies, fire power, module power supplies, audio amplifier equipment, various types of rechargeable devices, rectifiers, inverters, welding equipment, aerospace instrumentation electronic equipment, automation equipment, military, and commercial product temperature control or temperature protection.
Product has UL, CQC, VDE and RoHS certification approval. Thermostat, thermal protector supplier, thermal protector, thermostat supplier, thermostat manufacturer.
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector
17AMH Thermostat Principle and Structure
17AM is an excess-current thermal protector with compact design and quick, accurate action. We can rivet different types of leads according to customers' requirements.
17AM Thermal Protector Specifications
- Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
- Contact life cycles: AC-125V 15A, AC-250V 10A more than 10,000 cycles; AC-125V 5A more than 100,000 cycles
- Operating temperature range: 50-180°C
- Temperature tolerance: ±2°C±3°C±5°C
- Reset temperature: 10~45 degrees in off temperature decline
- Working times: Over 10,000 times
Code system: 17AM XXX A/B 5 A,B,C,D...Z
(17AMH): The number of product series
(XXX): Trip off temperature in °C Code
(A/B): A: Terminals in the same direction / B: Terminals in the opposite direction
(5): OFF Temperature Tolerance Code
(A,B,C,D...Z): Different type of connecting wire
