KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

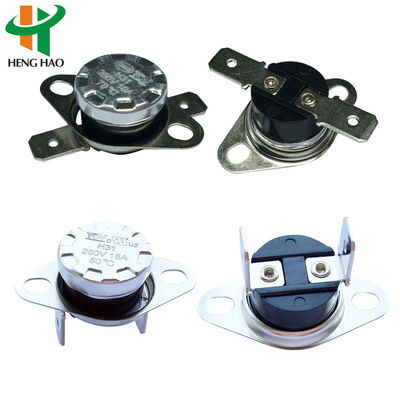

KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

KSD301 thermostat temperature controller

,

KSD302 thermostat temperature controller

,

KSD303 thermostat temperature controller

KSD301 KSD302 KSD303 KSD304 KSD301-V Thermostat Temperature Controller
The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD301 Bimetal Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open

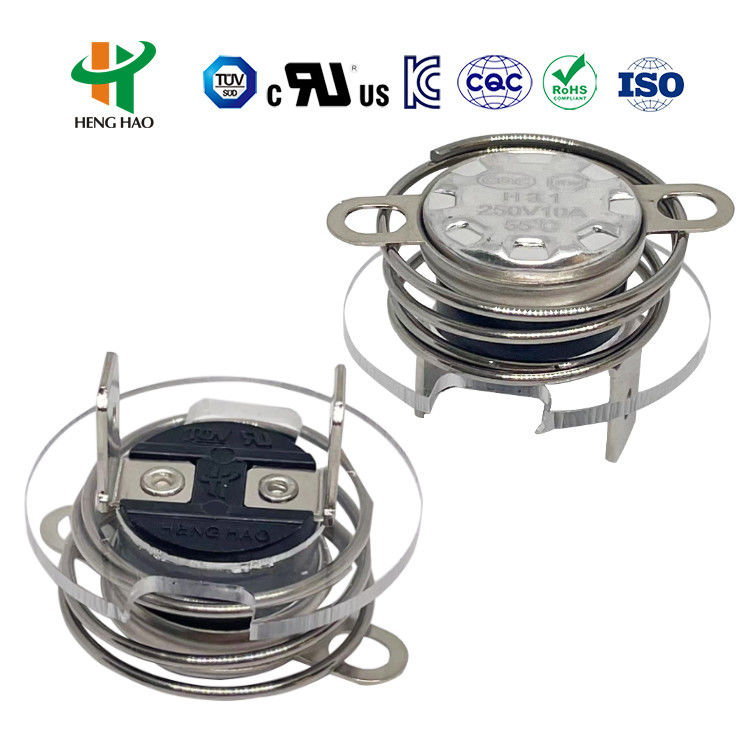

Mounting bracket Two kinds: movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Auto Reset vs Manual Reset Types

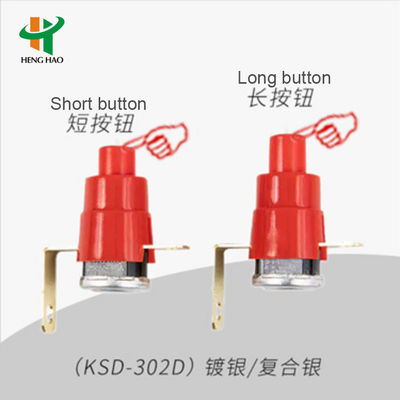

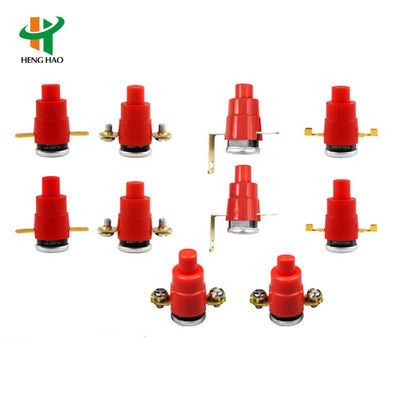

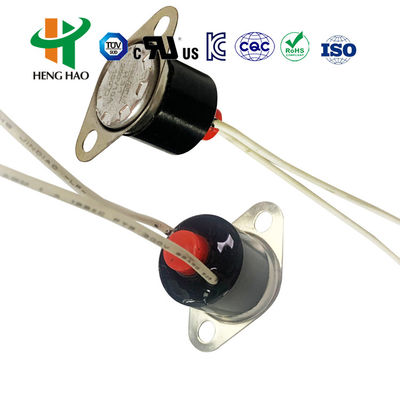

Manual Reset Type:
Uses bimetallic strip temperature sensing. Requires manual reset button press after temperature drops ~20°C from action point (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type:
Automatically resets when temperature drops to specified point without manual intervention.
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, toasters, laminators, electric water pots, steam guns, steam irons, warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom temperature settings available according to client requirements
This product has UL, CQC, TUV and RoHS certification approval.
