9700K KSD9700 KW9700 Thermostat Thermal Fuse with 0-250℃ Range Bakelite Case and Normally Closed Contact

Large Image : 9700K KSD9700 KW9700 Thermostat Thermal Fuse with 0-250℃ Range Bakelite Case and Normally Closed Contact

Product Details:

Place of Origin:	china
Brand Name:	HENGHAO
Certification:	ul tuv cqc kc
Model Number:	ksd9700

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD 0.2~0.5PCS
Packaging Details:	2000PCS/CARTON
Delivery Time:	10~15WORKDAYS
Payment Terms:	T/T
Supply Ability:	100000000PCS PER MONTH

Contact Now

9700K KSD9700 KW9700 Thermostat Thermal Fuse with 0-250℃ Range Bakelite Case and Normally Closed Contact

Description

Life Cycle:	100000 Cycles	Voltage & Current:	250V 16A
Contact Type:	Normally Closed Or Normally Open	Switch Type:	Auto Reset Or Manual Reset
Temperature Range:	0-250℃	Case:	Bakelite
Highlight:	9700K thermostat thermal fuse , KSD9700 thermostat thermal fuse , KW9700 thermostat thermal fuse

9700K KSD9700 KW9700 Thermostat Thermal Fuse

The BW & BH series thermal fuses provide reliable protection against over-current and over-temperature conditions. These sealed units feature small internal resistance, operate silently, and reset automatically. The temperature-sensitive bimetal components respond to abnormal conditions by changing state to either cut off or restore the circuit.

BH Series Thermostat Specifications

Electrical Rating	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature	(30~150)±5°C; 5°C a step
Reset temperature	2/3 of the action temperature with tolerance of ±15°C. Custom reset temperatures available.
Life times	10000 cycles
Size	L15mm W7.1mm H3.8mm
Lead wire	#22 3266, end half tripping, length is 70mm (customizable)
Certifications	UL File no: E487478 CQC certificate no: CQC16002142880 TUV certificate no: B160592241002

BH Series Dimensions

Model	Case	Dimensions (mm)	Voltage & Current	Lead Wire
H20	Plastic	18.5 × 8 × 4	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 10A	#20 3135, end 5mm half tripping, length 70mm (customizable)
H21	Metal	18.5 × 7.3 × 3.8	AC250V 20A	#16 3135

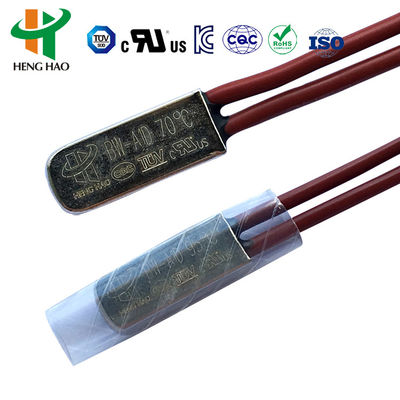

BH-A1D	Metal	15 × 6.6 × 3.2	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V	#20 3135, #22 3266, #22 3135, end 5mm half tripping, length 70mm (customizable)

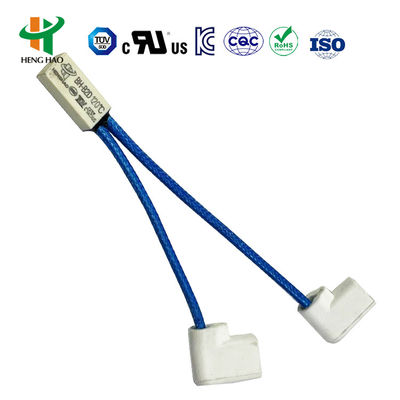

BH-B2D	Plastic	15 × 7.1 × 3.8
BH-TB02B-B8D	Plastic	15 × 5.2 × 2.4	DC-12V max 4A; DC-24V max 3A; AC-125V max 3A; AC-250V max 2A	3266-AWG24#, 3135-AWG24# or nickel strip, length 70mm (customizable)

Temperature Codes

Code	Temperature	Code	Temperature
30	30℃	100	100℃
35	35℃	105	105℃
40	40℃	110	110℃
45	45℃	115	115℃
50	50℃	120	120℃
55	55℃	125	125℃
60	60℃	130	130℃
70	70℃	135	135℃
75	75℃	140	140℃
80	80℃	145	145℃
85	85℃	150	150℃
90	90℃

Applications

BH series thermal protectors serve as effective security devices for:

1.5 horsepower motors
Lighting devices
Inverter welding machines
Switch power supplies
Rechargeable battery packs
Fluorescent lamp ballasts
Portable power tools
Various electric appliances

Enforced types (3.5MPa pressure rating) are suitable for plastic-coated motor installations.

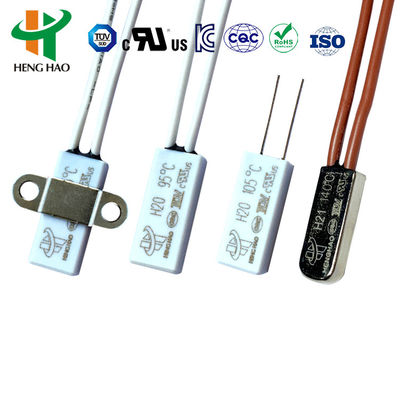

H20/H21 Series Specifications

Electrical Rating	DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A
Open temperature	(30~150)±5°C; 5°C a step
Reset temperature	2/3 of the action temperature with tolerance of ±15°C
Life times	10000 cycles
Contact Closure resistance	≤50mΩ
Insulation resistance	≥100mΩ
Electric strength	AC1500V/1min (no breakdown or flashover)

Certifications

This product holds UL, CQC, TUV, and RoHS certifications.
