17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles

17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles
17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles
17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles

Large Image :  17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles

Product Details:
Place of Origin: CHINA
Brand Name: HENG HAO
Certification: UL TUV CQC
Model Number: 17AM
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD
Packaging Details: 5000pcs per carton
Delivery Time: 10WORKDAYS
Payment Terms: TT FOB SZ,T/T
Supply Ability: 10000000pcs per month
Contact Now

17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles

Description
Rating And Currents:: AC-125V 15A; AC-250V 10A, DC-16V 20A Life Time: 10000 Times
Use For: 17AM Thermal Protector Is Applicable To All Kinds Of Motor, Commentator For Fluorescent Lamp, Transformer, Laminator, Lamps And Lighting, Transformers, Cover Sealing Machine & Various Of Household Appliances Switch Type: Auto Reset Normally Closed Type
Name: Thermal Overload Protection Switch Operating Temperature Range: 50-180°C
Highlight:

17AM023A5 thermostat temperature controller

,

17AM024A5 thermostat temperature controller

,

17AM025A5 thermostat temperature controller

17AM Series Thermostat Temperature Controller

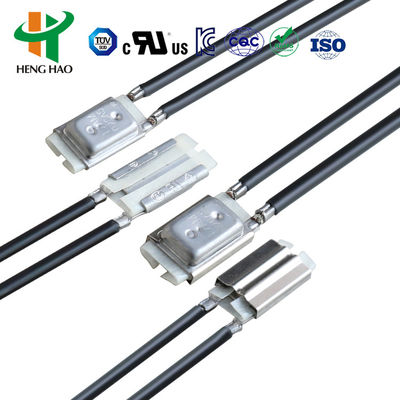

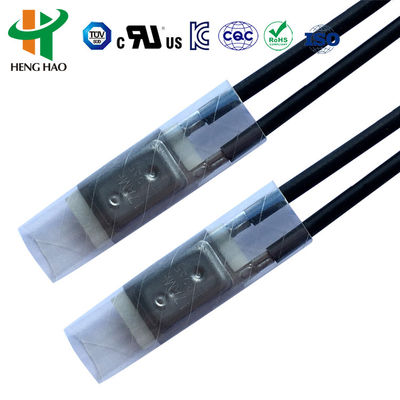

17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 0 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 1
The 17AM series is an excess-current thermal protector featuring compact design, quick response, and precise operation. We offer customization of lead types to meet specific customer requirements.
Product Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles:
    • AC-125V 15A, AC-250V 10A: >10,000 cycles
    • AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Durability: >10,000 working cycles
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
  • 17AMH: Product series number
  • XXX: Trip temperature in °C code
  • A/B: Terminal orientation (A: same direction, B: opposite direction)
  • 5: OFF temperature tolerance code
  • A-Z: Connecting wire type
Trip Temperature Code Reference
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
The thermal protection switch is typically installed on A/C compressor housings to prevent compressor damage from overheating caused by internal friction. It monitors compressor case temperature and interrupts the electrical circuit when a predetermined temperature threshold is reached.
Protection Mechanism
The thermal protection switch safeguards against overload conditions. The protection mechanism consists of a bra shaft within a brass tube (commonly called "solder pot relays"), where motor current passes through a small heater winding.
Technical Drawings

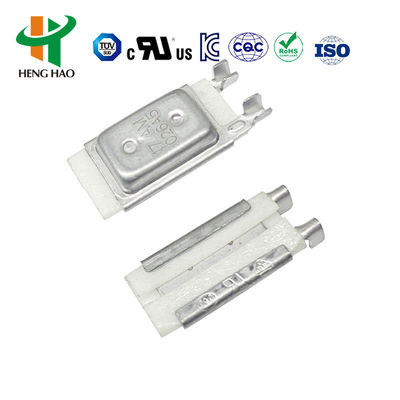

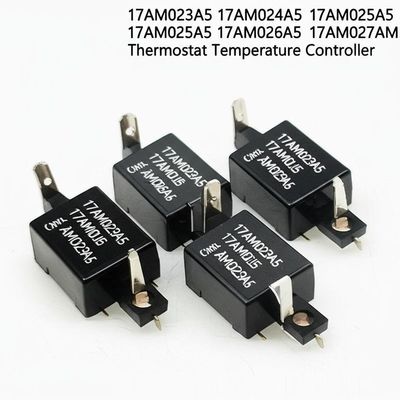

17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 2 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 3 17AM Series Thermal Protector with 50-180°C Operating Temperature DC-16V 20A and 10000 Life Cycles 4
Applications
Suitable for various motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.
Also known as: 17AMH Thermal Protector, 17AMH Thermostat, 17AM Temperature Protector, KLIXON 17AM Replacement
