Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range

Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range
Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range
Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range

Large Image :  Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: KSD201
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.15
Packaging Details: 2100PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 100000PCS PER MONTH
Contact Now

Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

ksd301 auto reset thermal fuse

,

normally open auto reset thermal fuse

,

ksd301 250v 16a price

Normally Open KSD301 250V 16A Thermostat Auto Reset Thermal Fuse Temperature Controller

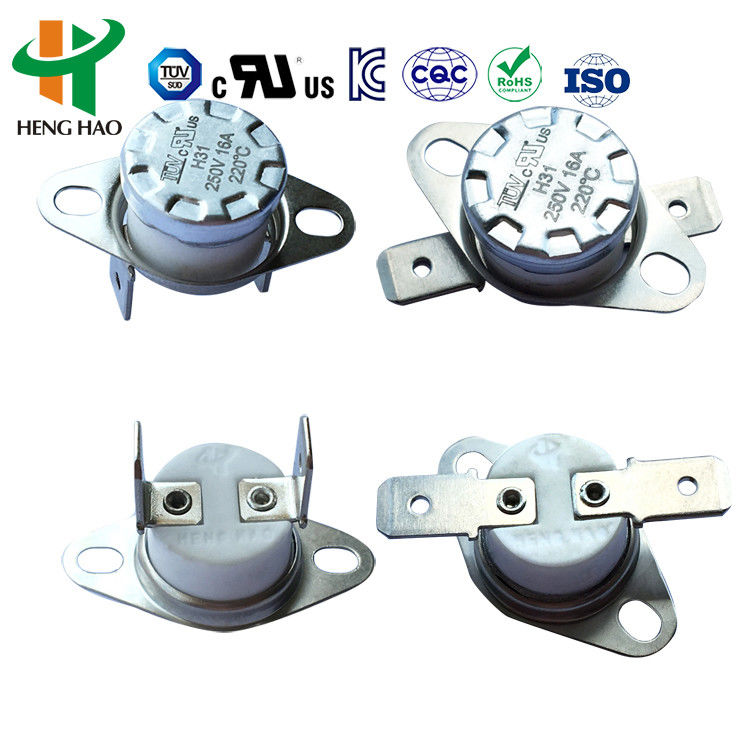

The KSD series thermostat operates on the principle of bimetal discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key characteristics include fixed working temperatures, reliable snap action, minimal flashover, long service life, and reduced radio interference.
Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type
  • 187 series of 4.8*0.5mm and 4.8*0.8mm
  • 250 series of 6.3*0.8mm
  • Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic

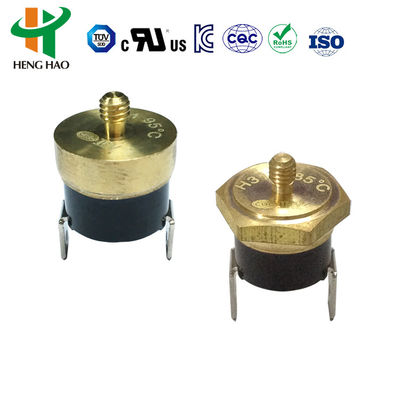

Temperature sensor face Aluminum cap or copper head
Auto Reset vs Manual Reset Types

Manual Reset Type: Uses bimetallic strip temperature sensing. When reaching action temperature, the circuit disconnects and requires manual reset via button press after temperature decreases by 20°C. Requires 4-6N force for reset.

Auto Reset Type: Uses bimetallic strip temperature sensing. Automatically resets and resumes operation when temperature decreases to specified point after disconnection.

Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
This product has UL, CQC, TUV and RoHS certification approval.
Normally Open KSD301 Thermostat 250V 16A Auto Reset Temperature Controller with 100000 Cycles and 0~250℃ Range 1
