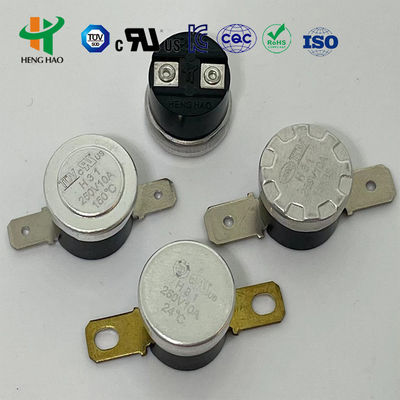

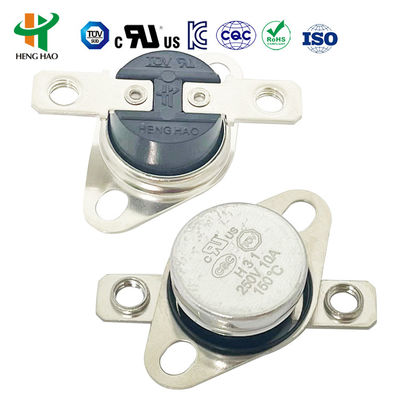

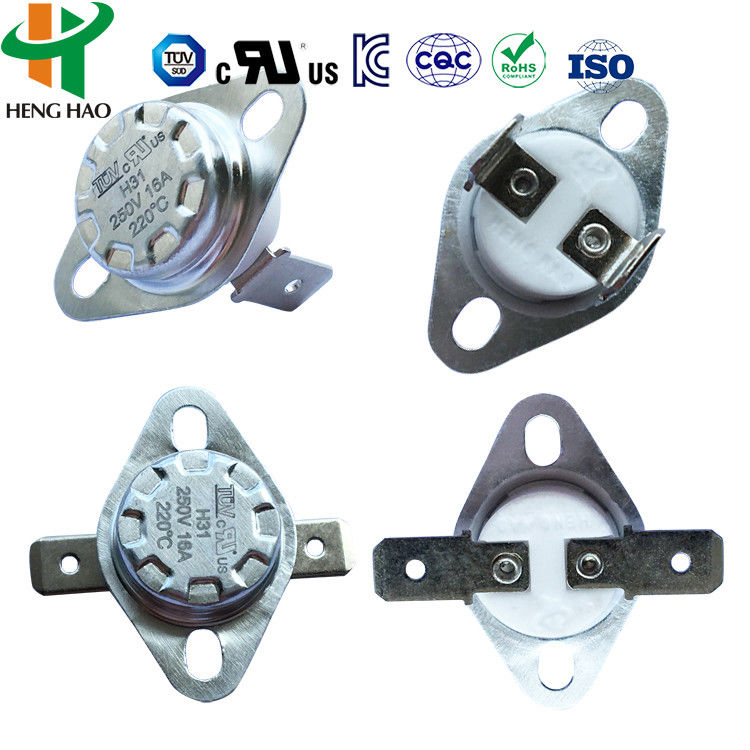

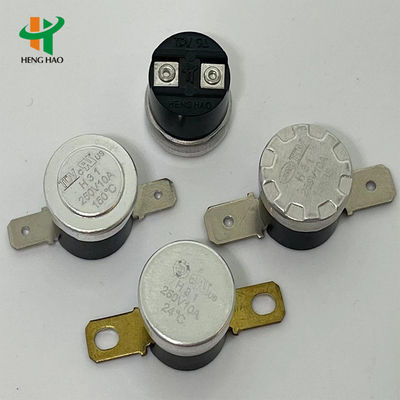

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Large Image :  Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: H31
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.3~0.5PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15 WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Temperature Range: 0-250℃ Case: Metal
Highlight:

Bimetallic Thermostat

,

Temperature Controller Thermostat

,

Bimetallic Thermostat Temperature Protector

Temperature Controller Thermostat Bimetallic Thermostat Temperature Protector
The KSD series thermostat operates on the principle of bimetallic discs that snap into action with temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperatures, reliable snap action, minimal flashover, extended lifespan, and reduced radio interference.
KSD304 Temperature Controller Specifications
  • Voltage & Current: AC 125V max 15A; AC250V 5A 10A 15A max 16A
  • Action Temperature: 0~250℃
  • Recovery/Action Temperature Difference: 0 to 25 degrees (customizable)
  • Temperature Deviation: ±3/±5/±10 degree (customizable)
  • Circuit Resistance: ≤50mΩ (Initial value)
  • Insulation Resistance: AC50Hz 1500V/min, no breakdown (Normal State)
  • Life Cycle: ≥100,000 operations
  • Contact Type: Normally closed or Normally open
  • Mounting Options: Movable or immovable bracket
  • Terminal Types:
    • 187 series: 4.8*0.5mm and 4.8*0.8mm
    • 250 series: 6.3*0.8mm
    • Bending angle: 0~90°C optional
  • Housing: Plastic or ceramic
  • Temperature Sensor Face: Aluminum cap or copper head
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 0
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type: Uses bimetallic strip that disconnects at action temperature. Requires manual button press to reset after temperature drops ~20°C (4-6N force recommended). Requires minimum 20.4mm clearance between reset button and cover.
Auto Reset Type: Automatically reconnects circuit when temperature drops to reset point without manual intervention.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
Custom temperature settings available per client request
This product holds UL, CQC, TUV and RoHS certifications.
Bimetallic Thermostat Temperature Controller with 100000 Cycles 250V 16A and 0-250℃ Range 1
